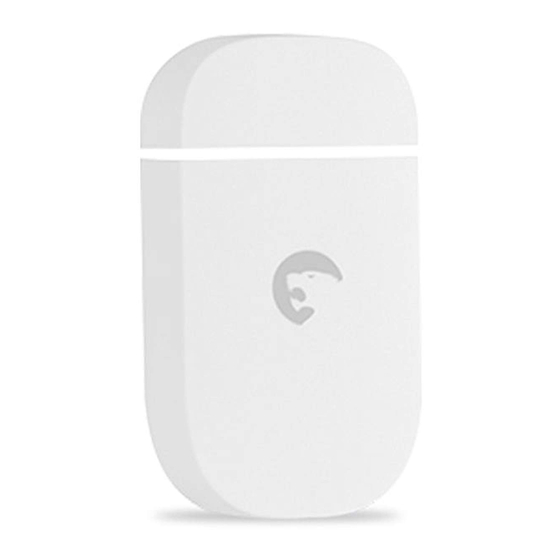

- Page 1 ES-D3B Wireless Door / Window Contact www.etiger.com Instrukcja pobrana ze sklepu www.ekocentrum24.pl...
- Page 2 Box Content 1 x Door / Window Contact 1 x User Manual Magnet Transmitter Images, illustrations and text are non-contractual. ETIGER and the ETIGER logo are registered trademarks and the property of ETIGER. Copyright © 2015 ETIGER. All rights reserved.
- Page 3 Installation Open the case and remove the battery activation strip. Mount the sensor on the door and the magnet on the door frame. Make sure the magnet is placed above of the transmitter. Mount the magnet max. 1cm away from the transmitter and secure the transmitter and magnet with double-sided tape or screws.
- Page 4 To check if the registration is complete, arm the system and separate the magnet from the transmitter again by opening the door or window on which it is installed. If the siren rings out, the registration is successful.
- Page 5 PCB Layout Tamper switch A23 12V Battery Jumpers for zone setup LED indicator Tamper switch: When the alarm system is armed, the tamper switch will trigger the alarm if the case is opened. Jumpers for Zone setup: The jumpers enable you to assign the detector to a specific zone.
- Page 6 Specifications Power Supply Housing material DC 12V ABS plastic (A23 12V battery x1) Operating conditions Static current Temperature: ≤30 uA -10°C ~ +55°C Relative Humidity: ≤80% Alarm current (non-condensing) ≤40 mA Transmitter dimensions Transmission distance 60 x 43 x 18 mm ≤...
- Page 7 Standards This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities.
- Page 8 This user manual is available in other languages at www.etiger.com/eu/support ETIGER EUROPE Rue de la Loi, 25, 7100 La Louvière, Belgium service@etiger.com...
