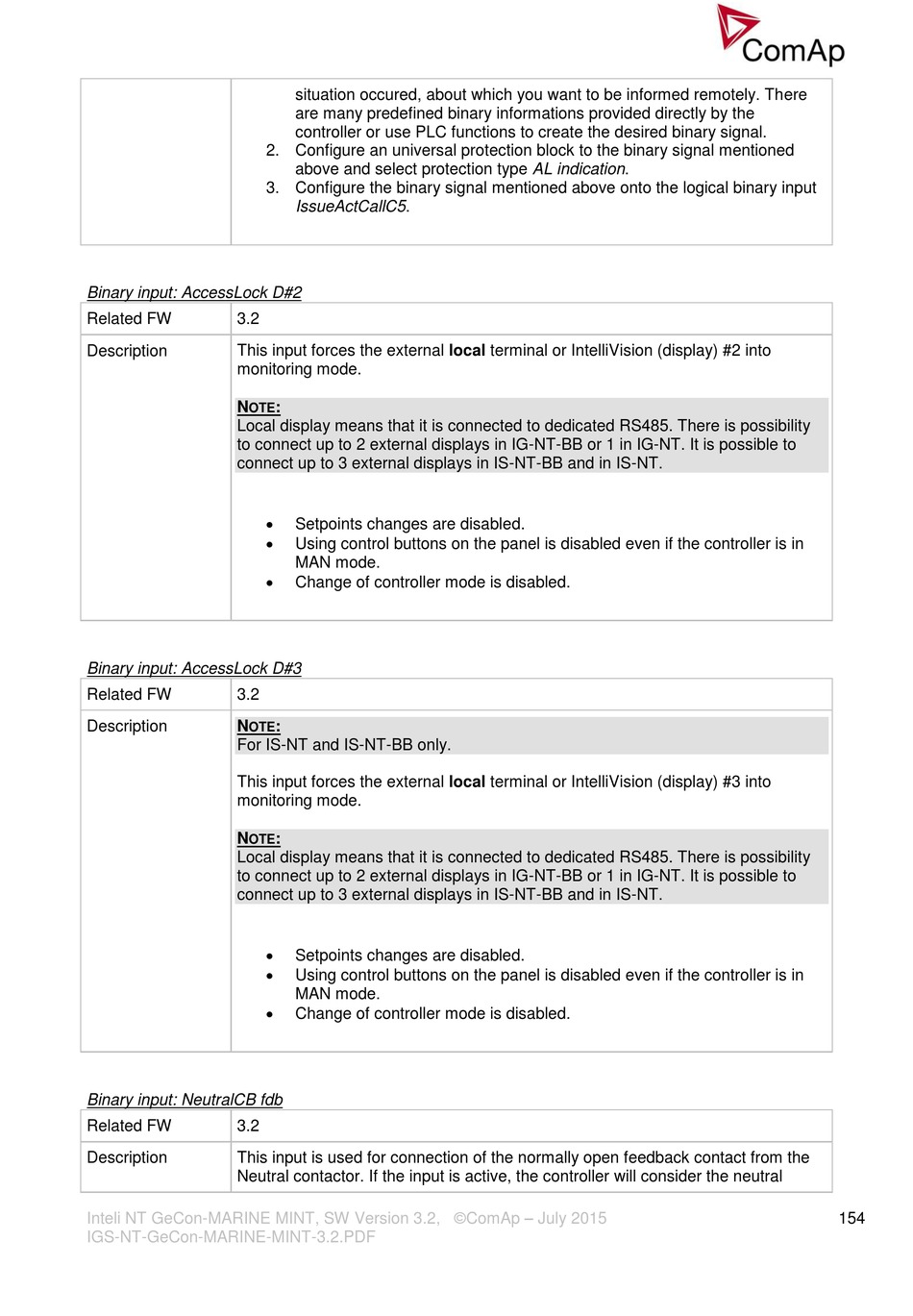

ComAp IG-NT GC Reference Manual page 154

Binary input: AccessLock D#2
Related FW 3.2
Description This input forces the external local terminal or IntelliVision (display) #2 into
monitoring mode.
N
OTE
Local display means that it is connected to dedicated RS485. There is possibility
to connect up to 2 external displays in IG-NT-BB or 1 in IG-NT. It is possible to
connect up to 3 external displays in IS-NT-BB and in IS-NT.
Binary input: AccessLock D#3
Related FW 3.2
Description N
OTE
For IS-NT and IS-NT-BB only.
This input forces the external local terminal or IntelliVision (display) #3 into
monitoring mode.
N
OTE
Local display means that it is connected to dedicated RS485. There is possibility
to connect up to 2 external displays in IG-NT-BB or 1 in IG-NT. It is possible to
connect up to 3 external displays in IS-NT-BB and in IS-NT.
Binary input: NeutralCB fdb
Related FW 3.2
Description This input is used for connection of the normally open feedback contact from the
Neutral contactor. If the input is active, the controller will consider the neutral
Inteli NT GeCon-MARINE MINT, SW Version 3.2, ©ComAp – July 2015
IGS-NT-GeCon-MARINE-MINT-3.2.PDF
situation occured, about which you want to be informed remotely. There
are many predefined binary informations provided directly by the
controller or use PLC functions to create the desired binary signal.
2. Configure an universal protection block to the binary signal mentioned
above and select protection type AL indication.
3. Configure the binary signal mentioned above onto the logical binary input
IssueActCallC5.
:

Setpoints changes are disabled.

Using control buttons on the panel is disabled even if the controller is in
MAN mode.

Change of controller mode is disabled.
:
:

Setpoints changes are disabled.

Using control buttons on the panel is disabled even if the controller is in
MAN mode.

Change of controller mode is disabled.
