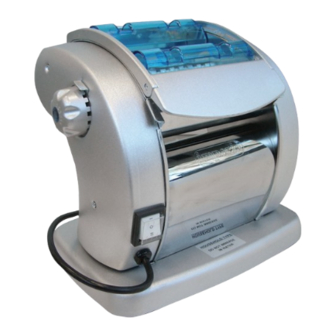

- Page 1 Pasta Sheeter Model PM-IT-0146 Item 13234 Instruction Manual Revised - 04/07/2017 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model PM-IT-0146 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 6 Operation ----------------------------------------------------------------------------------------- 6 - 7 Maintenance ----------------------------------------------------------------------------------------- 8 Troubleshooting ------------------------------------------------------------------------------------- 8 Illustrated Drawings -------------------------------------------------------------------------- 9 - 10... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. -
Page 5: Electrical Connection
1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment. -
Page 6: Technical Specifications
Safety and Warranty improper use. Please see www.omcan.com/warranty.html for complete info. WARNING: The packaging components (cardboard, polyethylene, and others) are classified as normal solid urban waste and can therefore be disposed of without difficulty. In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. -
Page 7: Operation
Operation 6. Turn the adjustment knob to position 6 (max roller opening) and insert part of the previously prepared dough between the stretching rollers. This will obtain a first shaping of the sheet. Fold it in two and pass it through the rollers again to make it homogeneous. -
Page 8: Maintenance
Lower the safety guard. If none of the above inconveniences are detected, contact your Authorised Dealer. REFERENCE Item Number Model Number Description Manufacturer Model Number Pasta Sheeter 6” / 146mm Roller Width 13234 PM-IT-0146 RM720 2mm Thick 0.1 HP / 85W 120V/60/1 cULus... -
Page 9: Illustrated Drawings
Illustrated Drawings Cutter rollers Cutter rollers Fig. 2 Fig. 1 Fig. 2 Fig. 1 Safety guard Safety guard Wooden rollers Handle Wooden rollers Handle Retainer fins Retainer fins Cutter rollers Cutter rollers Track for “rigatelli” Track for “rigatelli” Track for “cavatelli” Handle attachment Track for “cavatelli”... - Page 10 Track for “cavatelli” Handle attachment Track for “Sardinian gnocchi” Handle Illustrated Drawings Fig. 3 Fig. 5 Hopper rollers Handle Filling Sloped hopper surfaces Ravioli making rollers 1 - 2 Fig. 4...
-
Page 11: Parts Breakdown
Parts Breakdown Model PM-IT-0146 13234 Picture Item No. Description Picture Item No. Description 78432 Knob Kit for RM720 78444 Base Kit for RM720 Right Side Cover Kit for 78433 78445 Feet Kit for RM720 RM720 78434 Apron Kit for RM720... -
Page 12: Electrical Schematics
Electrical Schematics Model PM-IT-0146 13234... -
Page 13: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... -
Page 14: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... -
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
