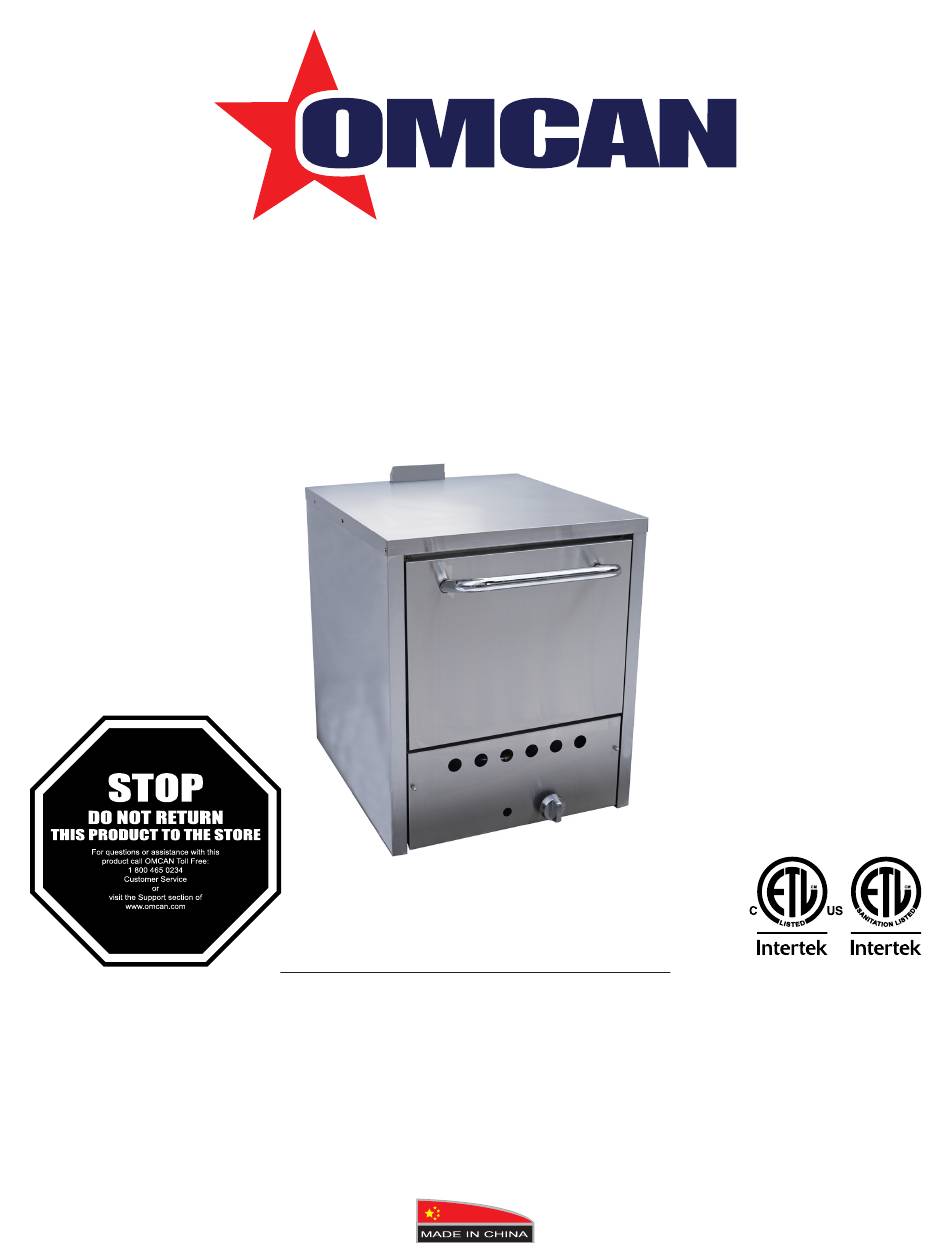

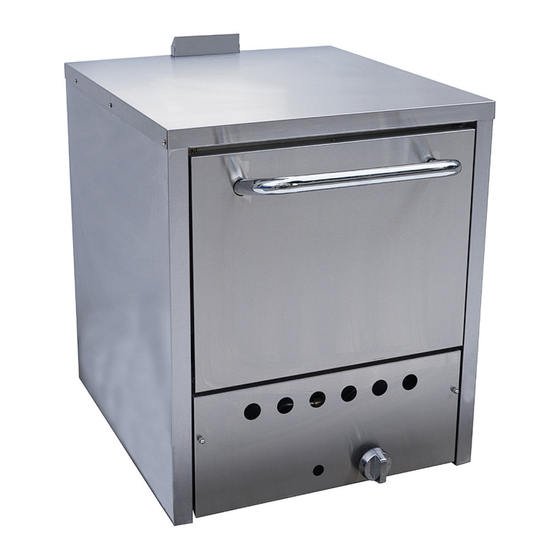

  • Page 1 Pizza Ovens Models PE-CN-24P19, 36P26, 36P31 Items 48080, 48081, 48082 Instruction Manual Revised - 09/17/2024 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
  • Page 2: Table Of Contents

    Table of Contents Model PE-CN-24P19 / Model PE-CN-36P26 / Model PE-CN-36P31 Section Page General Information -------------------------------------------------------------------- 3 - 4 Safety and Warranty ------------------------------------------------------------------- 4 - 7 Technical Specifications ----------------------------------------------------------------- 7 Installation -------------------------------------------------------------------------------- 7 - 12 Operation --------------------------------------------------------------------------------------- 12 Maintenance --------------------------------------------------------------------------- 12 - 14...
  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.
  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5: For Your Safety

    Safety and Warranty FOR YOUR SAFETY Do not store gasoline or other flammable liquids in the vicinity of this or any other appliance. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment.
  • Page 6: Safety Instructions In Case Of Malfunction

    1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.
  • Page 7: Technical Specifications

    Safety and Warranty according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications Model PE-CN-24P19 PE-CN-36P26 PE-CN-36P31 Item Number 48080 48081 48082 Gas Type Natural Gas 19.6” x 19.5” x 14.2” 19.6” x 26.5” x 14.2”...
  • Page 8: Exhausting Fumes

    Installation defective installation. In such cases, the warranty shall be null and void. The appliance should be installed, serviced, connected to the gas system, and started up only by an authorized installer, who must comply with the safety regulations in force in the place where the appliance is being installed.
  • Page 9: Transporting The Appliance

    Installation TRANSPORTING THE APPLIANCE The best way to transport this appliance is inside its packing to protect it from outside damage. After the appliance has been unpacked, use wooden spacers if you should need to lift it up. UNPACKING THE APPLIANCE Prior to installation, remove all packaging materials from the appliance.
  • Page 10: Pilot Flame Adjustment

    Installation conversion. Take off the front panel to expose the pilot valve and control valve. CHANGE OF THE MAIN BURNER ORIFICE Loosen and remove the brass orifice located on the end of the burner with a wrench. Replace with the new orifice from the conversion kit, first applying a small amount of jointing paste to the thread on the end of the nozzle holder, this will ensure a good gas tight seal.
  • Page 11: Burner Operation

    Installation REGULATOR ADJUSTMENT To operate with LPG gas, the regulator must be changed to operate at 10”WC. (see above illustration) To do this, remove the converter cap and pin from the regulator, remove the pin and invert then reinstall in the cap.
  • Page 12: Operation

    Installation DERATING AT ALTITUDES ABOVE 2000 FT (610M) Ratings of gas utilization equipment are based on sea level operation and shall not be changed for operation at elevations up to 2000 ft (610m). For operation at elevations above 2000 ft (610m), equipment ratings shall be reduced at the rate of 4 percent for each 1000 ft (300m) above sea level before selecting appropriately sized equipment.
  • Page 13: Routine Cleaning

    Maintenance GENERAL INFORMATION The main causes for stainless steel wear or corrosion are: • Using abrasive or acid detergents, especially chlorine-based products such as hydrochloric acid or sodium hypochlorite (bleach). Therefore, before buying a detergent product, make sure it does not corrode stainless steel.
  • Page 14 Maintenance maintenance operations should be performed at least once a year: CHECKING FOR PROPER OPERATION OF ALL CONTROL AND SAFETY DEVICES, CHECKING BURNER COMBUSTION, I.E.: 1. Ignition. 2. Combustion safety. 3. Checking for proper operation throughout the entire HIGH-to-LOW control range. We recommend signing a service agreement providing for at least one check-up a year.
  • Page 15: Parts Breakdown

    Parts Breakdown Model PE-CN-24P19 48080 Model PE-CN-36P26 48081 Model PE-CN-36P31 48082...
  • Page 16 Parts Breakdown Model PE-CN-24P19 48080 Item Item Item Description Position Description Position Description Position AP777 Body Assembly for 48080 AP786 Baking Stone for 48080 AP793 Pilot Gas Inlet Pipe for 48080 AP778 Door Handle for 48080 AP787 Sensor Fixation Plate for 48080...
  • Page 17 Parts Breakdown Model PE-CN-36P26 48081 Item Item Item Description Position Description Position Description Position Baking Stone (2) and Supporting Rack AP798 Body Assembly for 48081 AP802 AP793 Pilot Gas Inlet Pipe for 48081 Set for 48081 AP799 Door Handle for 48081 AP787 Sensor Fixation Plate for 48081 AP794...
  • Page 18 Parts Breakdown Model PE-CN-36P31 48082 Item Item Item Description Position Description Position Description Position Baking Stone (2) and Supporting Rack AP803 Body Assembly for 48082 AP807 AP793 Pilot Gas Inlet Pipe for 48082 Set for 48082 AP804 Door Handle for 48082 AP787 Sensor Fixation Plate for 48082 AP794...
  • Page 19: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 20 à plus de 6500 produits provenant du monde entier. Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones...
