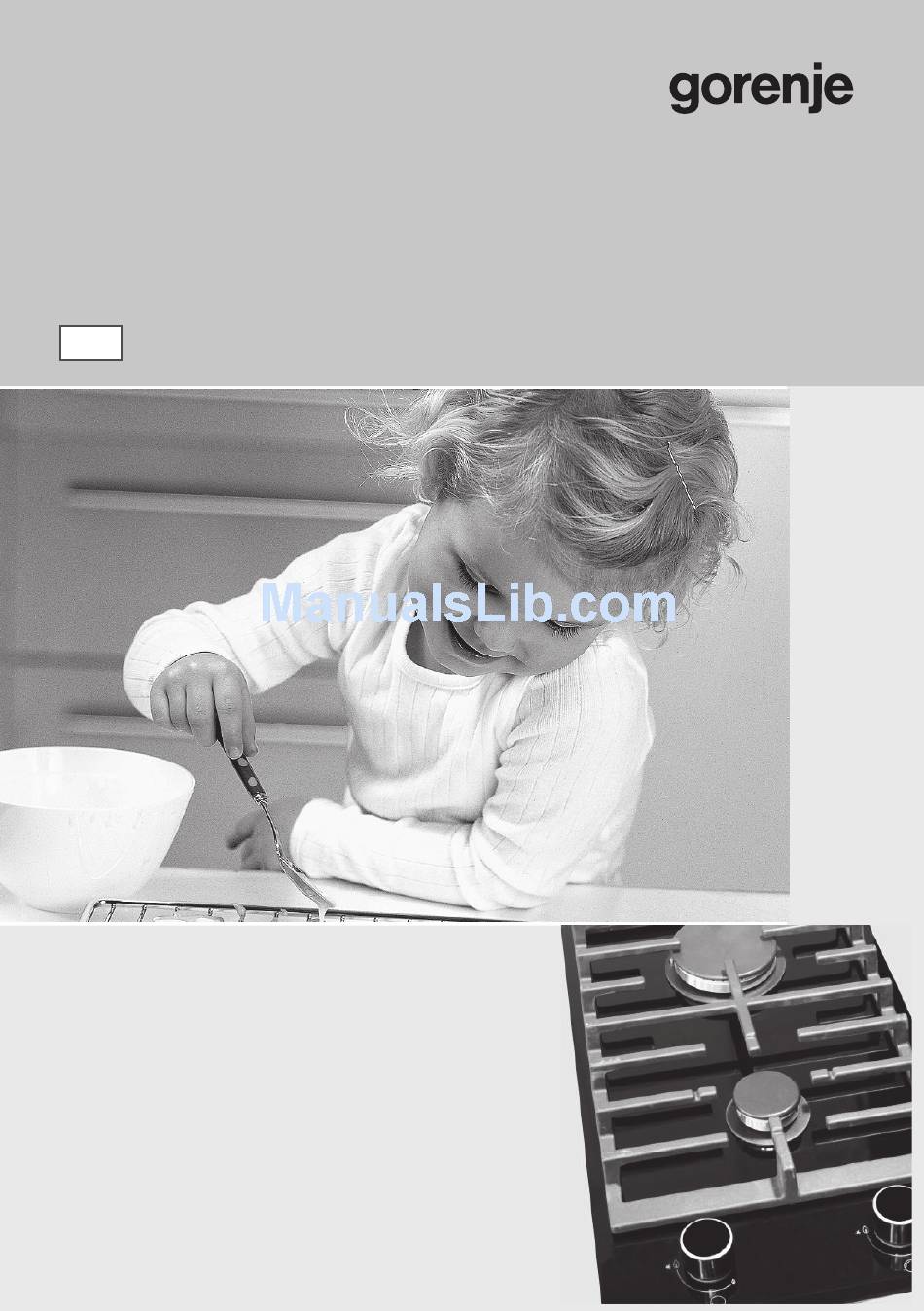

- Page 1 Instructions for use, mounting and connection Integrated gas hob 4106... 4107...
-
Page 2: Table Of Contents
Integrated gas hob Dear Buyer, This electric integrated gas cooker is manufactured for household use. Our appliances are packed in environmentally friendly materials that may be recycled, deposited or destroyed without any hazard to the environment. Such packaging materials are also labelled accordingly. -
Page 3: Safety Precautions
Safety precautions • This appliance can be used by children aged from 8 years and above and persons with educed physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 small children in the vicinity of the cooker and warn them about the danger of burns. • Hot grease is highly infl ammable, so pay extra attention when preparing food with grease or oil. Frying in fat or oil (chips) may be carried out only under constant surveillance. •...
-
Page 5: Description Of The Appliance
Description of the appliance Hob surface is made of ceramic glass and is fi tted with gas burners and control buttons (depending upon the model). 1. Rear burner – large (B) 2. Front burner – small (A1) 3. Double burner (Wok) 4. -
Page 6: Gas Burner Control
The location of grating 1. Cast iron cooking grating. 2. Centering – setting pin of the grating. The cast iron cooking grating is heated up during appliance operation and remains hot during some time even after extinction of the gas burners. Therefore be always careful (also at manipulation with the control knobs), for to prevent burning! The cooking grating at the burner can be loaded with... - Page 7 b) Double burner (wok) - certain models only 1. Burner cup WOK 2. Burner crown cap 3. Burner crown with burner cap support 4. Thermal probe (thermally protected burners only, only certain models) 5. Ignition plug 6. Nozzle 7. Nozzle Ignition and operation of Twin burner model: burners...
- Page 8 • If the ignition device is out of order (power failure or humidity), use a match or a lighter to ignite the gas. Keep the button pressed for approximately 10 seconds after ignition to stabilize the fl ame. • After that you can set the burning power between high and low position to suit your cooking requirements.
-
Page 9: Cleaning And Maintenance
Cleaning and maintenance The appliance should be cleaned with warm water, liquid detergent and soft cloth. Never use aggressive cleaners and sharp objects. Burned or dried food particles should be moistened with a wet cloth and softened with an appropriate cleansing agent. Stainless steel surfaces must be cleaned with special cleaners for stainless steel. - Page 10 Cleaning and Ceramic glass hob should be cleaned only when completely maintenance of ceramic- cooled down, preferably after each use, otherwise even the slightest glass hob stains remaining after cooking may burn into the hob surface with each following use. For regular maintenance of ceramic-glass hob use special cleansing agents, produced in such way to create protective fi...
-
Page 11: Troubleshooting Guide
Troubleshooting guide Repairs may be done by qualifi ed personnel only. Any unskilled attempt to repair the appliance is extremely dangerous. Before attempting any repairs disconnect the appliance from the mains by removing the fuse or unplugging the mains lead from the mains socket. -
Page 12: Installation Instructions
Installation instructions Caution! • To avoid any possible hazard, the appliance may be installed by qualifi ed personnel only. • The veneer or the cover of furniture, respectively, in which the appliance is built in, has to be prepared from materials with thermal endurance up to 100° C as minimum, for preventing the changing of color and shape because of insuffi... - Page 13 • Only ovens with cooling fan can be inserted below gas cooking hob. Prior inserting the oven, it is necessary to remove the rear kitchen element panel in the area of the oven opening. Equally, the front part of the element must have an opening of no less than 6 mm.
-
Page 14: Connecting The Cooktop To The Power Mains
Connecting the cooktop to the power mains • Connections may be carried out by a qualifi ed technician only. The earthing protection must comply with the standing regulations. • Connection terminals are revealed when the connection box cover is removed. •... - Page 15 Connection may be carried out by means of: • rubber coated connection cables, model H05 RR-F 3x1,5 with yellow-green earthing cable; • PVC insulated connection cables, model H05 VV-F 3x1,5 with yellow-green earthing cable; or any other suitable cables. SINGLE-PHASE CONNECTION 1.
-
Page 16: Gas Connection
Gas connection Safety precautions • This appliance shall be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance. • Prior to installation, ensure that the local distribution conditions (nature of gas and gas pressure) and the adjustment of the appliance are compatible. - Page 17 Gas connection joint A ISO7-1 R1/2 connection B Non-metal gasket of thickness 2 mm C Pipe extension for liquid gas After connection check proper functioning of burners. Gas must burn with clearly displayed blue-green fl ame hubs. If the fl ame is not stable, increase minimum power setting.
- Page 18 Setting elements To provide access to the setting elements: • Remove the cooktop grid and burner crowns with caps. • Remove the control knobs along with the seal gaskets. Gas faucet (depending on the model) Twin burner model: Minimum heat input setting screw for twin burner model. One double burner (wok) Minimum heat input setting screw for one double burner model: Gas faucet thread holds the minimum heat power setting screw...
-
Page 19: Nozzle Chart - Glas Ceramic Hob
Nozzle chart - glas ceramic hob Type of gas Auxiliary burner Large burner Number Wobbe máx mín máx mín Natural gas H Nominal heat input (kW) 0,36 0,76 Ws= 45,7÷54,7 MJ/m Consumption (l/h) 95,2 34,4 285,6 72,4 Natural gas E, E+ Nozzle mark (1/100mm) •... - Page 20 Type of gas Double (WOK) burner min- interior min - in- termediate and Number Wobbe fl ame exte- rior fl ame Natural gas H Nominal heat input (kW) 0,8/4,2 0,36 Ws= 45,7÷54,7 MJ/m Consumption (l/h) 76,2/400,2 34,3 181,0 Natural gas E, E+ Nozzle mark (1/100mm) 70H1 147H3...
-
Page 21: Technical Information
55,1 54,1 gas hob WE RESERVE THE RIGHT TO ALTER THE SPECIFICATIONS WITH NO INFLUENCE ON THE OPERATION OF THE APPLIANCE. Instructions for use of the appliance can also be found on our website at www.gorenje.com / < http://www.gorenje.com />... - Page 24 4108, 4109 / EN en (01-17)
