- Page 1 INSTRUCTIONS FOR USE, INSTALLATION, AND CONNECTION GLASS CERAMIC INDUCTION BUILT-IN COOKING HOB...
- Page 2 GLASS CERAMIC INDUCTION BUILT-IN COOKING HOB Dear customer ! Built-in glass ceramic induction hob is intended solely for use in households. Our products are packed in environment-friendly materials which can be safely recycled, disposed of, or destroyed. Respective packaging materials are labeled accordingly. When the appliance is outdated and you intend to dispose of it, please make sure this is done in an environment-friendly manner.
-
Page 3: Table Of Contents
TABLE IMPORTANT - READ BEFORE USING THE APPLIANCE ......... 4 Safety percautions ........................4 Warnings............................5 CERAMIC-GLASS COOKTOP ..................6 Operating the cooking hob ......................6 Induction hotplate function principle .................. 7 Appropriate cookware for induction hotplates .............. 7 Power regulation ...........................9 Energy saving tips ........................9 HOB CONTROL .......................10 Switching on the cooking hob .................... -
Page 4: Important - Read Before Using The Appliance
IMPORTANT - READ BEFORE USING THE APPLIANCE Safety percautions • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Warnings
Warnings • The appliance may only be connected to the power mains by an authorized service technician or expert. • Tampering with the appliance or non-professional repair thereof may result in risk of severe injury or damage to the product. Any repairs may only be carried out by an authorized service technician or expert. -
Page 6: Ceramic-Glass Cooktop

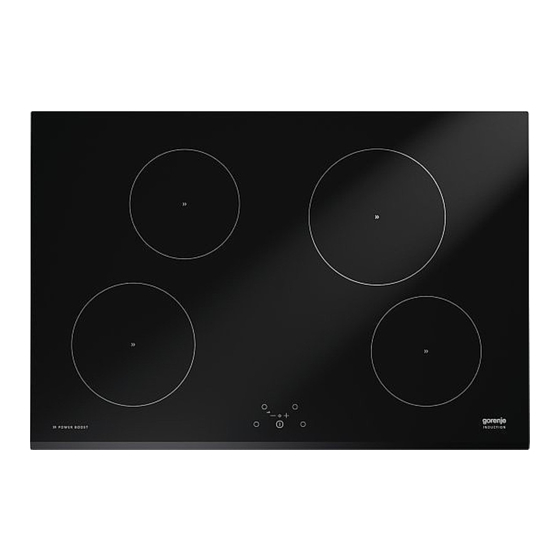

CERAMIC-GLASS COOKTOP 1. Induction hotplate rear left 2. Induction hotplate rear right 3. Induction hotplate front left 4. Induction hotplate front right 5. Hob control panel Operating the cooking A Hob on/off sensor B Power level/residual heat displays B1 The decimal point indicates the activated timer function C Cooking zone selection sensors E Sensor (-) and (+) -
Page 7: Induction Hotplate Function Principle
Induction hotplate • Ceramic glass hob is fi tted with three or four hotplates. function principle Hob surface is completely fl at and smooth, without edges to accumulate dirt. • The hob is fi tted with high power induction hotplates. Heat is generated directly at the bottom of the dish, where it is most needed, without any losses through the ceramic glass surface. - Page 8 • When buying cookware, check if it bears the label “allows induction”. Only use cookware suitable for electric and induction cooking, with a: • thick bottom (at least 2.25 mm) • fl at bottom. Cooking zone Minimum pan bottom diameter Ø...
-
Page 9: Power Regulation
The cooking zone can be damaged: • If an empty pan is placed on it. • Before placing the pan on the cooking zone, wipe the pan bottom dry to enable the fl ow of heat and to prevent damage to the cooking zone. •... -
Page 10: Hob Control
HOB CONTROL • After connecting the glass ceramic hob to the power mains, all symbols on the display will light up briefl y. The cooking hob is then ready for operation. • The cooking hob is fi tted with electronic sensors which are activated by touching the designated surface areas with your fi... -
Page 11: Powering Off The Cooking Hob
Powering off the • The cooking hob may be switched off anytime by cooking hob touching the on/off sensor (A). All settings will be deleted, except for the minute minder (see section »Timer«). Engaging the control By activating the control unit lock, you can prevent the unit lock / child safety operation or use of the cooking zones. -
Page 12: Operation Time Limit
Warning: The cooking zone with the SP symbol (Super Power Boost) off ers the Super Power Boost function. In this zone, extra power is activated for fi ve minutes; then, it switches to level 9. Activating the Power Boost • Press the relevant sensor (C) to select the cooking zone. Use the »–«... -
Page 13: Timer
• Induction cooking hob is also fi tted with a built- in overheating protection device that protects the electronic parts from damage. The protection device operates at several levels. When the cooking zone temperature increases considerably, the cooking power is reduced automatically. If this is not enough, the power of currently heated cooking zones is reduced further or shut off entirely. -
Page 14: Safety Functions And Error Display
• Value can be set from 01 to 99 minutes. Shut-off timer can be set for each cooking zone. • To check the remaining time, select the corresponding cooking zone and activate the timer function. Press the »–« or »+« sensor (E) to change the setting. (Press the »–«... -
Page 15: Cleaning And Maintenance Of Ceramic-Glass Hob
CLEANING AND MAINTENANCE OF CERAMIC- GLASS HOB Cleaning After each use of the glass-ceramic hob, wait for it to cool down and clean it; otherwise, even the smallest food residue will be burnt onto the hot surface next time you use the appliance. -
Page 16: Installation
Sugar and sugar-laden food may permanently damage the glass-ceramic surface (Figure 5); therefore, they should be removed from the glass-ceramic surface as soon as possible, although the cooking zone may still be hot (Figure 4). Any change in the color of the glass-ceramic surface does not aff ect its operation or the stability of the surface. -
Page 17: Installing The Foam Gasket
Installing the foam Before inserting the appliance into the opening in the kitchen gasket worktop, the supplied foam gasket must be attached to the lower side of the glass ceramic (glass) cooking hob (see fi gure above). Do not install the appliance without the foam gasket! The gasket should be attached to the appliance in the following way:... -
Page 18: Installation Procedure
- SIVK7 • Cooking hobs can be installed into worktops that are 30 to 50 mm thick. • If the board is thicker than 40 mm, its inner edge should be trimmed, or ground (Figure A). Thus, suffi cient air circulation will be provided. -
Page 19: Lower Kitchen Cabinet Ventilation Slots
Lower kitchen cabinet • To enable normal operation of electronic components ventilation slots of the induction hob, suffi cient air circulation must be provided. A Lower kitchen cabinet with a drawer • An opening at least 140 mm high must be provided on the back wall of the cabinet, along its entire width. - Page 20 B Lower kitchen cabinet with an oven • Installing the oven under an induction hob is possible with oven types EVP4.., EVP2.., which are fi tted with a cooling fan. Before installing the oven, the rear wall of the kitchen cabinet should be removed. Furthermore, a minimum of 6 mm clearance should be provided at the front side, along the entire width of the cabinet.
-
Page 21: Installation Diagram
Installation diagram The appliance is designed for two-phase connection; it can also be connected to a single phase. • Two-phase connection Install the jumper connectors on terminals 4 and 5. • Single-phase connection Install the jumper connectors on terminals 4 and 5, and terminals 1 and 2. -
Page 22: Connection To The Power Supplay
CONNECTION TO THE POWER SUPPLAY • Connections may be carried out by a qualifi ed technician only. The earthing protection must comply with the standing regulations. • Connection terminals are revealed when the connection box cover is removed. • Prior any attempted connection check that the voltage indicated on the rating plate is in line with your home power supply. - Page 23 Single-phase connection with total power limiter (only in model with four cooking zones) • If your home main fuse does not allow 32-ampere current, then the function of total power limiter can be activated on the hob so that the current never exceeds 16 •...
-
Page 24: Technical Information
WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE. Instructions for use of the appliance can also be found on our website at www.gorenje.com / < http://www.gorenje. com /> SIVK_BI2_KARIM RASHID en (09-14)
