Typical Application Diagrams - Altronix AL175UL Installation Instructions

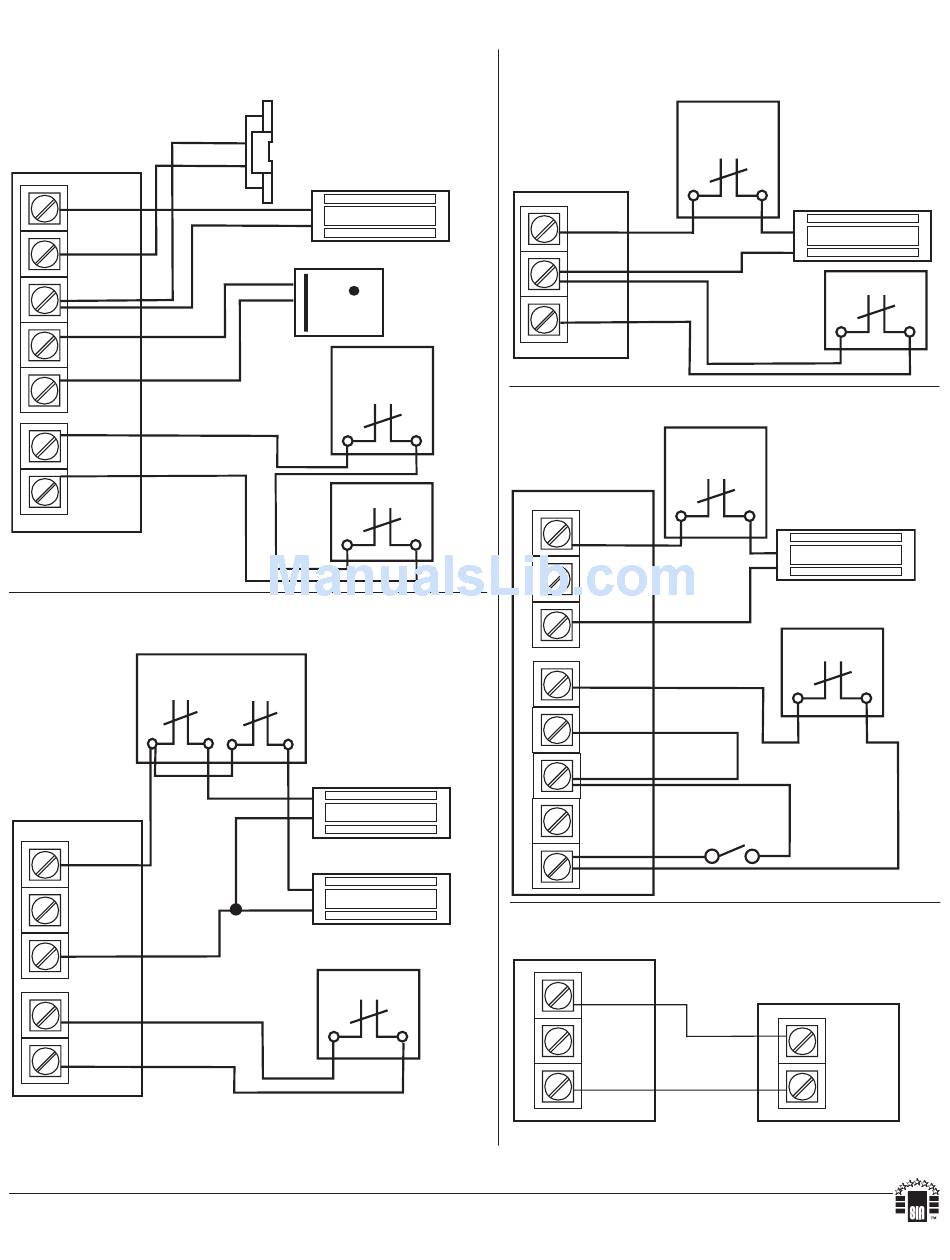

Fig. 2 Typical single mag lock or door strike installation
with fire alarm tie-in using trigger controlled output:
LOCK +
STRIKE +
COM --
AUX +
AUX --
TRG2
TRG1
Fig. 3 Typical dual mag lock installation with fire alarm
tie-in using trigger controlled outputs:
ACCESS CONTROL
LOCK +
STRIKE +
COM --
TRG2
TRG1
