Software

7

7.1 Requirements

PC running Windows 2000/XP/Vista/Win7 at minimum 64 MB RAM
approx. 10 M
B

7.2 Installation and Start

The following explains how to start and setup the software. Make sure any sensor or sensors are
turned on before running the program. The Startup Wizard runs the first time you use the program.
After the first saving your settings, the program starts at the Main screen.
Software Start
1. To install the software, choose the SETUP.EXE file on your data medium.
2. Double click the <DataTemp Multidrop> icon on your desktop to open the software. The
software prompts you to choose to create a new file or open a saved file. Click the <Create a
New File> button.
3. The software checks for a free COM port, this appears as pre-setting. Make sure the <HART
Protocol> is selected on the screen.
4. Click <Continue> and follow instructions on the screen.
5. On the last screen click <Finish>.
After communication with the devices (real or simulated) is established, a screen similar to the one
below displays. This screen shows, how many devices are attached as well as their identification
numbers and types of devices. Check here to make sure all installed devices are connected properly.
Note: If you notice that not all devices were found, click on the <Back> button to return to the previous screen,
then go check your sensor connections. After checking, click on the <Continue> button so the software
rescans for connected devices.
32
hard-disc memory for the program

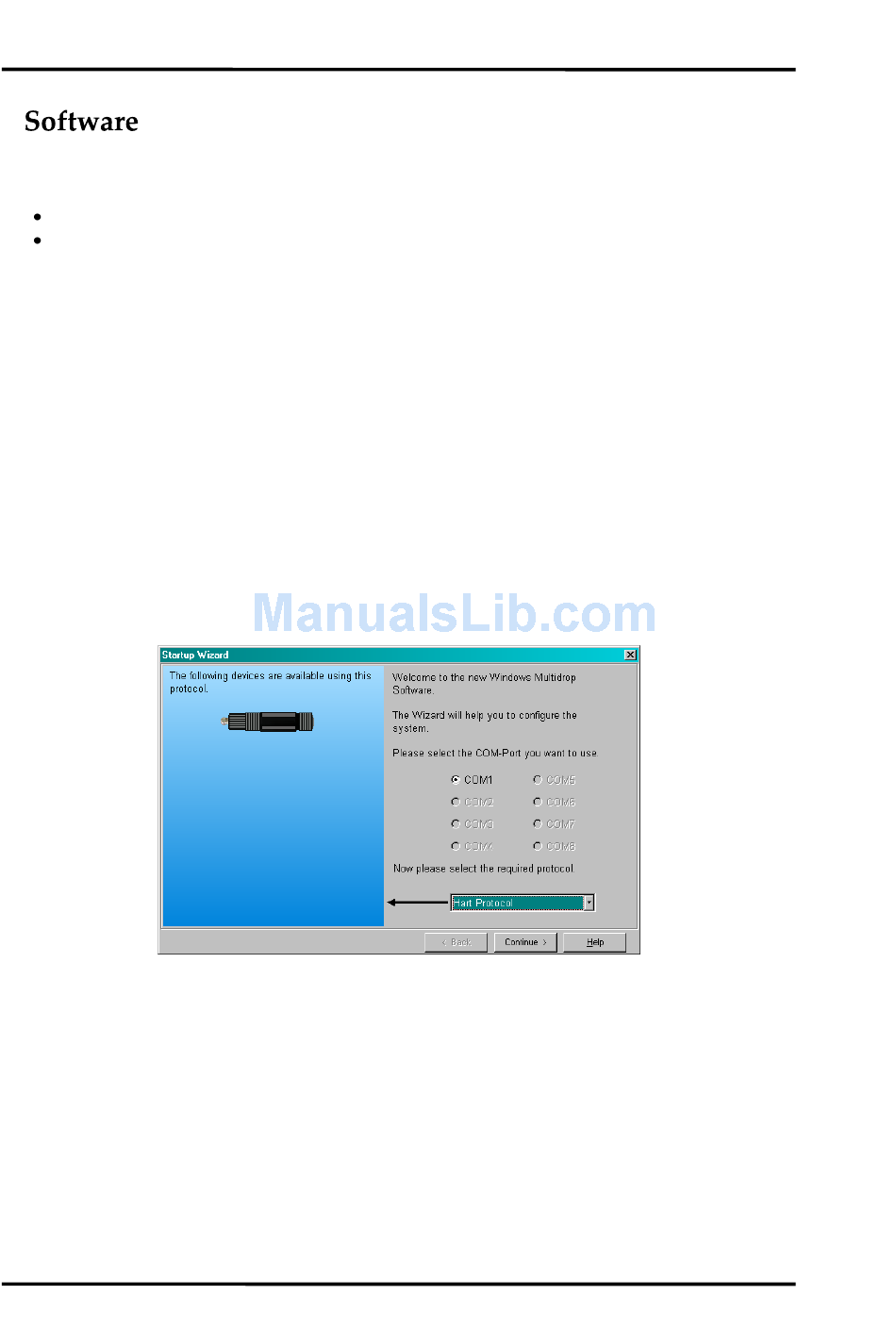

Figure 26: Setting the Software to <HART> Protocol
