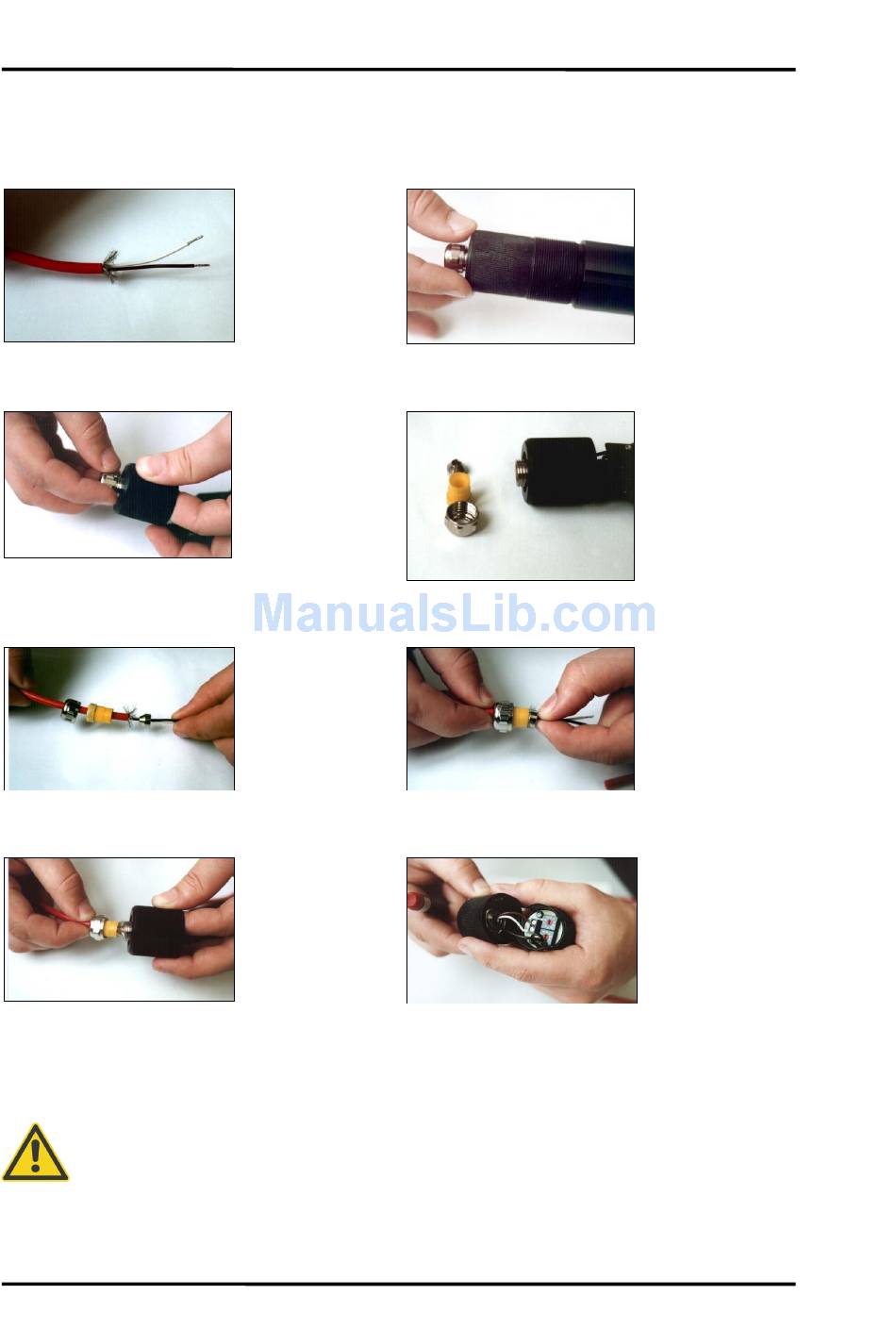

Installation
1.)
Prepare the cable, remove about 6cm (2.36 in) of the
insulation. Shorten the shield to about 1cm (0.4 in). Tin-
coat the connecting leads.
3.)
Open the PG threaded cable gland.
5.)
Feed the prepared cable through the components of
the cable gland.
7.)
Place the PG screwed cable gland back into the
outer cap. Tighten the PG nut firmly.
9.)
Screw the end-cap firmly onto the sensor until it is tight (flush with the sensor body).
IMPORTANT: Neither the end-cap nor the cable gland should have any play after tightening.
The screwed cable gland described above is not a strain relief! Consequently, the cable
must be clamped accordingly during the installation. The outside diameter of the
connecting cables (round cable) should lie between 4 to 6 mm (about 0.2 inches). Note
that it might be necessary to additionally seal the cable entry to allow IP65 with smaller
cables!
16
2.)
Unscrew the end-cap until it can be pulled away
from the sensor body.
4.)
The cable gland consists of a PG nut,
a plastics part and a metal cone ring.
6.)
Make sure to have a proper contact between the
braided shield and the metal cone ring.
8.)
Connect the signal wires to the screw terminals.
