Accessories

6.8 Industrial Power Supply

The DIN-rail mount industrial power supply delivers isolated dc power and provides short circuit
and overload protection.
To prevent electrical shocks, the power supply must be used in protected environments
(cabinets)!
Technical data:
Protection class
Environmental protection
Operating temperature range
AC Input
wire size
DC Output
wire size
30
class II as per IEC/EN 61140
IP20
-25°C to 70°C (-13°F to 158°F)
100 – 240 VAC 50/60 Hz [L/N]
0.5 to 2 mm² (AWG 24 to 12)
24 VDC / 1.25 A [+/–]
0.5 to 2 mm² (AWG 24 to 12)

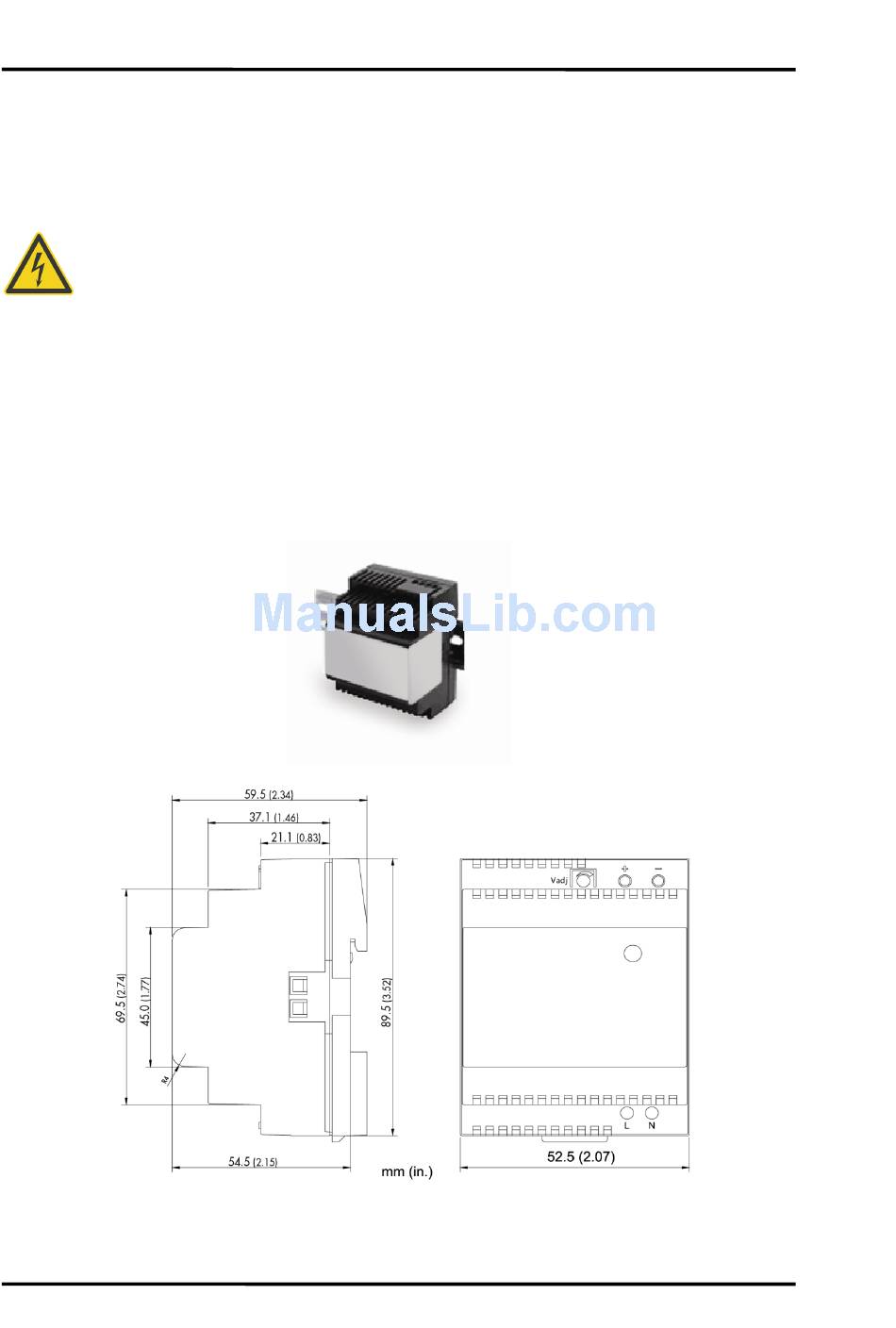

Figure 25: Dimensions of Industrial Power Supply
