Levelflex FMP56, FMP57

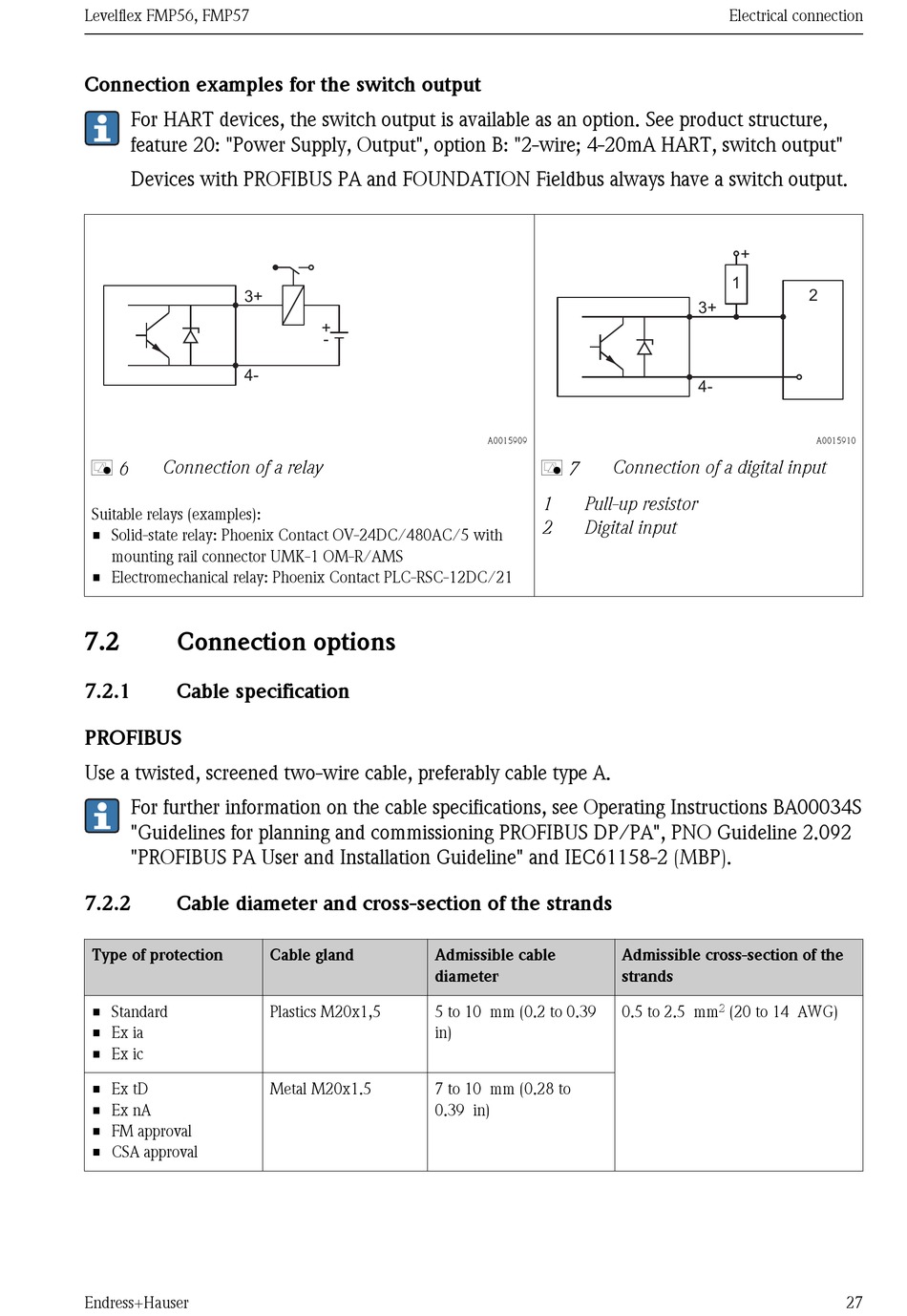

Connection examples for the switch output
For HART devices, the switch output is available as an option. See product structure,
feature 20: "Power Supply, Output", option B: "2-wire; 4-20mA HART, switch output"
Devices with PROFIBUS PA and FOUNDATION Fieldbus always have a switch output.
3+
4-
Connection of a relay
å 6
Suitable relays (examples):
• Solid-state relay: Phoenix Contact OV-24DC/480AC/5 with
mounting rail connector UMK-1 OM-R/AMS
• Electromechanical relay: Phoenix Contact PLC-RSC-12DC/21
7.2

Connection options

7.2.1 Cable specification
PROFIBUS
Use a twisted, screened two-wire cable, preferably cable type A.
For further information on the cable specifications, see Operating Instructions BA00034S
"Guidelines for planning and commissioning PROFIBUS DP/PA", PNO Guideline 2.092
"PROFIBUS PA User and Installation Guideline" and IEC61158-2 (MBP).
7.2.2 Cable diameter and cross-section of the strands
Type of protection
• Standard
• Ex ia
• Ex ic
• Ex tD
• Ex nA
• FM approval
• CSA approval
Endress+Hauser
+
-
Cable gland Admissible cable
diameter
Plastics M20x1,5 5 to 10 mm (0.2 to 0.39
in)
Metal M20x1.5 7 to 10 mm (0.28 to
0.39 in)
A0015909
Connection of a digital input
å 7
1 Pull-up resistor
2 Digital input
Admissible cross-section of the
strands
0.5 to 2.5 mm
Electrical connection
+
1
2
3+
4-
A0015910
2
(20 to 14 AWG)
27
