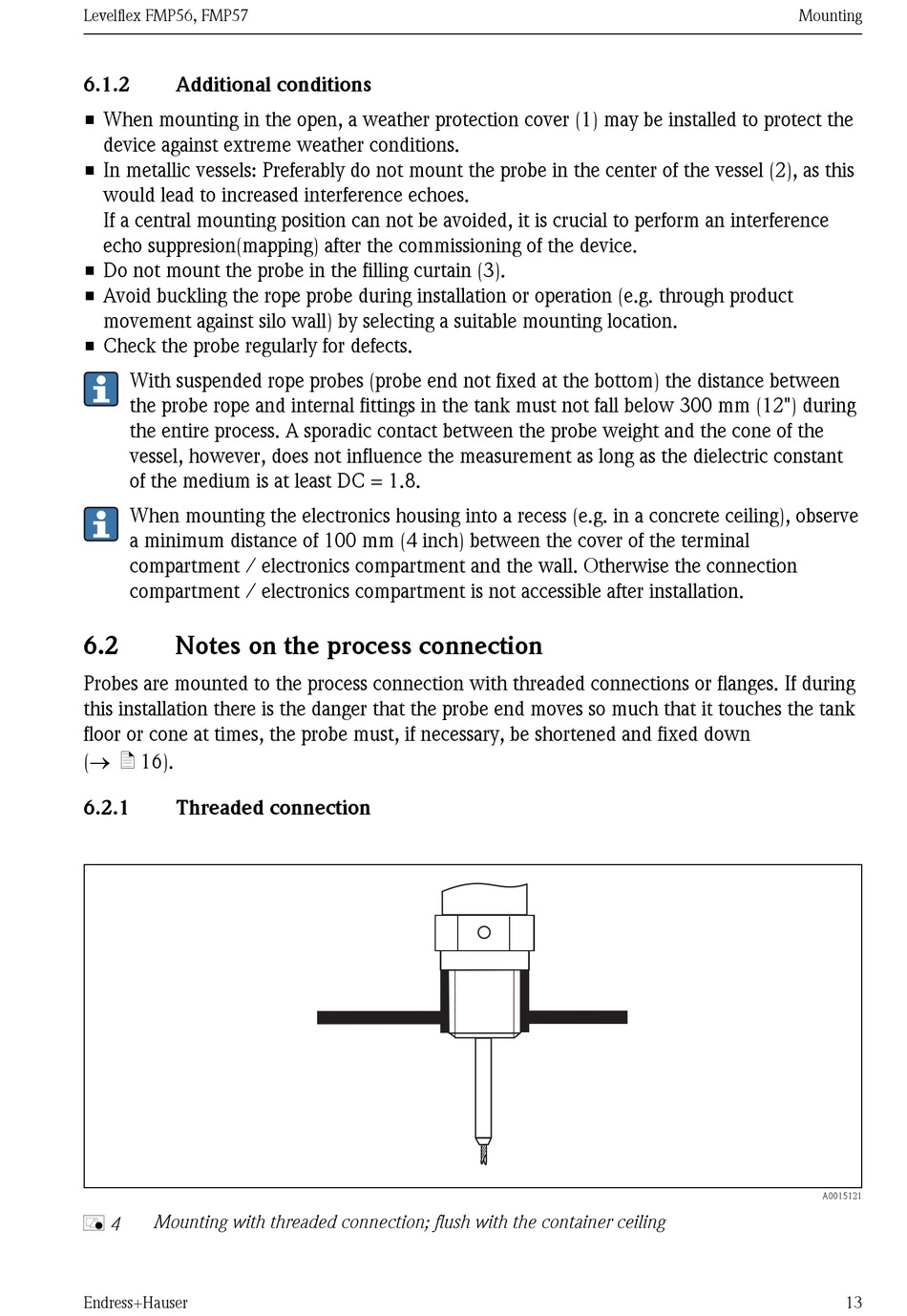

Levelflex FMP56, FMP57
6.1.2 Additional conditions
• When mounting in the open, a weather protection cover (1) may be installed to protect the
device against extreme weather conditions.
• In metallic vessels: Preferably do not mount the probe in the center of the vessel (2), as this
would lead to increased interference echoes.
If a central mounting position can not be avoided, it is crucial to perform an interference
echo suppresion(mapping) after the commissioning of the device.
• Do not mount the probe in the filling curtain (3).
• Avoid buckling the rope probe during installation or operation (e.g. through product
movement against silo wall) by selecting a suitable mounting location.
• Check the probe regularly for defects.
With suspended rope probes (probe end not fixed at the bottom) the distance between
the probe rope and internal fittings in the tank must not fall below 300 mm (12") during
the entire process. A sporadic contact between the probe weight and the cone of the
vessel, however, does not influence the measurement as long as the dielectric constant
of the medium is at least DC = 1.8.
When mounting the electronics housing into a recess (e.g. in a concrete ceiling), observe
a minimum distance of 100 mm (4 inch) between the cover of the terminal
compartment / electronics compartment and the wall. Otherwise the connection
compartment / electronics compartment is not accessible after installation.
6.2

Notes on the process connection

Probes are mounted to the process connection with threaded connections or flanges. If during
this installation there is the danger that the probe end moves so much that it touches the tank
floor or cone at times, the probe must, if necessary, be shortened and fixed down
(® ä 16).
6.2.1 Threaded connection
Mounting with threaded connection; flush with the container ceiling
å 4
Endress+Hauser
Mounting
A0015121
13
