Levelflex FMP56, FMP57
8 mm

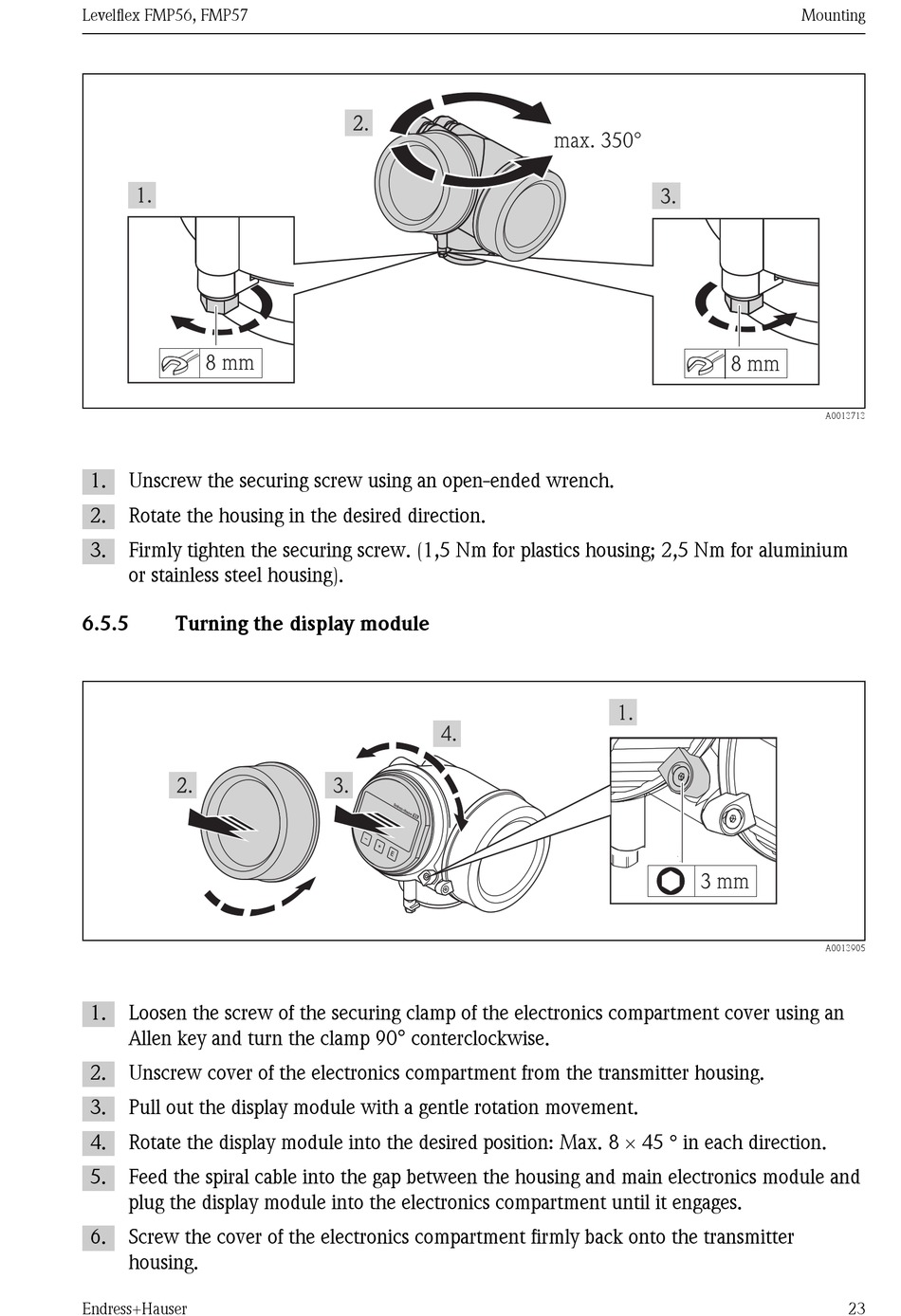

1. Unscrew the securing screw using an open-ended wrench.
2. Rotate the housing in the desired direction.
3. Firmly tighten the securing screw. (1,5 Nm for plastics housing; 2,5 Nm for aluminium
or stainless steel housing).
6.5.5 Turning the display module
1. Loosen the screw of the securing clamp of the electronics compartment cover using an
Allen key and turn the clamp 90° conterclockwise.
2. Unscrew cover of the electronics compartment from the transmitter housing.
3. Pull out the display module with a gentle rotation movement.
4. Rotate the display module into the desired position: Max. 8 ´ 45 ° in each direction.
5. Feed the spiral cable into the gap between the housing and main electronics module and
plug the display module into the electronics compartment until it engages.
6. Screw the cover of the electronics compartment firmly back onto the transmitter
housing.
Endress+Hauser
max. 350°
1
3 mm
Mounting
8 mm
A0013713
A0013905
