Levelflex FMP56, FMP57
7
Electrical connection
7.1
Connection options
7.1.1
Connection options
PROFIBUS PA / FOUNDATION Fieldbus
5
4
3+
4-
1
1

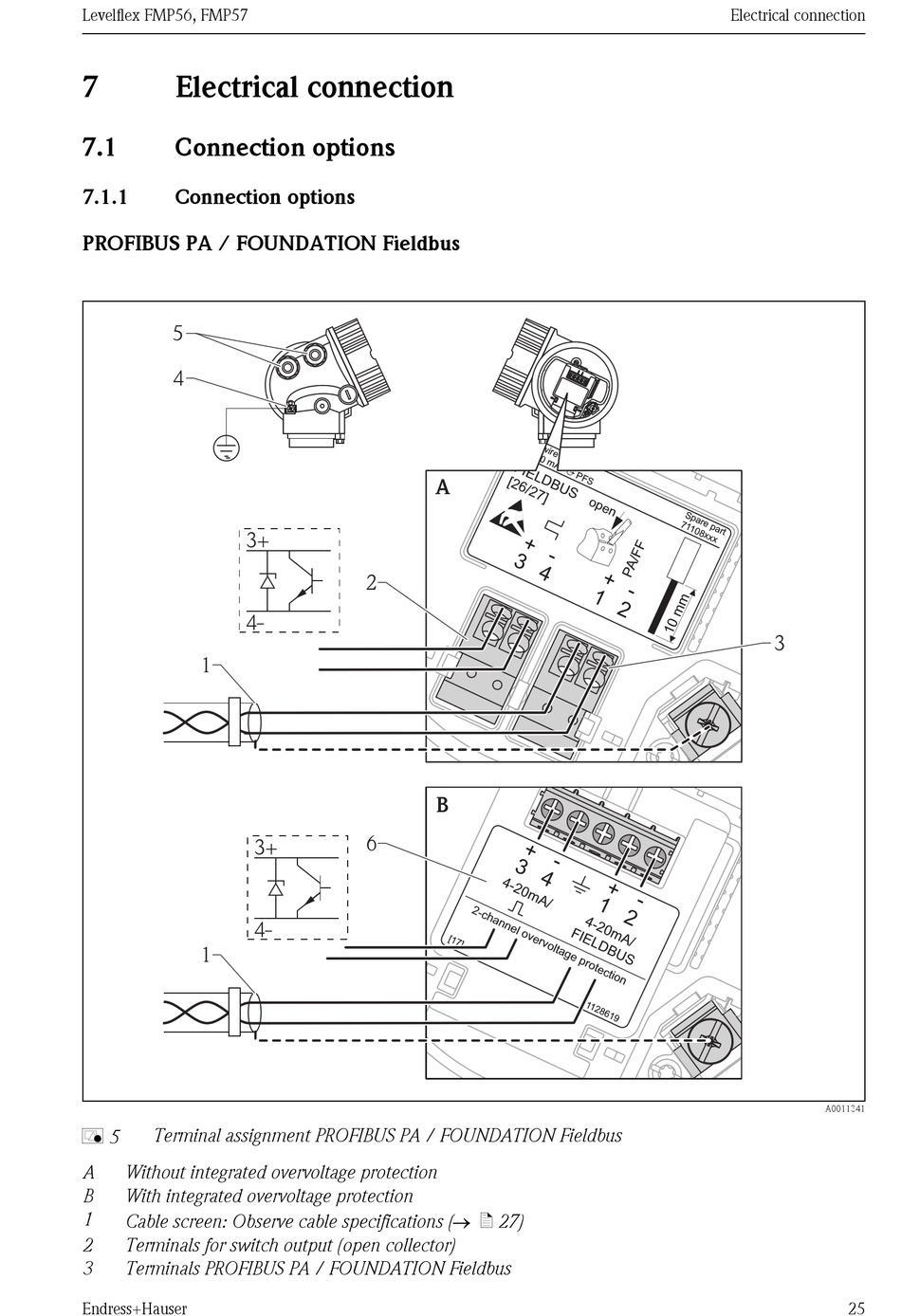

Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus
å 5
A
Without integrated overvoltage protection
B
With integrated overvoltage protection
1
Cable screen: Observe cable specifications (® ä 27)
2
Terminals for switch output (open collector)
3
Terminals PROFIBUS PA / FOUNDATION Fieldbus
Endress+Hauser
2
6
3+
4-
A
B
Electrical connection
3
A0011341
25
