Troubleshooting

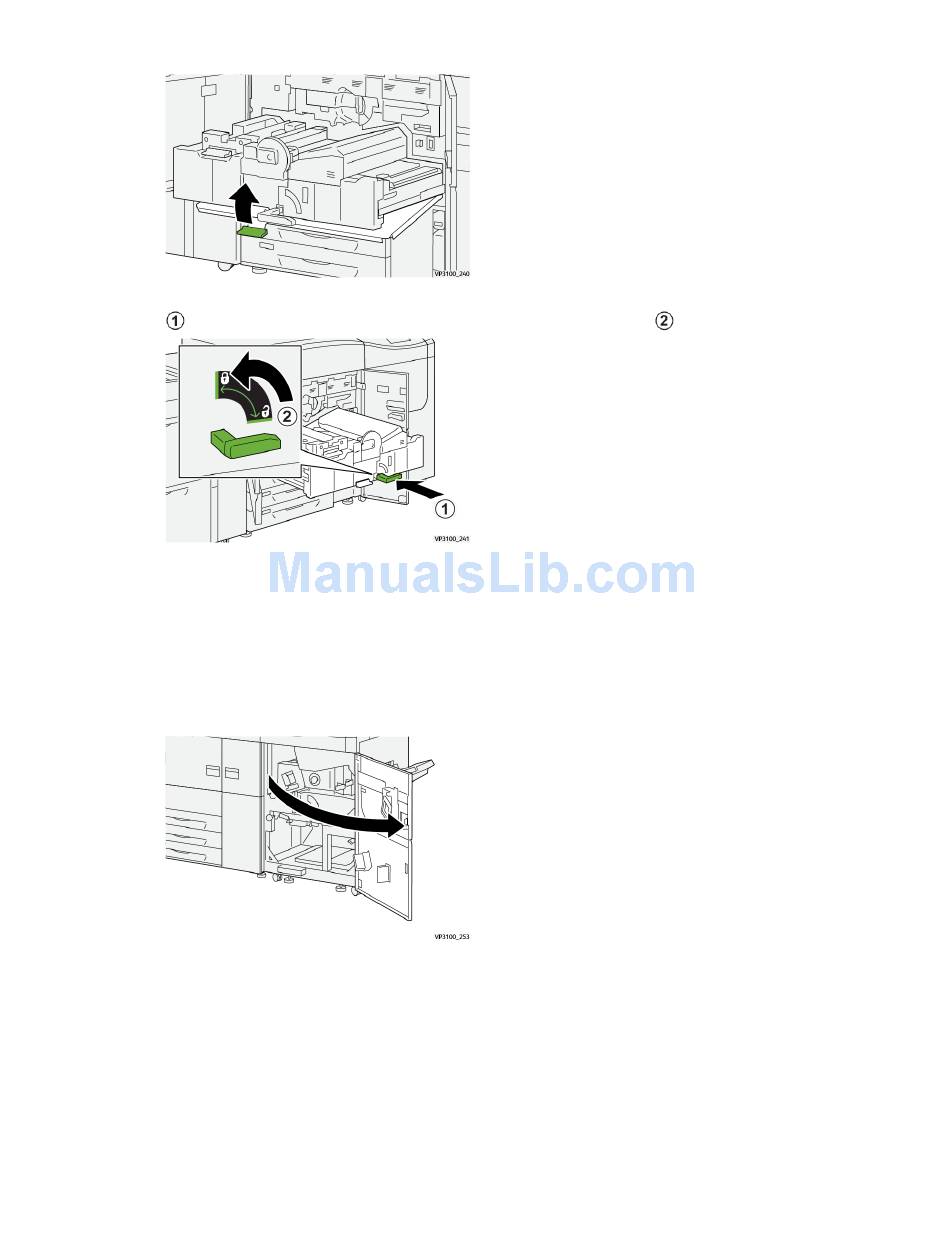

11. Return lever 2f to its original position.
12. To close the transfer drawer, grasp handle 2 and gently push in the drawer completely
; turn the green handle to the left to lock the drawer in place
13. Close the left and center front doors completely. The press does not operate when
doors or covers are open.

Clearing Jams in Areas 3, 4 and 5

Important
Before opening any press doors, ensure that the press has stopped printing.
1. Open the right front door.
5-4
.
Xerox
®
Versant
®
3100 Press
Quick Start Guide
