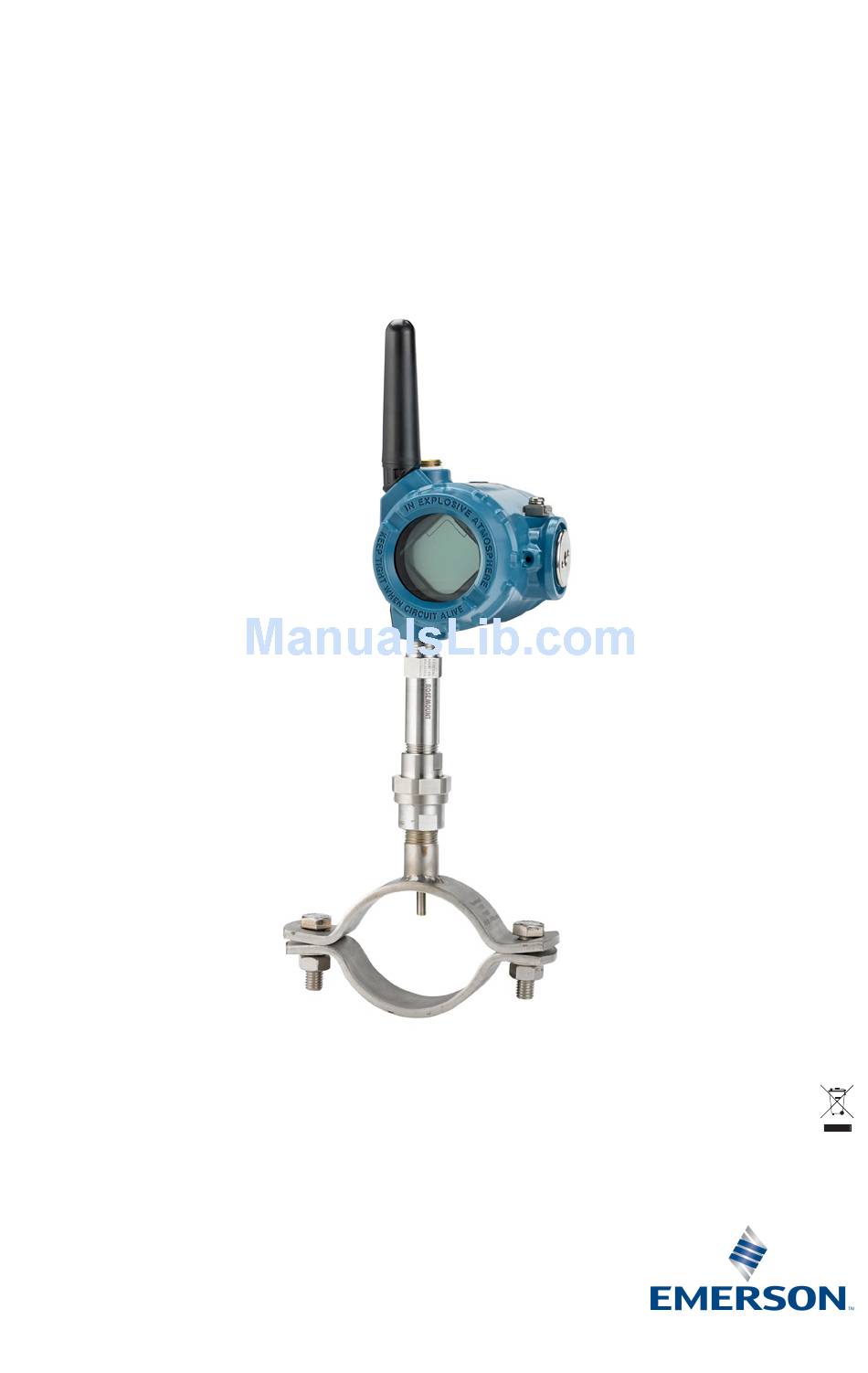

- Page 1 Quick Start Guide 00825-0100-4952, Rev DC August 2017 ™ Rosemount 0085 Pipe Clamp Sensor Assembly...
-
Page 2: Table Of Contents
Reference Manual for more instruction. The manual and guide are also available electronically on Emerson.com/Rosemount. If the Rosemount 0085 Sensor was ordered assembled to a temperature transmitter, see the appropriate Quick Start Guide for information on configuration and hazardous locations certifications. -
Page 3: Location And Orientation
Quick Start Guide August 2017 Location and orientation The pipe clamp sensor should be mounted on the outside section of the pipe where the process medium is in contact of the inside of the pipe wall. Ensure that the pipe surface is clean of debris. The pipe clamp sensor should be mounted in a secure position to ensure there is no rotational movement after installation. -
Page 4: Special Considerations
August 2017 Quick Start Guide Figure 3. Vertical Orientation 360° Special considerations Under most circumstances, the Rosemount 0085 Pipe Clamp Sensor can be mounted in a direct mount configuration. Since heat from the process is transferred from the pipe clamp sensor to the transmitter housing, if the expected process temperature is near or beyond specification limits, consider using a remote mount configuration to isolate the transmitter from the process. - Page 5 Quick Start Guide August 2017 Figure 4. Pipe Clamp Sensor Assembly in Remote Mount Configuration Wireless transmitters with external antennas allow for multiple antenna configurations. All wireless transmitter should be appropriately 3 ft. (1 m) from any large structure or building to allow clear communication to other devices. Wireless transmitters with external antennas should be positioned vertically, either straight up or straight down.
-
Page 6: Install Pipe Clamp Sensor
August 2017 Quick Start Guide Install pipe clamp sensor Select the area for pipe clamp sensor installation with the recommendations outlined in “Horizontal orientation” on page 3. Mount the pipe clamp sensor on the pipe and snug tighten the bolts. Ensure the sensor passes through the hole of the pipe clamp and has direct contact between the sensor tip and pipe. -
Page 7: Installing Optional Accessories
Quick Start Guide August 2017 Install transmitter See appropriate transmitter reference manual for sensor-transmitter installation. Refer to Figure 7 for sensor lead wire terminations. Figure 7. Sensor Lead Wire Termination Single element 3-wire Single element 4-wire Dual element 3-wire Commission transmitter See appropriate transmitter reference manual for transmitter commissioning instructions. -
Page 8: August
August 2017 Quick Start Guide Figure 8. Pipe Clamp Sensor Assembly with Protection Inlay A. Extension of pipe clamp D. Corrosion protection inlay B. Pipe clamp E. Pipe C. Sensor Replacement sensor The spring loaded sensor can be ordered for replacement using the Rosemount 0085 Pipe Clamp Sensor Product Data Sheet. - Page 9 Quick Start Guide August 2017 ™ Rosemount X-well Technology considerations Rosemount X-well Technology is for temperature monitoring applications and is not intended for control or safety applications. It is available in the Rosemount 3144P Temperature Transmitter and 648 Wireless Temperature Transmitter in a factory assembled direct mount configuration with a Rosemount 0085 Pipe Clamp Sensor.
- Page 10 August 2017 Quick Start Guide The pipe clamp sensor makes direct contact with pipe surface. Moisture buildup between sensor and pipe surface or sensor hangup in assembly can cause inaccurate process temperature calculations. Refer to “Install pipe clamp sensor” on page 6 for more information on proper sensor to pipe surface contact.
-
Page 11: Product Certifications
A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount Ordinary Location Certification As standard, the transmitter has been examined and tested to determine that... - Page 12 August 2017 Quick Start Guide 4. Flameproof joints are not intended for repair. 5. A suitable certified Ex d or Ex tb enclosure is required to be connected to temperature probes with Enclosure option “N”. 6. Care shall be taken by the end user to ensure that the external surface temperature on the equipment and the neck of DIN Style Sensor probe does not exceed 130 °C.
- Page 13 Quick Start Guide August 2017 IM Intrinsic Safety Markings: 0Ex ia IIC T5/T6 Ga X; T5, Pi = 0.29 W, (–60 °C to +70 °C); T6, Pi = 0.29 W, (–60 °C to +60 °C); T6, Pi = 0.192 W, (–60 °C to +70 °C) Special Condition for Safe Use (X): 1.
- Page 14 August 2017 Quick Start Guide Figure 11. Rosemount 0085 Pipe Clamp Sensor Declaration of Conformity EU Declaration of Conformity No: RMD 1059 Rev. M Rosemount, Inc. 8200 Market Boulevard Chanhassen, MN 55317-9685 declare under our sole responsibility that the product, Rosemount™...
- Page 15 Quick Start Guide August 2017 EU Declaration of Conformity No: RMD 1059 Rev. M ATEX Directive (2014/34/EU) FM12ATEX0065X - Flameproof Certificate Equipment Group II Category 2 G (Ex d IIC T6…T1 Gb) Harmonized Standards: EN60079-0:2012+A11:2013, EN60079-1:2007 FM12ATEX0065X - Dust Certificate Equipment Group II Category 2 D (Ex tb IIIC T130°C Db) Harmonized Standards: EN60079-0:2012+A2013, EN60079-31:2014...
- Page 16 August 2017 Quick Start Guide China RoHS Rosemount 0085 List of Rosemount 0085 Parts with China RoHS Concentration above MCVs Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6) (PBB) (PBDE) Electronics Assembly...
