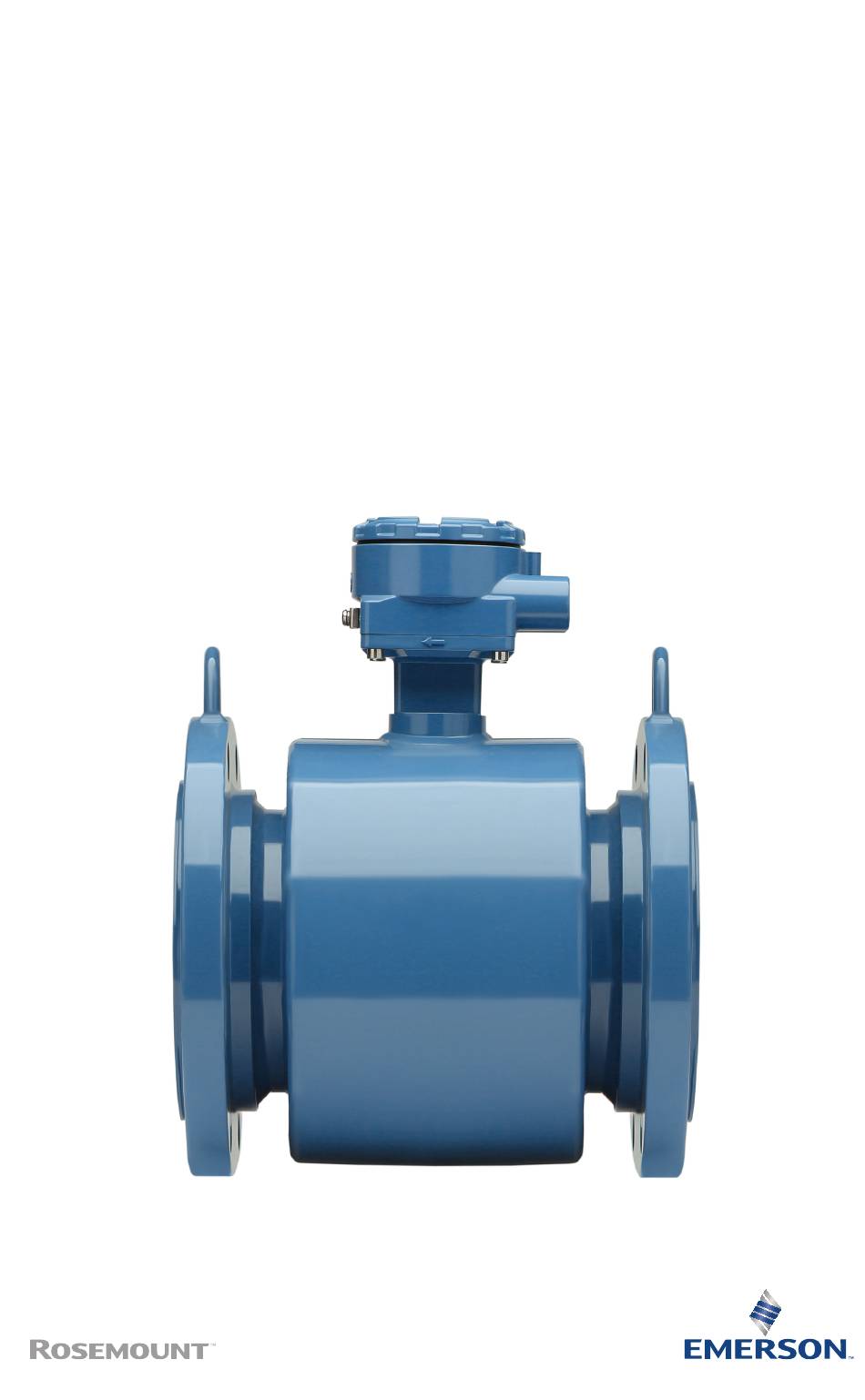

- Page 1 Quick Install Guide 00825-0100-00MS, Rev AA November 2019 ™ Rosemount MS Slurry Magnetic Flow Meter Sensor...
- Page 2 Do not perform any servicing other than that contained in the operating instructions, unless qualified. • Potential electrostatic charging hazard: Rosemount Magnetic flow meters ordered with non-standard paint options or non-metallic labels may be subject to electrostatic discharge. To avoid electrostatic charge build-up, do not rub the flow meter with a dry cloth or clean with solvents.
- Page 3 November 2019 Quick Install Guide CAUTION • The sensor liner is vulnerable to handling damage. Liner damage can render the sensor useless. Failure to observe these instructions could result in severe damage to the sensor lining and possible sensor replacement. •...
- Page 4 The sensor liner is vulnerable to handling damage. Never place anything through the sensor for the purpose of lifting or gaining leverage. Liner damage can render the sensor useless. • Do not drop the device from any height. ™ Rosemount MS Slurry Magnetic Flow Meter Sensor...
- Page 5 November 2019 Quick Install Guide 1.1.1 Lifting lugs CAUTION If provided, use the lifting lugs on each flange to handle the flow meter when it is transported and lowered into place at the installation site. If lifting lugs are not provided, the flow meter must be supported with a lifting sling on each side of the housing.
-
Page 6: Return Policy
Quick Install Guide November 2019 Introduction This document provides basic installation guidelines for the Rosemount MS Slurry Magnetic Flow Meter sensor. • For transmitter installation instructions, refer to the 8782 transmitter quick start guide, document number 00825-01xx-8782, where "xx" in the second segment of the document number indicates the language. -
Page 7: Emerson Flow Customer Service
November 2019 Quick Install Guide Emerson Flow customer service Email: • Worldwide: flow.support@emerson.com • Asia-Pacific: APflow.support@emerson.com Telephone: North and South America Europe and Middle East Asia Pacific United States 800 522 6277 U.K. 0870 240 Australia 800 158 727 1978... -
Page 8: Location And Position
In reduced straight run installations, the meter may not meet accuracy specifications. Reported flow rates will still be highly repeatable. Flow direction The sensor should be mounted so that the arrow points in the direction of flow. ™ Rosemount MS Slurry Magnetic Flow Meter Sensor... - Page 9 November 2019 Quick Install Guide Figure 3-2: Flow direction arrow Quick Install Guide...
- Page 10 Vertical installation with upward process fluid flow keeps the cross- sectional area full, regardless of flow rate. • Horizontal installation should be restricted to low piping sections that are normally full. Figure 3-3: Sensor orientation A. Flow direction ™ Rosemount MS Slurry Magnetic Flow Meter Sensor...
- Page 11 November 2019 Quick Install Guide Electrode orientation The electrodes in the sensor are properly oriented when the two measurement electrodes are in the 3 and 9 o’clock positions or within 45 degrees from the horizontal, as shown on the left side of Figure 3-4.
-
Page 12: Sensor Installation
If spiral wound or metallic gaskets are required for the application, lining protectors must be used. Figure 4-1: Gasket placement for flanged sensors A. Grounding ring and gasket (optional) B. Customer-supplied gasket ™ Rosemount MS Slurry Magnetic Flow Meter Sensor... - Page 13 November 2019 Quick Install Guide Bolts Note Do not bolt one side at a time. Tighten both sides simultaneously. Example: 1. Snug upstream 2. Snug downstream 3. Tighten upstream 4. Tighten downstream Do not snug and tighten the upstream side and then snug and tighten the downstream side.
- Page 14 T - PTFE P - Polyurethane K - PFA+ N - Neoprene L - Linatex (Natural Rubber) D - Adiprene Table 4-2: Suggested flange bolt torque values for Rosemount (ASME) sensors Size Line size Fluoropolymer liners Other liners code Class 150...
- Page 15 14 inch (350 mm) 16 inch (400 mm) 18 inch (450 mm) 20 inch (500 mm) 24 inch (600 mm) Table 4-4: Suggested flange bolt torque values for Rosemount MS sensors with non-fluoropolymer liners (EN 1092-1) Size Line size Non-fluoropolymer liners (in Newton-meters)
-
Page 16: Process Reference Connection
For line sizes 10-inch and larger the ground strap may come attached to the sensor body near the flange. See Figure 5-5. Figure 5-1: Grounding straps in conductive unlined pipe or reference electrode in lined pipe ™ Rosemount MS Slurry Magnetic Flow Meter Sensor... - Page 17 November 2019 Quick Install Guide Figure 5-2: Grounding with grounding rings or lining protectors in conductive pipe A. Grounding rings or lining protectors Figure 5-3: Grounding with grounding rings or lining protectors in non- conductive pipe A. Grounding rings or lining protectors Quick Install Guide...
- Page 18 Quick Install Guide November 2019 Figure 5-4: Grounding with reference electrode in conductive unlined pipe Figure 5-5: Grounding for line sizes 10-in. and larger ™ Rosemount MS Slurry Magnetic Flow Meter Sensor...
-
Page 19: Wiring Sensor To Transmitter
November 2019 Quick Install Guide Wiring sensor to transmitter Figure 6-1: Wiring using component cable Quick Install Guide... -
Page 20: Product Certifications
Product Certifications For detailed approval certification information and installation drawings, please see the appropriate document listed below: • Document number 00825-MA00-0009: Rosemount 8782 and MS Approval Document - Class Division • Document number 00825-MA00-0010: Rosemount 8782 and MS Approval Document - IECEx and ATEX •... - Page 21 November 2019 Quick Install Guide Quick Install Guide...
- Page 22 Quick Install Guide November 2019 ™ Rosemount MS Slurry Magnetic Flow Meter Sensor...
- Page 23 November 2019 Quick Install Guide Quick Install Guide...
- Page 24 © 2019 Rosemount, Inc. All rights reserved. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount, 8600, 8700, 8800 marks are marks of one of the Emerson Automation Solutions family of companies. All other marks are property...
