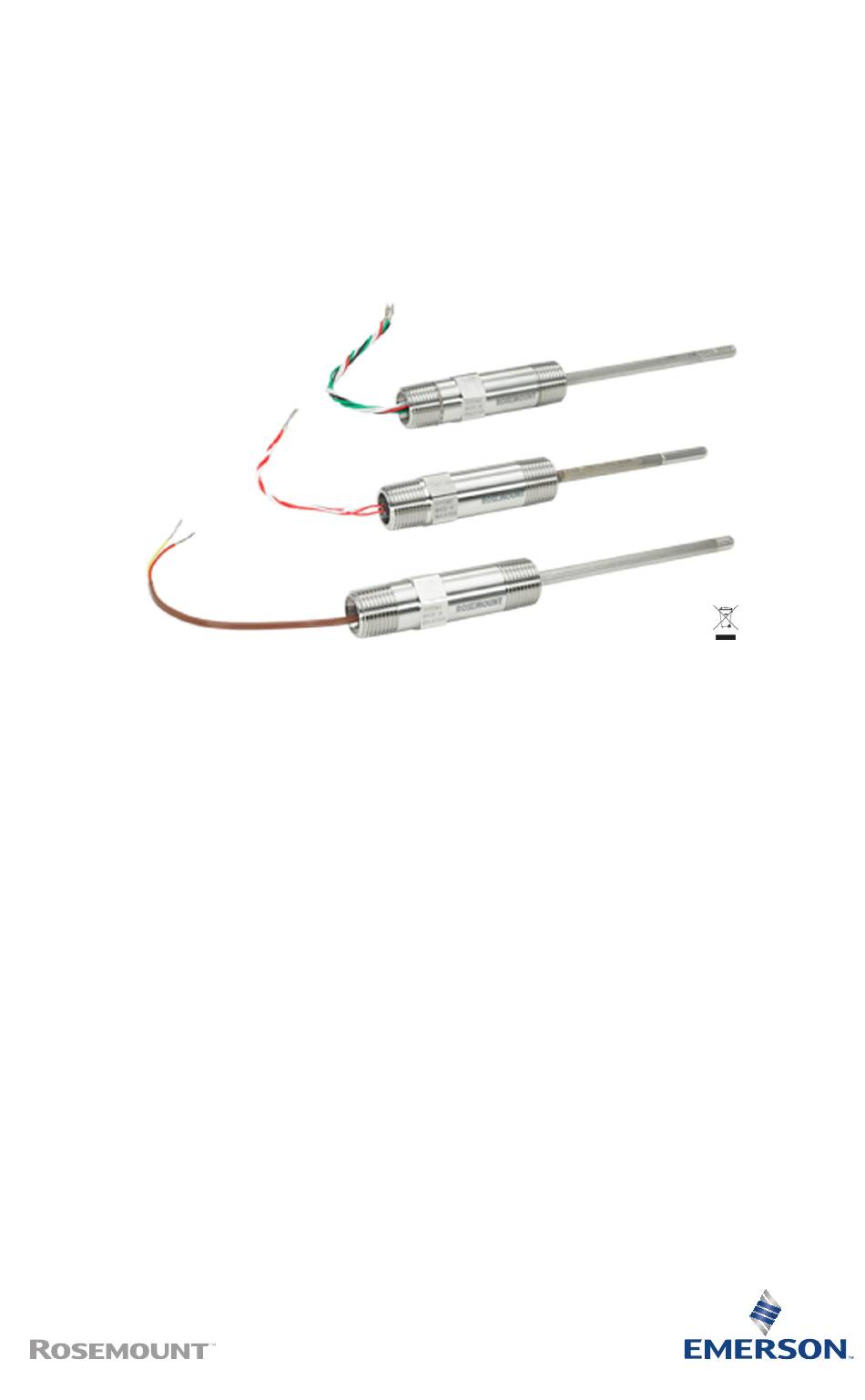

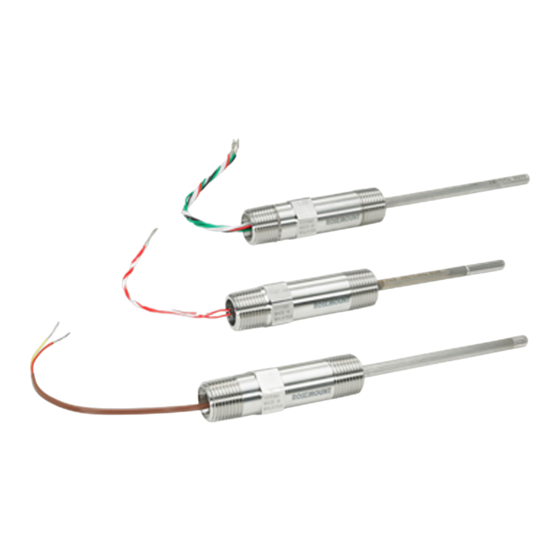

- Page 1 Quick Start Guide 00825-0300-2654, Rev GB March 2021 ™ Rosemount Volume 1 Sensor Assembly...
-
Page 2: Table Of Contents
Rosemount Series 58C sheath cutting ..................6 Drawings............................7 Rosemount Series 68 Platinum RTD................... 10 Rosemount Series 78 Platinum RTD................... 12 Rosemount Series 183 Thermocouple..................15 Rosemount Series 68Q Sanitary Platinum RTD ................18 Rosemount Series 58C Platinum RTD..................20 Product certifications......................... 21 Emerson.com/Rosemount... -
Page 3: About This Guide
(I.S.) installations. If the Rosemount Volume 1 Sensor was ordered assembled to a temperature transmitter, see the appropriate transmitter Quick Start Guide for information on configuration and hazardous locations certifications. -
Page 4: Wiring Diagrams
For three-wire systems, use one white and two red leads. Do not connect the white leads. Insulate or terminate the unused white lead in a manner that prevents shorting to the ground. For two-wire systems, connect both sets of leads. Emerson.com/Rosemount... - Page 5 March 2021 Quick Start Guide Figure 2-2: Rosemount Series 183 Thermocouple Wire Colors Type J Type E Type K Type T A. White B. Red C. Purple D. Yellow E. Blue Note To distinguish the two sensors in dual Rosemount 183 Sensors, there is an outer insulation wrapped around each pair of sensor wires.
-
Page 6: Rosemount Series 58C Sheath Cutting
Take care not to strip or damage the lead wire insulation while removing the excess sheath material. Note If you are unable to easily break off excess sheath material, deepen the score and repeat Step 6. Replace the heat shrink tubing. Emerson.com/Rosemount... -
Page 7: Drawings
March 2021 Quick Start Guide Drawings Figure 4-1: Rosemount Series 58C Sensor A. Four lead wires 6-in. (152 mm) long. B. X length ±0.25 (±6) C. 0.25 ±0.002 (6.35 ±0.13) diameter D. Heat shrink tubing E. Do not cut or bend sheath within 2-in. (51 mm) F. - Page 8 O T + 1.75-in. (44.5 mm) F Extension length Socket weld thermowell G Overall thermowell length Q Polypropylene connection head H Lead wire extensions and seals Thermowell immersion length 0.5-in. (13 mm) nominal Flanged thermowell engagement Rosemount aluminum connection Extensions head Emerson.com/Rosemount...
- Page 9 March 2021 Quick Start Guide Note Sensor assemblies can be provided without an enclosure or with an enclosure such as the connection heads shown above or assembled to a Rosemount transmitter. Quick Start Guide...
-
Page 10: Rosemount Series 68 Platinum Rtd
Emerson is not in a position to evaluate or guarantee the compatibility of the process fluid or other process parameters with the product, options, configuration or materials of construction selected. - Page 11 March 2021 Quick Start Guide Lead wire PTFE-insulated, silver plated, 24-gauge stranded copper wire Identification data The model, serial numbers, and up to six lines of permanent tagging information are etched on each sensor adapter. Stainless steel tags are available upon request. 5.1.3 Environmental specifications Humidity limits...
-
Page 12: Rosemount Series 78 Platinum Rtd
100 °C (212 °F) ±0.75 °C (±1.35 °F) 300 °C (572 °F) ±0.95 °C (±1.71 °F) 400 °C (752 °F) Maximum hysteresis Single- and dual-element, Nominal R0 100 Ohm Nominal alpha 0.00385 Ω/ Ω °C: ±0.04 percent of range Emerson.com/Rosemount... - Page 13 March 2021 Quick Start Guide Time constant 4 seconds maximum required to reach 63.2 percent sensor response in water flowing at 3 ft/s (0.91 m/s). Self heating 18 mW minimum power dissipation required to cause a 1 °C (1.8 °F) temperature measurement error in water flowing at 3 ft/s.
- Page 14 Quick Start Guide March 2021 6.1.4 Functional specifications Power Overvoltage Category I Environmental Pollution Degree 4 Emerson.com/Rosemount...
-
Page 15: Rosemount Series 183 Thermocouple
March 2021 Quick Start Guide Rosemount Series 183 Thermocouple Specifications 7.1.1 Performance Specifications The thermoelectric current relationship in a thermocouple is standardized and defined by ASTM E-230. All Rosemount Series 183 Thermocouples conform to these standards with “special limits of error” accuracy. The particular characteristics of each ISA type thermocouple are outlined in Table 7-1. - Page 16 Table 7-1: Characteristics of Series 183 Thermocouple Types Thermocouple Temperature Limits of error thermocouple wire alloys range (interchangeability) types °C °F Iron/ 0 to 32 to ±1.1 °C (2.0 °F) or ±0.4% of Constantan 1400 measured temperature, whichever is greater Emerson.com/Rosemount...
- Page 17 March 2021 Quick Start Guide Table 7-1: Characteristics of Series 183 Thermocouple Types (continued) Thermocouple Temperature Limits of error thermocouple wire alloys range (interchangeability) types °C °F Chromel/ 0 to 32 to ±1.1 °C (2.0 °F) or ±0.4% of Alumel 1150 2102 measured temperature,...
-
Page 18: Rosemount Series 68Q Sanitary Platinum Rtd
100 Vdc at room temperature Surface Finish standard finish on product contact surfaces. Meets 3A requirements. high mechanical polish available with option code HP. 8.1.2 Environmental specifications Humidity limits Lead seal is capable of withstanding 100 percent relative humidity. Emerson.com/Rosemount... - Page 19 March 2021 Quick Start Guide Quality assurance Each sensor is subjected to a resistance accuracy test at 0 °C. 8.1.3 Physical specifications Sheath material 316L SST Lead wire PTFE-insulated, nickel-coated, 24-gauge stranded copper wire Identification data The model and serial numbers and up to six lines of permanent tagging information are etched on each sensor adapter.
-
Page 20: Rosemount Series 58C Platinum Rtd
Each sensor is subjected to a resistance accuracy test at 0 °C (32 °F) and an insulation resistance test. 9.1.3 Physical specifications Sheath material 316 SST Lead wires PTFE-insulated, nickel-coated, 24-gauge stranded copper wire 9.1.4 Functional specifications Power Overvoltage Category I Environmental Pollution Degree 4 Emerson.com/Rosemount... -
Page 21: Product Certifications
European Directive Information A copy of the EC Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EC Declaration of Conformity can be found at Emerson.com/Rosemount. 10.2 Ordinary Location Certification... - Page 22 DIN Style Sensor probe does not exceed 130 °C. 7. Non-Standard Paint options may cause risk from electrostatic discharge. Avoid installations that cause electrostatic build-up on painted surfaces, and only clean the painted surfaces with a damp Emerson.com/Rosemount...
- Page 23 March 2021 Quick Start Guide cloth. If paint is ordered through a special option code, contact the manufacturer for more information. 10.7 International E7 IECEx Flameproof Certificate IECEx FMG 12.0022X Standards IEC 60079-0:2011, IEC 60079-1:2014-06 Markings Ex db IIC T6…T1 Gb, T6(-50 °C ≤ T ≤...
- Page 24 5. Care shall be taken by the end user to ensure that the external surface temperature on the equipment and the neck of DIN Style Sensor probe does not exceed 130 °C. 6. Consult the manufacturer if dimensional information on the flameproof joints is necessary. Emerson.com/Rosemount...
- Page 25 March 2021 Quick Start Guide 10.9 EM Technical Regulations Customs Union (EAC) Flameproof Markings 1Ex db IIC T6…T1 Gb X; T6 (-55 to 40 °C); T5..T1 (-55 to 60 °C); IP66, IP68 Special Condition for Safe Use(X): See certificate. 10.10 Korea EP Korea Explosionproof/Flameproof Certificate 13-KB4BO-0560X Markings...
- Page 26 Table 10-3: Transmitter with LCD Cover - Process Temperature (°C) Dust Extension length T4...T1 T130 °C No extension 3-in. extension 6-in. extension 9-in. extension Table 10-4: Transmitter with LCD Cover - Service Temperature (°C) Dust Extension length T4...T1 T130 °C No extension Emerson.com/Rosemount...
- Page 27 March 2021 Quick Start Guide 10.13 Declaration of Conformity Figure 10-1: Rosemount Series 68, 78, and 183 Declaration of Conformity Quick Start Guide...
- Page 28 Quick Start Guide March 2021 Emerson.com/Rosemount...
- Page 29 March 2021 Quick Start Guide 10.14 China RoHS 0068, 0078 and 0183 2/9/2021 0068, 0078 and 0183 Temperature China RoHS Sensors List of 0068, 0078 and 0183 Temperature Sensor Parts with China RoHS Concentration above MCVs / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name...
- Page 30 Quick Start Guide March 2021 Emerson.com/Rosemount...
- Page 31 March 2021 Quick Start Guide Quick Start Guide...
- Page 32 00825-0300-2654, Rev. GB March 2021 © 2021 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies.
