Quick Start Guide
00825-0400-2654, Rev BC
March 2019
Rosemount
214C Sensor

Advertisement

loading

Subscribe to Our Youtube Channel

Summary of Contents for Emerson Rosemount 214C

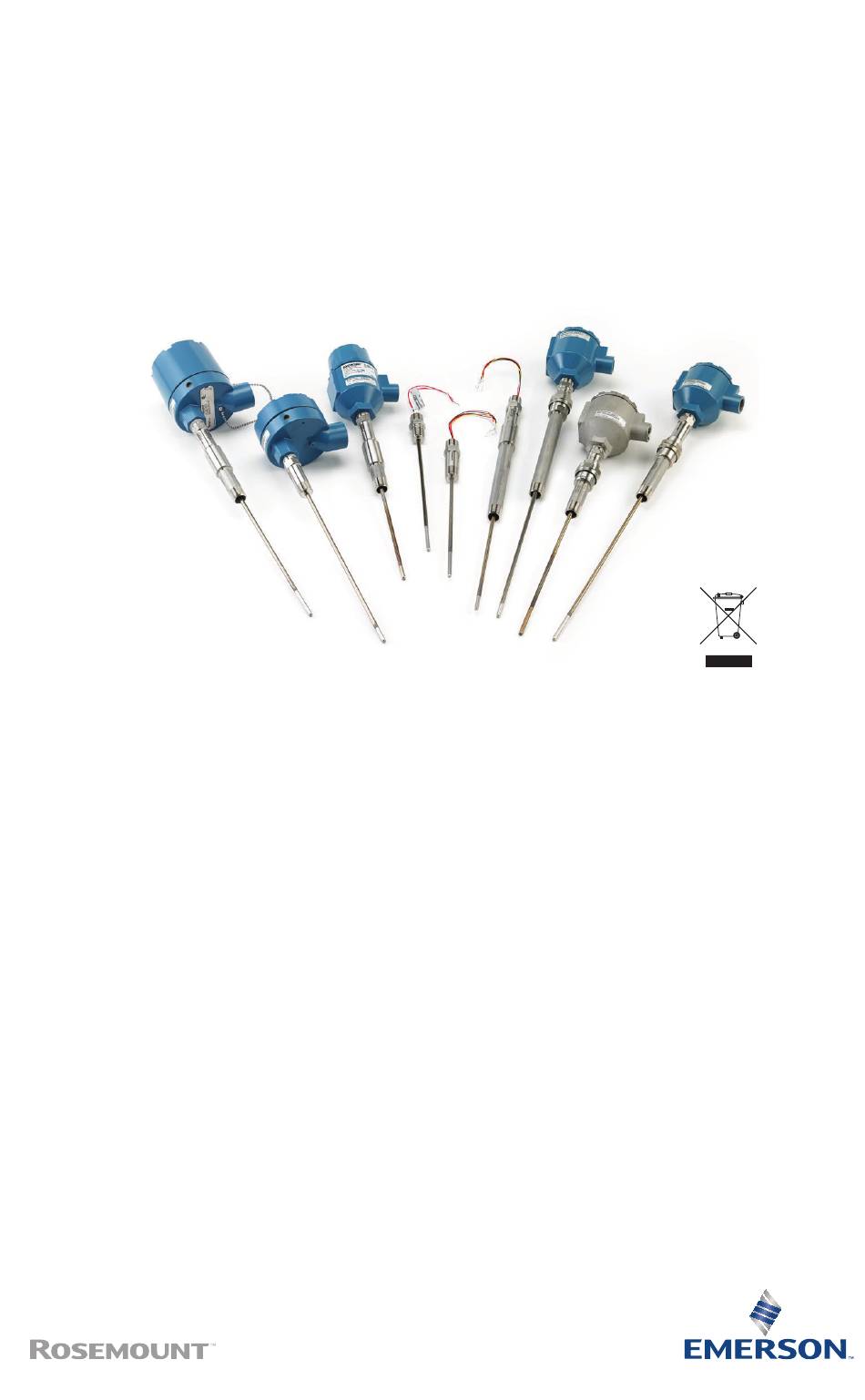

  • Page 1 Quick Start Guide 00825-0400-2654, Rev BC March 2019 ™ Rosemount 214C Sensor...
  • Page 2: Table Of Contents

    Only use plugs, adapters, glands, or conduit with a compatible thread form when closing these entries. Contents Wiring diagram for RTDs........ 3 Installation drawings........19 Wiring diagram for thermocouples....4 Declaration of Conformity......20 Product certifications........5 China RoHS..........22 Rosemount 214C...
  • Page 3: Wiring Diagram For Rtds

    March 2019 Quick Start Guide Wiring diagram for RTDs Figure 1-1: RTD Lead Wire Configuration per IEC 60751 Single element, 3-wire Single element, 4-wire Dual element, 3-wire Black Black White White Yellow White White Note To configure a single element, 4-wire RTD as a 3-wire system, connect only one white lead.
  • Page 4: Wiring Diagram For Thermocouples

    ASTM E- 230 thermocouple colors Type POS (+) NEG (-) POS (+) NEG (-) Black White White Green White Yellow Brown White Blue Note Dual thermocouple sensors are shipped with one pair of the wires shrink wrapped together. Rosemount 214C...
  • Page 5: Product Certifications

    European Directive information A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary Location Certification ™...
  • Page 6 Un-painted aluminum enclosures are Type 4 rated. *Assembly is not Canada Explosionproof (E6) rated to Group B if a 0079 connection head is used. Europe 3.2.1 E1 ATEX Flameproof Certificate DEMKO 16 ATEX 1677X Rosemount 214C...
  • Page 7 1. Refer to certificate for details regarding process and ambient temperature limits. 2. When the Rosemount 214C sensor is provided with an enclosure with a display cover, the maximum ambient shall be 95 °C. 3. The non-metallic label on the device may store an electrostatic charge and become a source of ignition in Group III atmospheres.
  • Page 8 3. Unused apertures shall be closed with suitable blanking elements. 4. The enclosures may be provided with up to three ½–14 NPT, ¾–14 NPT, or M20 x 1.5 entries, with location of the entries specified in the installation instructions document. Rosemount 214C...
  • Page 9 4 J. 5. Flameproof joints are not intended for repair. 6. The stand-alone Rosemount 214C sensors without an enclosure must be assembled to a suitable Ex certified enclosure of a volume no greater than 0.55 L to maintain the types of protection “db” and “tb”.
  • Page 10 1. Refer to certificate for details regarding process and ambient temperature limits. 2. When the Rosemount 214C sensor is provided with an enclosure with a display cover, the maximum ambient shall be 95 °C. 3. The non-metallic label on the device may store an electrostatic charge and become a source of ignition in Group III atmospheres.
  • Page 11 1. Refer to certificate for details regarding process and ambient temperature limits. 2. When the Rosemount 214C sensor is provided with an enclosure with a display cover, the maximum ambient shall be 95 °C. 3. The non-metallic label on the device may store an electrostatic charge and become a source of ignition in Group III atmospheres.
  • Page 12 1. Refer to certificate for details regarding process and ambient temperature limits. 2. When the Rosemount 214C sensor is provided with an enclosure with a display cover, the maximum ambient shall be 95 °C. 3. The non-metallic label on the device may store an electrostatic charge and become a source of ignition in Group III atmospheres.
  • Page 13 March 2019 Quick Start Guide 3.4.2 I2 Brazil Intrinsic Safety Certificate UL-BR 18.0257X Standards ABNT NBR IEC 60079-0:2013, ABNT NBR IEC 60079-11:2013 Markings Ex ia IIC T6…T5 Ga Thermocouples: P = 500 mW, T6(-60 °C≤T ≤+70 °C) RTDs: P = 192 mW, T6(-60 °C≤T ≤+70 °C) P 290 mW, T6(-60 °C≤T ≤+60 °C), T5(-60 °C≤T...
  • Page 14 GB3836.13-2013“爆炸性环境 第 13 部分:设备的修理、检修、修 复和改造”、GB3836.15-2000“爆炸性气体环境用电气设备 第 15 部 分:危险场所电气安装(煤矿除外)”、GB3836.16-2006“爆炸性气 体环境用电气设备 第 16 部分:电气装置的检查和维护(煤矿除 外)”、GB50257-2014“电气装置安装工程爆炸和火灾危险环境电力 装置施工及验收规范”和 GB15577-2007“粉尘防爆安全规程”、 GB12476.2-2010“可燃性粉尘环境用电气设备 第 2 部分:选型和安 装”的有关规定. 3.5.2 I3 China Intrinsic Safety Certificate GYJ18.1024X Standards GB 3836.1-2010, GB 3836.4-2010, GB 3836.20-2010 Markings Ex ia IIC T5/T6 Ga Rosemount 214C...
  • Page 15 March 2019 Quick Start Guide 产品安全使用特殊条件 证书编号后缀“X”表明产品具有安全使用特殊条件:产品必须安装于具有 IP20 外壳防护等级的外壳内方可使用. 产品使用注意事项 1. 产品使用环境温度和温度组别的关系为: 传感器类型 最大输入功率 Pi 温度组别 使用环境温度 (mW) 热电偶 -60℃~+70℃ -60℃~+70℃ -60℃~+60℃ -60℃~+70℃ 2. 本安电气参数: 热电偶: 最高输入电 最大输入电 最大输入功 最大内部等效参数 压 流 率 (mA) (mW) (pF) (nH) 最高输出电压 最大输出电流 最大输出功率 (mA) (mW) RTD:...
  • Page 16 防爆合格证编号 644 系列 GYJ15.1502 248 系列 GYJ15.1089 4. 现场安装时,电缆引入口须选用经国家指定的防爆检验机构检验认 可、具有 Ex eⅡC Gb 或 Ex nR ⅡC Gc 防爆等级的电缆引入装置或堵封 件,冗余电缆引入口须用堵封件有效密封。电缆引入装置或封堵件 的安装使用必须遵守其使用说明书的要求并保证外壳防护等级达到 IP54 (符合 GB4208-2008 标准要求)以上. 5. 用户不得自行更换该产品的零部件,应会同产品制造商共同解决运 行中出现的故障,以杜绝损坏现象的发生. 6. 产品的安装、使用和维护应同时遵守产品使用说明书、 GB3836.13-2013“爆炸性环境 第 13 部分:设备的修理、检修、修 复和改造”、GB3836.15-2000“爆炸性气体环境用电气设备 第 15 部 Rosemount 214C...
  • Page 17 March 2019 Quick Start Guide 分:危险场所电气安装(煤矿除外)”、GB3836.16-2006“爆炸性气 体环境用电气设备 第 16 部分:电气装置的检查和维护(煤矿除 外)”和 GB50257-2014“电气装置安装工程爆炸和火灾危险环境电 力装置施工及验收规范”的有关规定. Korea 3.6.1 EP Korea Flameproof Certificate 17-KA4BO-0305X Markings Ex d IIC T6…T1, T6(-50 °C≤T ≤+80 °C), T5(-50 °C≤T ≤+95° C), T4…T1(-50 °C≤T ≤+100 °C) Special Conditions for Safe Use (X): 1.
  • Page 18 Combination of E5 and E6 Combination of E1 and E5 Combination of E1, E5, and E6 Combination of E1, E5, E6, and E7 Combination of EM and IM Combination of N1, N5, N6, and N7s Combination of EP and IP Rosemount 214C...
  • Page 19: Installation Drawings

    March 2019 Quick Start Guide Installation drawings Figure 4-1: Rosemount 214C Hazardous Location (00214-1030) Quick Start Guide...
  • Page 20: Declaration Of Conformity

    Quick Start Guide March 2019 Declaration of Conformity Rosemount 214C...
  • Page 21 March 2019 Quick Start Guide Quick Start Guide...
  • Page 22: China Rohs

    O: Indicate that said hazardous substance in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572. GB/T 26572 X: Indicate that said hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572. Rosemount 214C...
  • Page 23 March 2019 Quick Start Guide Quick Start Guide...
  • Page 24 The Emerson logo is a Facebook.com/Rosemount trademark and service mark of Emerson Electric Youtube.com/user/ Co. Rosemount is mark of one of the Emerson RosemountMeasurement family of companies. All other marks are the Google.com/+RosemountMeasurement property of their respective owners.
