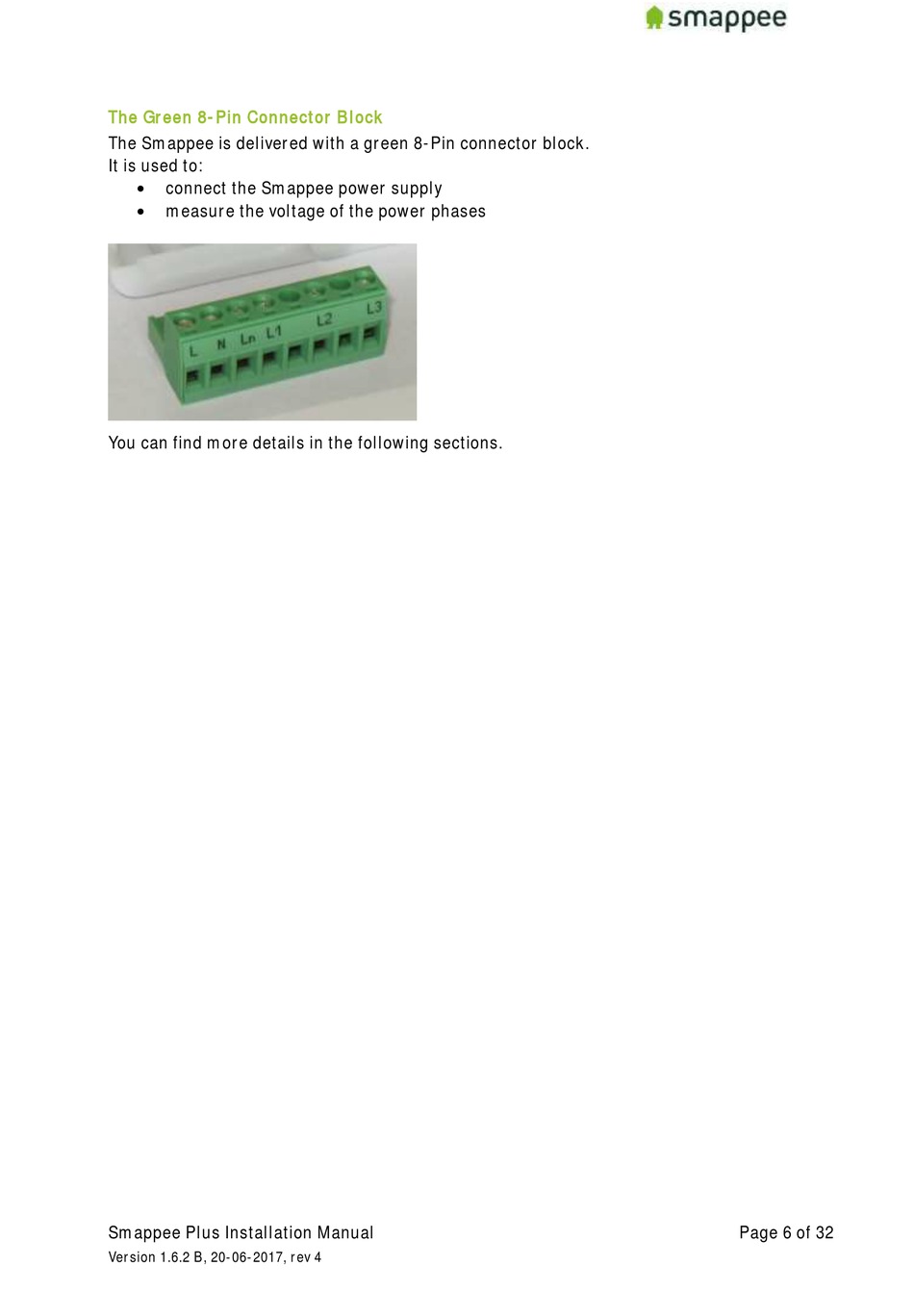

The Green 8-Pin Connector Block
The Smappee is delivered with a green 8-Pin connector block.
It is used to:
connect the Smappee power supply
measure the voltage of the power phases
You can find more details in the following sections.
Smappee Plus Installation Manual
Version 1.6.2 B, 20-06-2017, rev 4
Page 6 of 32
