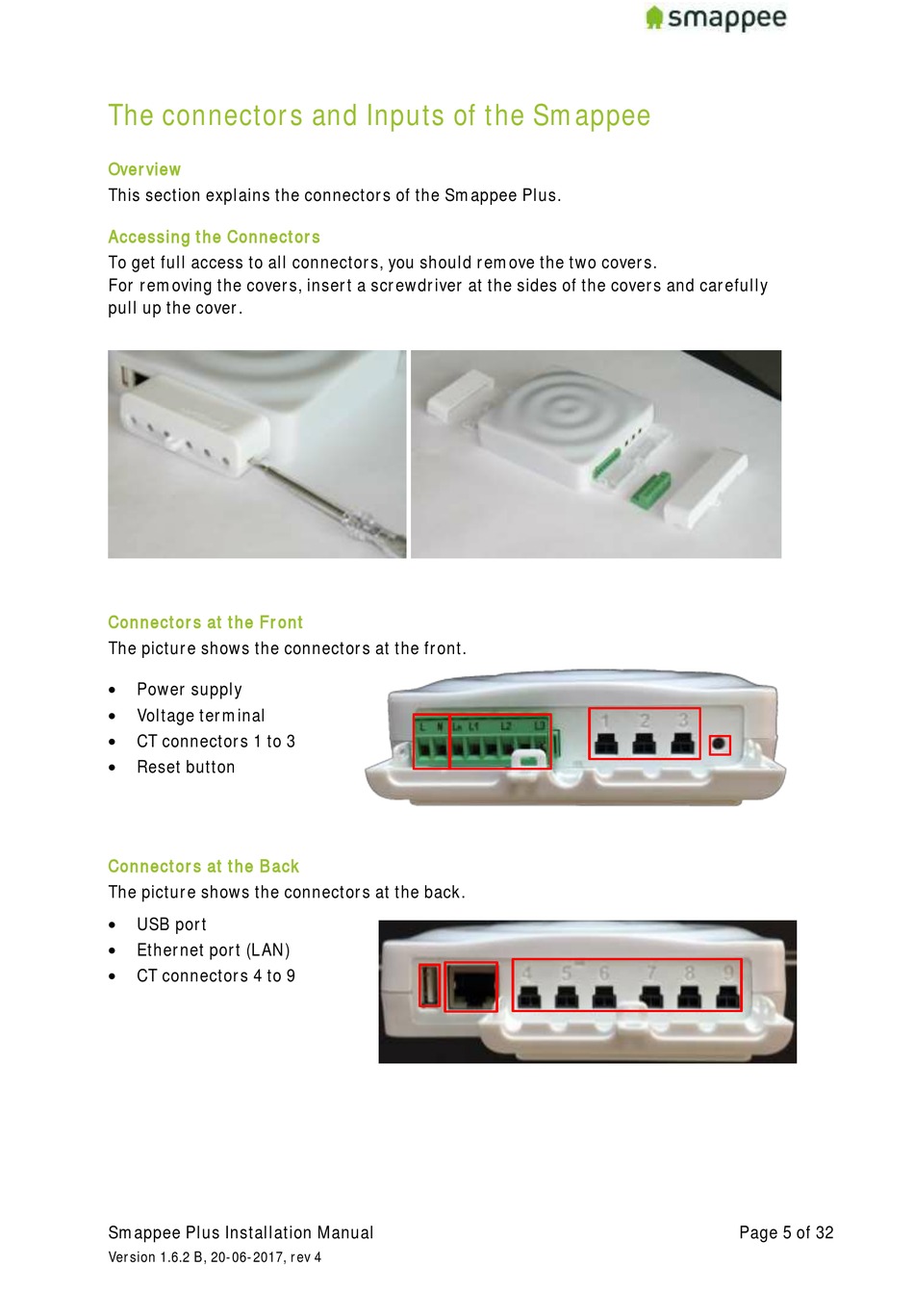

The connectors and Inputs of the Smappee

Overview
This section explains the connectors of the Smappee Plus.
Accessing the Connectors
To get full access to all connectors, you should remove the two covers.
For removing the covers, insert a screwdriver at the sides of the covers and carefully
pull up the cover.
Connectors at the Front
The picture shows the connectors at the front.
 Power supply
Voltage terminal

CT connectors 1 to 3

 Reset button
Connectors at the Back
The picture shows the connectors at the back.
 USB port
Ethernet port (LAN)

CT connectors 4 to 9

