Current Transformer Variants - Smappee Plus Installation Manual

Current Transformer Variants

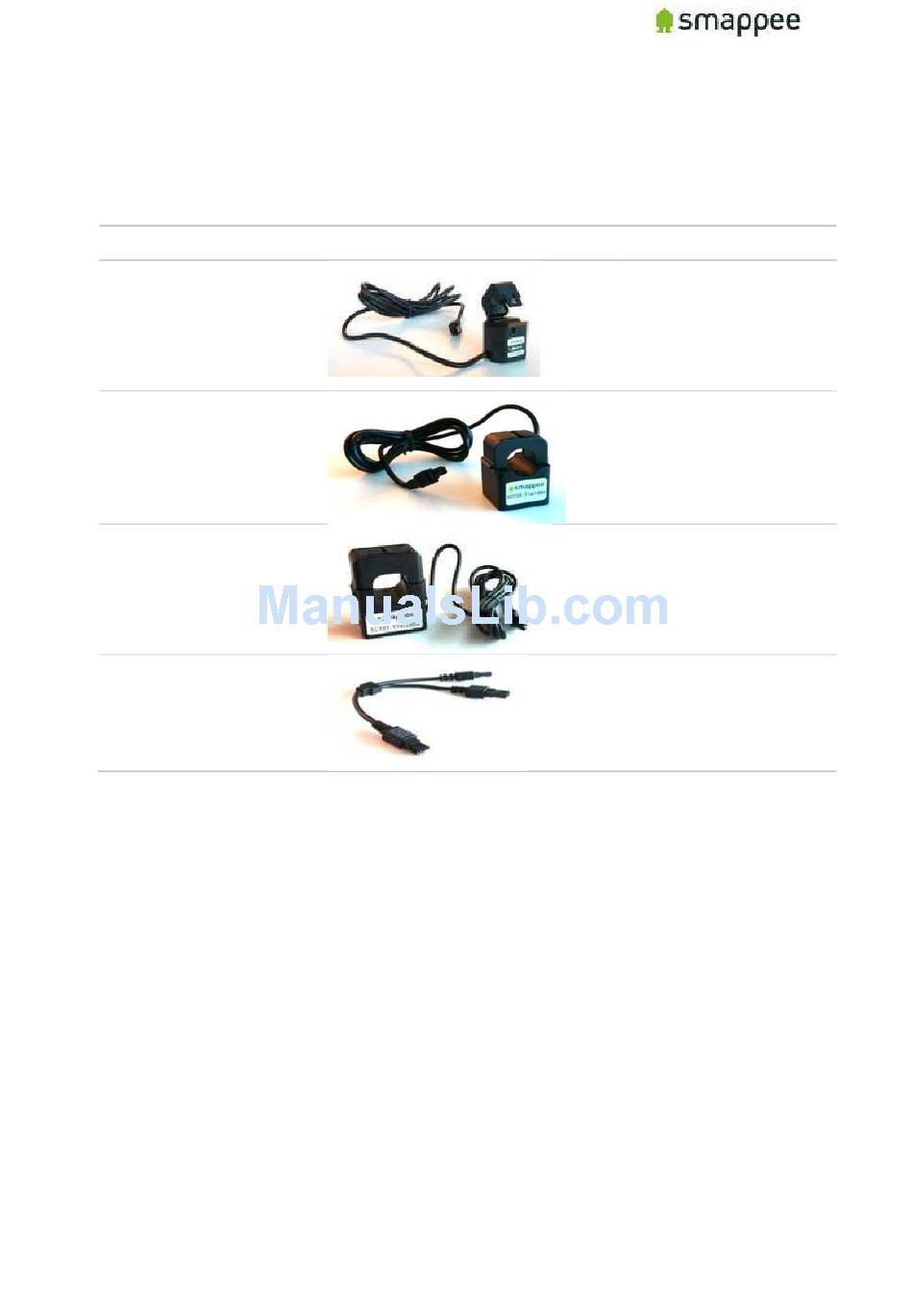

The table shows the current transformers that can be used with the Smappee Plus.
Smappee supports only the CTs listed below. No other CTs should be used!
Name/type
Current Transformer
SCT01-T10/50A
Current Transformer
SCT01-T16/100A
Current Transformer
SCT01-T24/200A
Y-cable
AC-YC
The length of a CT cable is 1.5 m (4.9 ft).
Legend:
MC: maximum current
MAX OV: Maximum output voltage
MAX cable Ø: Maximum phase cable diameter
Smappee Plus Installation Manual
Version 1.6.2 B, 20-06-2017, rev 4
Picture Specs
MC: 50A
MAX OV : 333 mV
MAX cable Ø: 10 mm
(0.39 in)
MC: 100A
MAX OV : 666 mV
MAX cable Ø: 16mm,
(0.63 in)
MC: 200A
MAX OV : 1332 mV
MAX cable Ø: 24mm,
(0.94 in)
Y-cable for combining
two current
transformers.
Page 12 of 32
