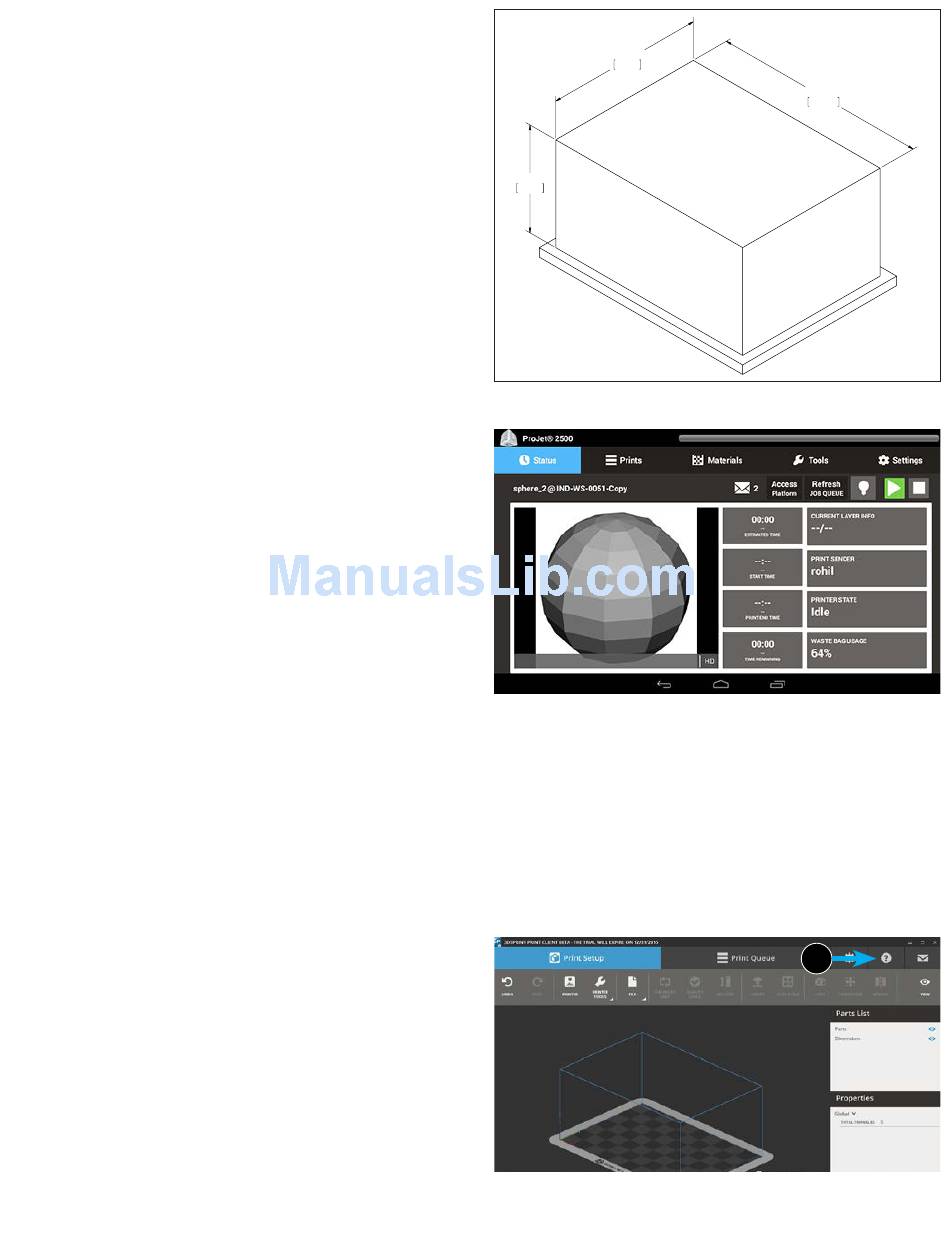

PRINTING AREA

The actual area that you can print a job consists of the length x width
plus the maximum height of a job . This diagram illustrates exactly
what the maximum build area is for the ProJet 2500 .

3D PRINTER SYSTEM COMPONENTS

For 3D printer system requirements, consult the
Requirements Guide .

User Interface

The User Interface consists of a tablet built into the top of the printer
to the right. There are five main screens that contain sub menus that
allow the user to do a variety of things through the tablet. These five
screens and their menus are:
Status Screen
1 .
• Current Layer Info
• Print Sender
• Printer State
• Waste Bag Usage
Prints Screen
2 .
• Opens Print Queue for the Printer
3 . Materials Screen
• Material Status
• Part Message
• Support Message
Tools Screen
4 .
• Diagnostics
• Material Change Wizard
• Printer Info
Settings Screen
5 .
• Admin Settings
• Email Alerts
• Alert Settings
These are the only things that can be done through the UI . All other
operations must be done through a computer/laptop using the
TM
3DSPRINT software . For complete information on using
(6) file can be accessed through the icon in
3DSPRINT the Help
the software .
12
Facility
• Access Platform
• Play
• Refresh Job Queue
Email Notification
•
• Printer Usage
• Printer Shutdown
• Network Settings
• Printer Connection
212mm
8.35in
Need updated diagram from Wilsonville
144mm
5.67in
288mm
11.34in
6
