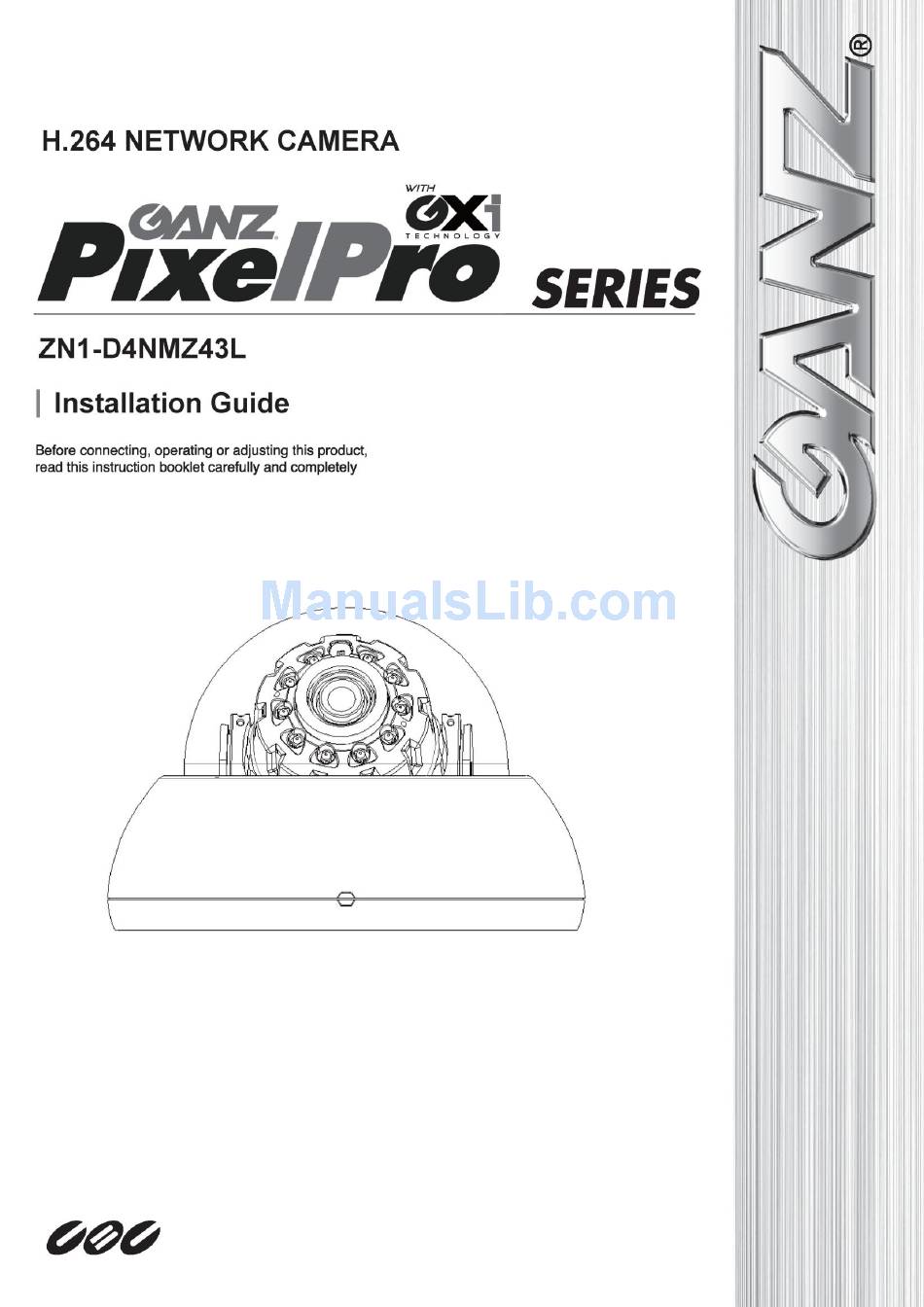

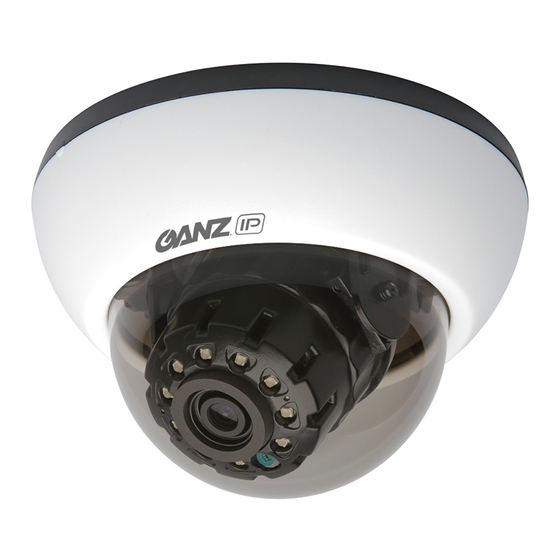

- Page 1 PixelPro GXi Series ZN1-D4NMZ43L Installation Guide 03-2014-B...
-
Page 2: Precaution
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide Precaution Please read this manual carefully before installing the unit. Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the camera in a place exposed to direct sunlight. ... -
Page 3: Table Of Contents
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. INSTALLATION ...................... 7 4.1. Installing the camera ......................7 4.2. Adjusting angle of the camera ..................10 4.3. -
Page 4: Features
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide 1. FEATURES Camera SONY EXMOR 1/2.9” 1080p CMOS Image Sensor True Day / Night DC Auto Iris Lens Embedded IR Illuminator Remote Zoom/Focus Control (One Click Focus) Video ... -
Page 5: Package Contents
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. 구성 The package contains: Camera DC Power Adaptor 구성 Universal Plugs Screws and anchor blocks Quick Installation Guide Camera Opener 구성... -
Page 6: Part Names
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide FUNCTION 3. PART NAMES ⑤ ③ ⑥ ③ ② ④ * Models herein and their appearance are subject to change without any prior notice. ① Reset button Use the button to restart the device or to reset it to Factory Default. Refer to 6.3. -
Page 7: Installation
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide 4. INSTALLATION 4.1. Installing the camera 1) Place the installation template (outline shown on the next page) included in the package on the desired installation surface. 2) Drill holes in correct positions based on the template paper, and insert anchor blocks into the holes. - Page 8 PixelPro GXi Series ZN1-D4NMZ43L Installation Guide How to close the dome cover When placing the dome cover, look for carved trapezoid mark on both dome cover and main body. Both trapezoids should be aligned together when placing DIMENSION the cover like the image below. 100,339 Caution 100,000...
- Page 9 PixelPro GXi Series ZN1-D4NMZ43L Installation Guide Installation Template (Unit: mm) Installation template’s image size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the package Caution separately. 03-2014-B...
-
Page 10: Adjusting Angle Of The Camera
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide 4.2. Adjusting angle of the camera 1) Adjust the lens to the desired position by manually moving the camera gimbal and the horizontal platform in the following directions. 위치고정 ② 좌 ①To adjust lens position, rotate the camera gimbal. 우... -
Page 11: Adjusting Zoom And Focus
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide 4.3. Adjusting Zoom and Focus *To be able to adjust zoom and focus, it is necessary to connect the device to a network. Please refer to エラー! 参照元が見つかりません。 for the detailed method. Once the device is on the network and the webpage is open, go to Setup> Video & Audio> Zoom/Focus. -
Page 12: Setting The Image Attribute
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide 4.4. Setting the Image Attribute Through the camera’s webpage, users can configure image settings. The menu of image attribute is available under Video Appearance menu in Setup > Video & Audio > Camera. The following features can be adjusted: Brightness, Contrast, Saturation, Sharpness and Orientation For more detailed information, refer to the provided “PixelPro GXi series Web Page User's Manual”. -
Page 13: Connections
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide FUNCTION 5. CONNECTIONS ① ③ ② ① LAN Connection This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Use the Ethernet cable (RJ45) to connect the device to a hub or a router in the network. When the LAN cable is connected, the orange LED light will become solid and green LED will blink every 250 millisecond. - Page 14 PixelPro GXi Series ZN1-D4NMZ43L Installation Guide ② Power Connection The camera can be powered from either 12VDC or PoE. If the camera is powered via PoE, refer to Appendix (B). Power over Ethernet for more details. To operate your camera using 12VDC, make sure the polarity is correct before connecting the power cable.
-
Page 15: Configuration
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 16: Custom Ip Environment
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide 6.1.2. Custom IP Environment IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. To modify the device’s default IP address for customized network area;... -
Page 17: View Video On Web Page
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click “Install” to proceed. When Setup installation pop-up window appears, click “Install”... -
Page 18: View Video Using Ipadmin Tool
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. 2. -
Page 19: Reboot
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide 6.3. Reboot Perform the following procedures to reset your device: Press the Reset button, and hold it for 2 seconds while the device is in use. Wait for the system to reboot. Please do not hold the reset button for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings. -
Page 20: Safe Mode
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide 6.5. Safe Mode What is Safe Mode? Your IP camera or encoder could encounter an unexpected occasion such as broken firmware file or uncompleted loading of firmware file during system booting. To restore the device from the occasions, the device provides the emergency firmware as a factory default. - Page 21 PixelPro GXi Series ZN1-D4NMZ43L Installation Guide There is another method to update firmware, which is using IPAdminTool. Please refer to ‘IPAdminTool User’s Manual.pdf’ for the detailed procedure. Note If your device is still at safe mode after trying to update firmware, please contact your local agency to get further assistance.
-
Page 22: Appendix (A): Specifications
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor SONY EXMOR 1/2.9” 1080p CMOS CMOS Effective Pixels 1920x1080 Scanning system Progressive scanning Resolution 1920 x 1080 Min. Color: 1.0 lux ELECTRICAL Illumination BW: 0 lux (IR LED ON) AGC Control Auto 3.0(w) –... -
Page 23: Electrical Characteristics
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide Electrical Characteristics Power Source 12VDC / PoE Power Consumption 5.6W @ 12VDC Video Output Audio Input Audio Output Environment Condition Operating Range Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Operating Humidity Up to 85% RH Mechanical Condition Material Plastic (ABS) -
Page 24: Appendix (B): Power Over Ethernet
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. The IEEE 802.3af-2003 standard allows up to 15.4 W of power the device. -
Page 25: Appendix (C): Dimensions
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 03-2014-B... -
Page 26: Appendix (D): Hexadecimal-Decimal Conversion Table
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when converting the MAC address of the device to the IP address. Hex Dec 03-2014-B... -
Page 27: Revision History
PixelPro GXi Series ZN1-D4NMZ43L Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 09-2013-A 09/05/2013 First release version 03-2014-A 03/25/2014 Correct explanation for PoE 03-2014-B 03/31/2014 Add lens adjustment 03-2014-B...
