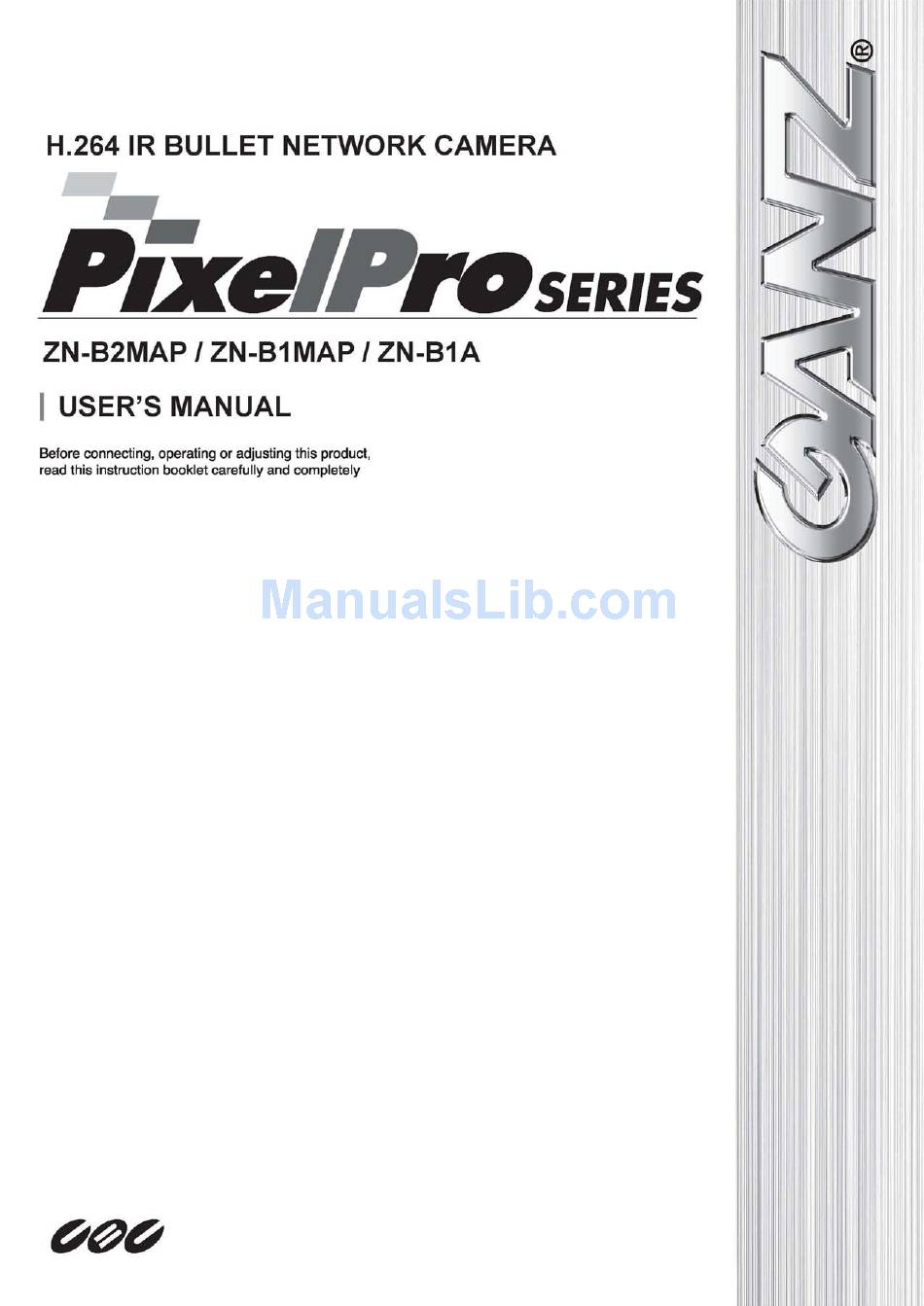

- Page 1 PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30...
-
Page 2: Table Of Contents
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 Contents 1. Product Features ..................... 4 2. Install camera ....................7 3. Accessing the Camera ..................8 2.1 Access from a Web Browser ................8 2.2 Accessing the Camera from the Internet ............8 2.3 Adjusting the Camera Direction ..............9 2.4 Adjusting the Image and Focus ..............9 2.6 Video stream types ................... - Page 3 PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 11. Network ..................... 28 11.1 IP Setup ....................28 11.2 Service Port ................... 30 11.3 RTP ...................... 31 11.4 E-mail ....................32 11.5 DDNS ....................33 11.6 UPnP ....................34 12. System ....................... 36 12.1 User ..................... 36 12.2 Date &...
-
Page 4: Product Features

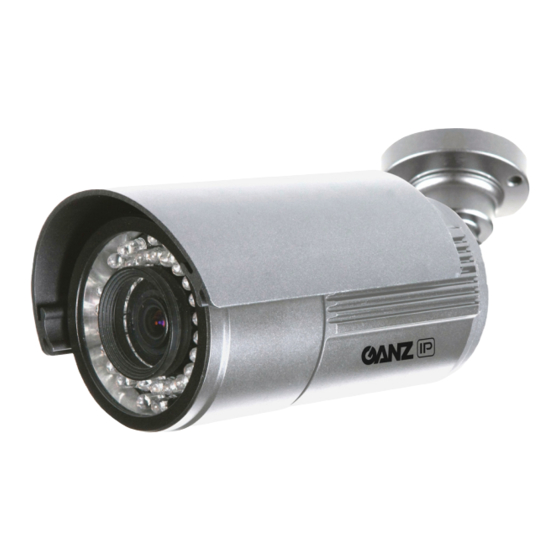

Ver1.30 1. Product Features The GANZ PixelPro Series HD / Megapixel IP camera (ZN-Bx) is a high performance H.264 network camera, designed for demanding security installations. It delivers crisp, clear images, disclosing every detail, thanks to its top quality progressive-scan CMOS sensor and advanced image processing. - Page 5 (10BaseT/100BaseTX Ethernet). This socket could also be used to power the GANZ PixelPro via Power over Ethernet (PoE). The camera auto-senses the correct power level when using a PoE switch, router or injector.
- Page 6 PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 6. Micro SD card Save snapshot images onto a Micro SD card. 7. Reset Button Press this button to restore the camera configuration to its factory default settings. 8. Reset LED 9. Status LED Color Indication System Status Network connection is established.
-
Page 7: Install Camera
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 2. Install camera Mounting to a ceiling / wall 1) Secure the camera to ceiling or wall with three supplied tapping screws like below. -
Page 8: Accessing The Camera
ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 3. Accessing the Camera The GANZ PixelPro can be accessed with most standard operating systems and browsers. The recommended browser is Internet Explorer for Windows. 2.1 Access from a Web Browser Launch a web browser (Internet Explorer or compatible equivalent) Enter the IP address (or name server address) of the camera into the Address Bar. -
Page 9: Adjusting The Camera Direction
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 2.3 Adjusting the Camera Direction The camera body can be set with bracket movement. 2.4 Adjusting the Image and Focus To adjust the position of the lens: ZN-B1A (Normal Lens) 1. Open the Live View page in your web browser. - Select the Setup tab, and open the Installation page. -
Page 10: Video Stream Types
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 2.5 Live View Client PC Speaker (enable / disable) Client PC Microphone (enable / disable) Digital Zoom Snapshot Full Screen Video Stream Change (1 Stream <> 2 Stream) Play: Start Video Stream Stop: Stop Streaming NOTE: It is possible that not all the buttons described below will be visible unless the Live View page has been customized to display them. -
Page 11: How To Stream H.264
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 H.264 Protocols & Communication Methods (continued) Unicasting is communication between a single sender and a single receiver over a network. This means that the video stream is transmitted independently to each user, and each user receives their own video stream. -
Page 12: Setup
Ver1.30 3. Setup The GANZ PixelPro is configured from the Setup tab, which is available on the upper-left hand side in the web interface. This configuration could be performed by: - Administrators, who have unrestricted access to all settings under the Setup tab. -
Page 13: Installation
ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 4. Installation The following descriptions show examples of some of the features available with GANZ PixelPro. 4.1 Installation Mode Installation Mode allows use of the analog BNC output from the camera to connect the camera to a service monitor, in order to adjust the positioning of the camera and focus the lens. - Page 14 The H.264 standard provides the scope for a large range of different coding tools for use by various applications in different situations, and the GANZ PixelPro provides certain subsets of these tools. Using H.264, it is also possible to control the bit rate, which in turn allows the amount of bandwidth usage to be controlled.
- Page 15 PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 < Output resolution table for 1080p (Full HD) model > Second Stream First Stream 1080p (1920 x 1080) 1.3MP (1280 x 1024) 720p (1280 x 720) ** 720p (1280 x 720) VGA (640 x 480) QVGA (320 x 240) 720p Wide Mode 720p Wide Mode **...
-
Page 16: Camera
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 5.2 Camera This section allows you to adjust various camera settings. 5.2.1 Exposure Control Exposure Mode (P-Iris Model) AUTO : Use this setting for automatic exposure control. MANUAL: Use these settings to control camera exposure manually. To compensate for poor lighting conditions, you can adjust the Color level, Brightness, Sharpness, Contrast, Exposure control, and DC-Iris. -
Page 17: Day & Night Control
The GANZ PixelPro camera can be set to automatically identify the light source and compensate for its color temperature. If necessary, the type of light source could be set manually. -
Page 18: Audio
Default : Back to original factory default position. 6. Audio The GANZ PixelPro can transmit audio to other clients, and can also play audio received from other clients. This section describes the basic audio settings, such as setting the communication codec, and adjusting the sound levels for the microphone and speakers connected to the camera. -
Page 19: Live
GANZ PixelPro can support up to 10 simultaneous users via unicast. With multicasting, GANZ PixelPro can support an unlimited number of users. If supported on the network, consider using the multicast function, as the bandwidth consumption will be much lower. -
Page 20: Sd Card
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 8. SD Card 8.1 Configuration SD Card Configuration This configuration page allows you to save still images to the Micro SD (SDHC) card. NOTE: This function cannot be used when Installation mode is turned ON. Set the first stream to 1280x720 or 1280x720(wide) in the Video >... -
Page 21: Event
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 8.2 Event Event SD Writing You can configure the camera to store still images based on events such as Alarm In and Motion detection. NOTE: This function cannot be used when Installation mode is turned ON. Set the first stream to 1280x720 or 1280x720(wide) in the Video >... -
Page 22: Periodical
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 8.3 Periodical Periodical SD Writing It is setting page to save the still images in the Micro SD card periodically. NOTE: This function cannot be used when Installation mode is turned ON. Set the first stream to 1280x720 or 1280x720(wide) in the Video >... -
Page 23: Ftp
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 9. FTP 9.1 Configuration Server Configuration Enable / Disable the FTP function to download saved content from the SD Card remotely. When it is Enabled, the FTP client can download the saved content without removing the SD Card. Client Configuration Allows transmission of still images to remote sites, using the FTP server. -
Page 24: Periodical
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 Event FTP Sending Allows transmission of still images to the FTP server at remote sites when an event occurs. NOTE: This function cannot be used when Installation mode is turned ON. Set the first stream to 1280x720 or 1280x720(wide) in the Video >... -
Page 25: Event
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 10. Event 10.1 Alarm Port Alarm Input (dry contact) Used for connecting external alarm contacts and triggering specific alarm-based events. The input is typically connected to a motion detector or any other external security device, so that recording can be triggered and/or still images could be recorded and/or uploaded whenever the sensor is activated. -
Page 26: Motion
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 10.2 Motion Motion Detection Motion detection is used to generate an alarm whenever movement occurs within the video image. A total of 4 motion detection zones can be configured. Configuring Motion Detection Click Motion Detection in the Event Config menu. Select an area for motion detection from Area 1 to Area 4. -
Page 27: Mapping
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 10.3 Mapping Event Mapping It is possible to define conditions that would cause the camera to respond with certain actions. A triggered event happens as a result of an event which is mapped within this menu. This could be caused by motion detection or an external alarm input. -
Page 28: Network
11.1 IP Setup IP Address Configuration The GANZ PixelPro supports both IP version 4 and IP version 6 (IPv6 will be supported as of v3.0). Both versions may be enabled simultaneously, and at least one version should be always enabled. - Page 29 PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 How to Assign an IP Address Default setting is set to “DHCP” and “UPnP” function is set to ON. If your network has a DHCP server and the UPnP function is enabled on your PC, you can find the camera in “My Network”. Execute the PixelPro Discovery Tool (from the Installation CD).
-
Page 30: Service Port
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 11.2 Service Port Service Port HTTP port The default HTTP port number (80) could be changed to any port within the valid port range (1-65535). This is useful for simple port mapping. RTSP port The RTSP protocol allows a connecting client to start an H.264 stream. Enter the RTSP port number to use. -
Page 31: Rtp
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 11.3 RTP RTP Port Range The IP address, port number, and Time-To-Live (TTL) value to use for the video stream(s) in multicast H.264 format. Only certain IP addresses and port numbers should be used for multicast. -
Page 32: E-Mail
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 11.4 E-mail You must turn Notification to ‘On’ and then enter the host names or addresses for your mail servers in the fields provided, to enable the sending of event and error email messages from the camera to predefined addresses via SMTP. -
Page 33: Ddns
Ver1.30 11.5 DDNS The GANZ Dynamic Domain Name Service (DDNS) can provide your GANZ product with its own name server address (URL), which can then be used to access it over the Internet. The product can be unregistered from the service at any time. To do this click Network > DDNS and turn the DDNS off. -
Page 34: Upnp
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 11.6 UPnP Universal Plug & Play (UPnP) allows you to find the IP camera automatically on your network. - Page 35 PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 In order to be able to detect the camera automatically, you must enable the UPnP function on both the camera and on your PC. Camera : Set UPnP to “ON” PC : Open “Control Panel” >”Network Connection” Select “Advanced”...
-
Page 36: System
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 12. System 12.1 User When you access the camera, the Configure Root Password dialog box appears. Enter the user name ADMIN and password 1234 to log in. To change the password or add a user, go to Setup > System > User. Fill in the User ID, Password and E-mail server. -
Page 37: Maintenance
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 Network Time Server Synchronize the time from an NTP server every 60 minutes. Specify the IP address or host name of the NTP server you are using. PC Sync / SAVE Synchronize the time to PC time. Time Zone Setup You may select your time zone from the drop-down list. - Page 38 PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 Firmware Update From time to time, CBC will release firmware updated for the PixelPro Series camera, which will contain feature additions and other improvements. Always read the upgrade instructions and release notes that accompany each new firmware release, before updating the firmware. NOTE: Preconfigured and customized settings should be saved before the firmware is upgraded.
-
Page 39: Information
PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30 12.4 Information System Information After updating firmware, you can confirm the new F/W version here. - Page 40 PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30...
- Page 41 PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30...
- Page 42 PixelPro User’s Manual ZN-B2MA/ZN-B1MA/ZN-B1A Ver1.30...
