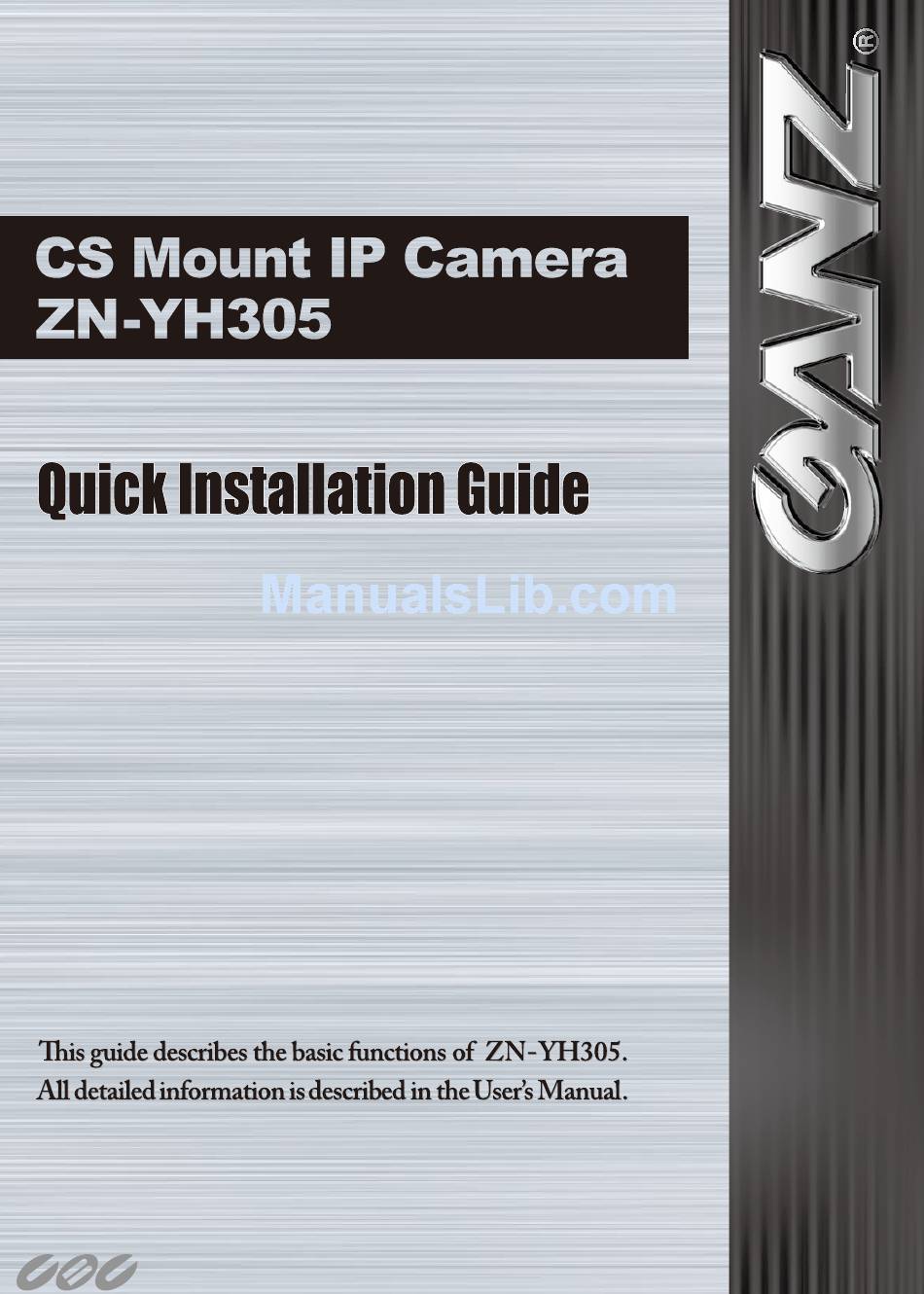

Summary of Contents for Ganz ZN-YH305
- Page 2 Warning Before Installation Power off the IP Camera as Keep the IP Camera away soon as it is found smoking or from water. If the IP smelt unusual. Camera is wet, power off immediately. Contact your distributor when such Contact your distributor when such cases happen.
- Page 3 Do not place the IP Camera on Do not touch the IP Camera unsteady surfaces. when it's lightening. Do not disassemble the IP Do not drop the IP Camera. Camera. Do not insert any object into the IP Camera, such as needles.
- Page 4 Check Package Contents ZN-YH305 Power adapter Camera stand Software CD Warranty card Quick installation guide...

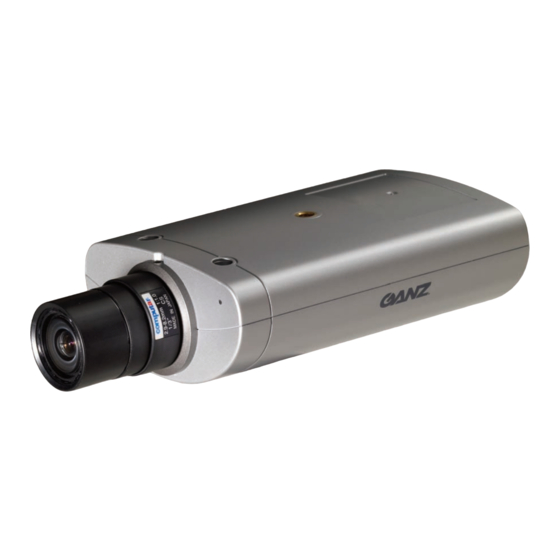

- Page 5 Physical Description Front panel Manual focus ring Internal ring screw Back panel MIC In Indented reset button Power cord socket Ethernet 10/100 RJ45 socket Audio out General I/O terminal block Up cover Status LED...
- Page 6 Make Connections Install your IP Camera in Ethernet network 1. If you have external devices such as sensors and alarms, make connection from general I/O terminal block. 3. Finally, connect power cord to a power outlet. 2. Use Ethernet cable to make connection from Ethernet 10/100 RJ45 socket to the hub.
- Page 7 Assign IP Address Note the serial number from the label on the unit. IP Camera Model No:ZN-YH305-A RoHS 001CB83 Pat. 6,930,709 This serial number is same as Ethernet address, for example: 001CB8300052=00-1C-B8-30-00-52...
- Page 8 Assign IP address Using Installer program 1. Run the "Installation Wizard" under the Software Utility directory from software CD. 2. The program will search the GANZ Video receivers, Video servers or IP cameras on the same LAN. 00-1C-B8-30-00-52 00-1C-B8-30-00-52 3.After searching, the main installer window will pop up.
