Page 1: User Manual
User Manual Mesh Gateway HDL-MCIP-RF.10 www.hdlautomation.com... -
Page 2: Table Of Contents
1.2 Functionalities Description....................1 1.3 Device Description......................2 2. Safety Instructions........................3 3. Technical Data..........................3 4. Installation............................4 4.1 Wiring........................... 4 4.2 HDL Bus Pro Description....................5 5. Wireless System Introduction.....................5 5.1 Mesh Mode......................... 5 5.1.1 Wiring Diagram....................... 5 5.1.2 Basic Configuration Steps..................6 5.2 Bridge Mode........................7 5.2.1 Wiring Diagram....................... -
Page 3: Overview

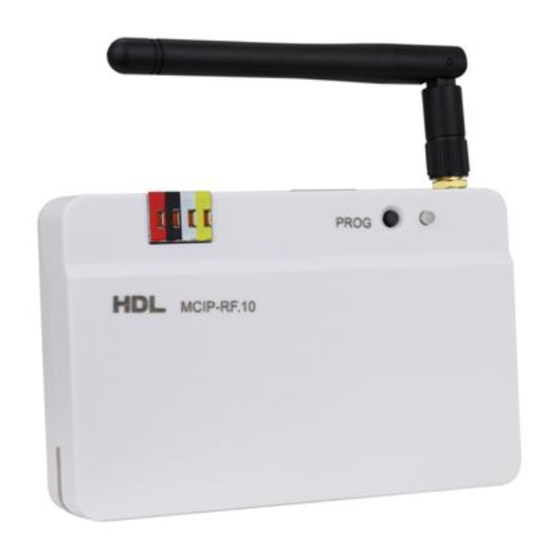

1. Overview 1.1 General Information 1.1.1 Description HDL-MCIP-RF.10 is a gateway based on IEEE802.15.4 standard MESH technology. Mesh Wireless Gateway has three communication interfaces: RJ45, HDL Buspro, RF, which can interconnect different media platforms(Ethernet, RS485, RF) of HDL intelligent devices. It’s very useful in the renovation projects and in the inconvenient of layout application environment. -
Page 4: Device Description
○ c . RJ45: Ethernet port RJ45 ○ d . DC24V: Power Supply, no need to use it if connected the HDL Bus interface (the DC power is provided from it) HDL Buspro interface ○ f .MODE LED: RED LED flashing quickly under wireless setup mode;... -
Page 5: Safety Instructions
Do not get AC240V voltage into Bus wire, it will damage all devices in the system. Ensure good ventilation. 3. Technical Data Electric Parameters: Working power 12~30VDC Communication RJ45, HDL-BUS, RF Wireless transmit power +10dbm Wireless receive sensitivity -90dbm Communication distance indoor 50m (barrier free) Work mode... -
Page 6: Installation
User Manual HDL-MCIP-RF.10 Storage Temperature -20℃~+60℃ Storage relative Humidity Up to 93% Approve: RoHS Production Information: Dimension 107×99.5×27（mm） Weight 103g Housing material Installation Desk or Wall Mounted Protection Degree IP20 4. Installation 4.1 Wiring Mesh Gateway – User Manual... -
Page 7: Hdl Bus Pro Description
DATA - White DATA + Yellow 5. Wireless System Introduction In the wireless system, use mesh gateway (HDL-MCIP-RF.10) to manage all the wireless devices, the gateway can work in mesh mode and bridge mode. Mesh Mode 5.1.1 Wiring Diagram The mesh mode can realize the communication between the HDL Buspro devices and the RF devices. -
Page 8: Basic Configuration Steps
LED will flash slowly. 4- Set the wireless parameters for normal wireless devices In the HDL BUS software, set the ID, frequency and PSK PWD for the normal wireless devices (panel, relay, etc) via the mesh gateway. Their Subnet ID, frequency and PSK PWD must be same as the gateway’s, otherwise the gateway cannot manage them. -
Page 9: Bridge Mode
User Manual HDL-MCIP-RF.10 5- All devices exit the wireless setup mode You are able to search and configure these wireless devices normally via the gateway now. Bridge Mode 5.2.1 Wiring Diagram In bridge mode, RS485 and Ethernet data in multiple gateways can be transmitted via RF, which effectively extends the communication distance. -
Page 10: Software Configuration
User Manual HDL-MCIP-RF.10 6. Software Configuration 6.1 Basic Setting 6.1.1 Change the ID Set the Subnet ID for the gateway, all the wireless gateways’ Device ID is 0, can not be changed. 6.1.2 Change the IP and IP MAC Change the default IP and IP MAC, to avoid possible conflict Default IP: 192.168.10.250, Default MAC: H-D-L-85-85-85... - Page 11 User Manual HDL-MCIP-RF.10 Local Network It works as a normal gateway between the RF and local Ethernet. This mode does not have the remote function. Configuration steps: 1. Change the default IP and IP MAC, to avoid possible conflict. Default IP: 192.168.10.250, Default IP MAC: H-D-L-85-85-85 2.
- Page 12 User Manual HDL-MCIP-RF.10 In this mode, you are able to access the wireless system directly through Internet, using HDL-BUS Pro software, without any help from HDL server. Configuration steps: 1. Change the default IP and IP MAC, to avoid possible conflict.
- Page 13 User Manual HDL-MCIP-RF.10 2. Select “P2P”, fill in “Project Name”, “Group Name”, “User”, “PWD”. The “User IP” is the public IP of Router R2 (see diagram above), the “Port” is the one you are going to fill in the Router R2 when setting up port forwarding.
- Page 14 4. Configure port forwarding in Router R2 Map UDP port 6000 to the IP of PC/laptop that runs HDL-BUS Pro Setup Tool. 5. Run HDL-BUS Pro Setup Tool on the PC/laptop with the IP set in the Router R2, in this doc, it is 192.168.1.100.
- Page 15 User Manual HDL-MCIP-RF.10 7. Click “Apply”, this pop up window will disappear when you connect to the remote SB-DN-1IP successfully, then you can search for devices and configure them as usual. Mesh Gateway – User Manual...
- Page 16 This mode is suitable for both travelling programmer and end user to configure and control HDL wireless system via Internet. Since a server is getting involved in this mode, no static public IP is needed for HDL wireless system because the HDL-MCIP-RF.10 in Remote Server mode will keep updating itself to the server, programmer and end user can always get info of the remote HDL-MCIP-RF.10 from the server and later access the HDL wireless...
- Page 17 HDL-MCIP-RF.10 will register itself to the HDL server (so that HDL server knows where this HDL-MCIP-RF.10 locates even if the public IP of the router is changed or private IP of the HDL-MCIP-RF.10 is changed). Recommend to set it no more than 3 minutes.
- Page 18 User Manual HDL-MCIP-RF.10 4. Fill the Group Name and sever IP , Click the search button on the pop up window, HDL server will feedback all projects in the same group (An installation company can have many projects in different sites) then select your project and fill in the password.
-
Page 19: Wireless Information
User Manual HDL-MCIP-RF.10 6.2.2 Wireless Information Must select free RF frequency for different countries: For China, select WPAN band, and the range of frequency is 780MHz - 786MHz; For Europe, select SRD band, and the range of frequency is 864MHz - 870MHz;... -
Page 20: Options Of Rf Filter
User Manual HDL-MCIP-RF.10 specified Subnet ID device in HDL BUS system. It’s white list. E.g. if select 4 for it, the gateway will filter all other devices’ commands except the Subnet 4’s, then to reduce the communication burden of Subnet 4. -
Page 21: Node Configuration
User Manual HDL-MCIP-RF.10 6.4 Node Configuration This page is used to set the wireless parameters for the normal wireless devices via the gateway, all wireless devices need to enter the wireless setup mode. It’s the preparatory work before user can manage the wireless system, after that can start to search and configure them as usual. - Page 22 User Manual HDL-MCIP-RF.10 select ‘WIRELESS’, then it will enter the wireless setup mode 5- Click the ‘Search’ button again, this panel will be found in the ‘Node’ list. RSSI: normal range is 0-90, the smaller the better. If it’s larger than 90, that means the signal is too weak so need to change its installation place, near to other wireless devices.
- Page 23 User Manual HDL-MCIP-RF.10 9- Go to the HDL BUS setup tool’s main interface to search and add the wireless devices, start to configure them via the gateway. Mesh Gateway – User Manual...
- Page 24 User Manual HDL-MCIP-RF.10 Document updates: Version Data Description V1.0 2015.02.10 Create new document Mesh Gateway – User Manual...
-
