User Manual

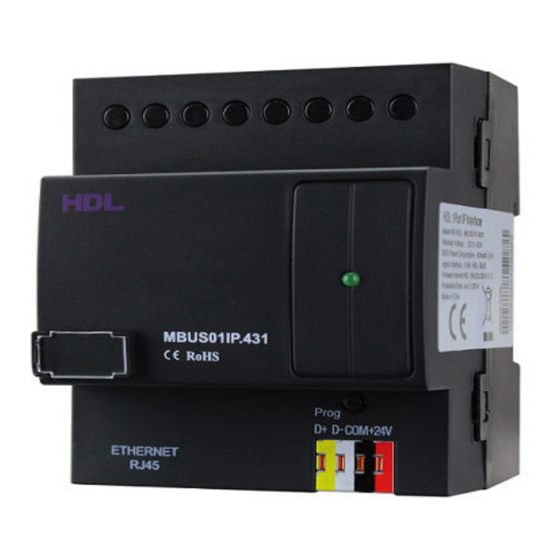

HDL bus gateway
SB-DN-1IP
MBUS01IP.431
th
(4
generation)
This manual describes both old and new version of the gateway
(SB-DN-01IP, HDL-MBUS01IP.431). The used snapshots come
from previous version of HBST. In the current version of
HBST2, the aspect is slightly different but the functions are the
same.
SB-DN-1IP
www.hdlautomation.com
SB-DN-1IP
Advertisement
Table of Contents
Related Manuals for HDL SB-DN-1IP
Summary of Contents for HDL SB-DN-1IP
-
Page 1: User Manual
User Manual This manual describes both old and new version of the gateway (SB-DN-01IP, HDL-MBUS01IP.431). The used snapshots come from previous version of HBST. In the current version of HBST2, the aspect is slightly different but the functions are the same. -
Page 3: Table Of Contents
User Manual SB-DN-1ip Index 1 Overview ....................2 1.2 Basic information ................2 1.2 Functionalities ................... 2 1.3 Mounting ................... 2 1.4 Technical data ................... 3 2 installations ................... 4 2.1 Wiring ....................4 2.2 connector Info ................... 4 3 Software configurations ............... 5 3.1 Basic settings .................. -
Page 4: Overview
User Manual SB-DN-1ip 1 Overview 1.2 Basic information SB-DN-IP is the HDL’s typical gateway between HDL system and Ethernet; it can establish a bidirectional communication between HDL system and Ethernet. 1.2 Functionalities Bidirectional data exchange between HDL and Ethernet Support local network, remote control and P2P, the default is Local network. -
Page 5: Technical Data
User Manual SB-DN-1ip 1.4 Technical data Electric parameters Power input Bus power supply: DC24 40mA/DC24V BUS Power consumption standard 35mm DIN Rail Mount Installation mode 72x90x66(mm) Dimension 128x64 raster graphic LCD UDP/IP network interface RJ-45 Working environment Working relative humidity 0℃~45℃... -
Page 6: Installations
User Manual SB-DN-1ip 2 installations 2.1 Wiring a) LED indicator b) Programming button c) Ethernet RJ45: UDP/IP interface d) HDL interface 2.2 connector Info Connector Information BusPro DC24V Black DATA- White DATA+ Yellow H D L t y p i c a l g a t e w a y – U s e r M a n u a l... -
Page 7: Software Configurations
3.1 Basic settings 3.1.1 Change the ID Each HDL-device has subnet and Device ID and each module’s Device ID must be unique and different from other devices on the same Bus, the subnet ID should be the same as the HDL-Bus gateway (typically the SB-DN-1IP or HDL-MBUS01IP.431). -
Page 8: Dhcp (Auto Ip)
IP address from the DHCP server. 3.2 Communication modes. If the firmware of SB-DN-1IP is HDL_V04.02N_2013/05/30 or newer, it supports three modes, i.e., Local Network mode, P2P mode, and Remote Server mode. (Tips: when the firmware upgrade finished, better to power off this module for several seconds and power on this module, then initialize the IP by pressing its button, then power off and power on again.) - Page 9 User Manual SB-DN-1ip numbers can be set arbitrarily. H D L t y p i c a l g a t e w a y – U s e r M a n u a l...
-
Page 10: Local Network Mode
User Manual SB-DN-1ip 3.2.1 Local Network mode: Works as a normal SB-DN-1IP as it always is. a gateway between HDL-BUS and local Ethernet. This mode does not have remote function. Configuration steps: 1. Change the default IP and IP MAC, to avoid possible conflict. -
Page 11: P2P Mode
User Manual SB-DN-1ip 3.2.2 P2P mode In this mode, you are able to access the HDL-BUS system directly through Internet, using HDL-BUS Pro software. This mode requires fixed static public IP for both ends, so this mode is suitable for installation company to configure the HDL-BUS system remotely, but not suitable for commuting end user to control the HDL-BUS system in their home from, e.g., their IPad,... - Page 12 3. Configure port forwarding in Router R1 Map UDP port 6000 to the IP of SB-DN-1IP, H D L t y p i c a l g a t e w a y – U s e r M a n u a l...
- Page 13 4. Configure port forwarding in Router R2 Map UDP port 6000 to the IP of PC/laptop that runs HDL-BUS Pro Setup Tool. 5. Run HDL-BUS Pro Setup Tool on the PC/laptop with the IP set in the Router R2, in this doc, it is 192.168.1.100.
-
Page 14: Remote Server Mode
This mode is suitable for both travelling programmer and end user to configure and control HDL-BUS system via Internet. Since a server is getting involved in this mode, no static H D L t y p i c a l g a t e w a y – U s e r M a n u a l... - Page 15 User Manual SB-DN-1ip public IP is needed for HDL-BUS system because the SB-DN-1IP in Remote Server mode will keep updating itself to the server, programmer and end user can always get info of the remote SB-DN-1IP from the server and later access the HDL-BUS system directly.
- Page 16 IP for your PC/laptop, run the HDL-BUS Pro Setup Tool again and select Communication mode(C)III. 4. Fill the Group Name and sever IP , Click the search button on the pop up window, HDL server will feedback all projects in the same group (An installation company can have many projects in different sites) then select your project and fill in the password.
- Page 17 HDL server (so that HDL server knows where this SB-DN-1IP locates even if the public IP of the router is changed or private IP of the SB-DN-1IP is H D L t y p i c a l g a t e w a y – U s e r M a n u a l...
-
Page 18: Site License
It is a fixed time, 1000 seconds, when there is no operation for 1000 seconds, the SB-DN-1IP disconnects the current connection and you will have to log in again. You can have 4 active connections, which means when you are configuring the HDL-BUS system, up to 3 people can operate the HDL-BUS system from iPad, android pad at the same time. - Page 19 User Manual SB-DN-1ip Configuration steps:- 1-make sure your IPAD, IPHONE or ANDROID connected to the same WIFI as 1ip module. 2- On Ilife, click on the gear button at the right-top and select site-license 3- Fill in the subnet ID and device ID of the IP module, and click on “machine code” and it will read the ID of the module and you can use that code for registration.
-
Page 20: Notes
User Manual SB-DN-1ip 4 NOTES H D L t y p i c a l g a t e w a y – U s e r M a n u a l...
