CODELOCKS CL5000 Installation Instructions Manual page 3

CL 5000AT II.U.S.version 8PP_Layout 1 20/09/2013 10:44 Page 3
17
16
15
10
9

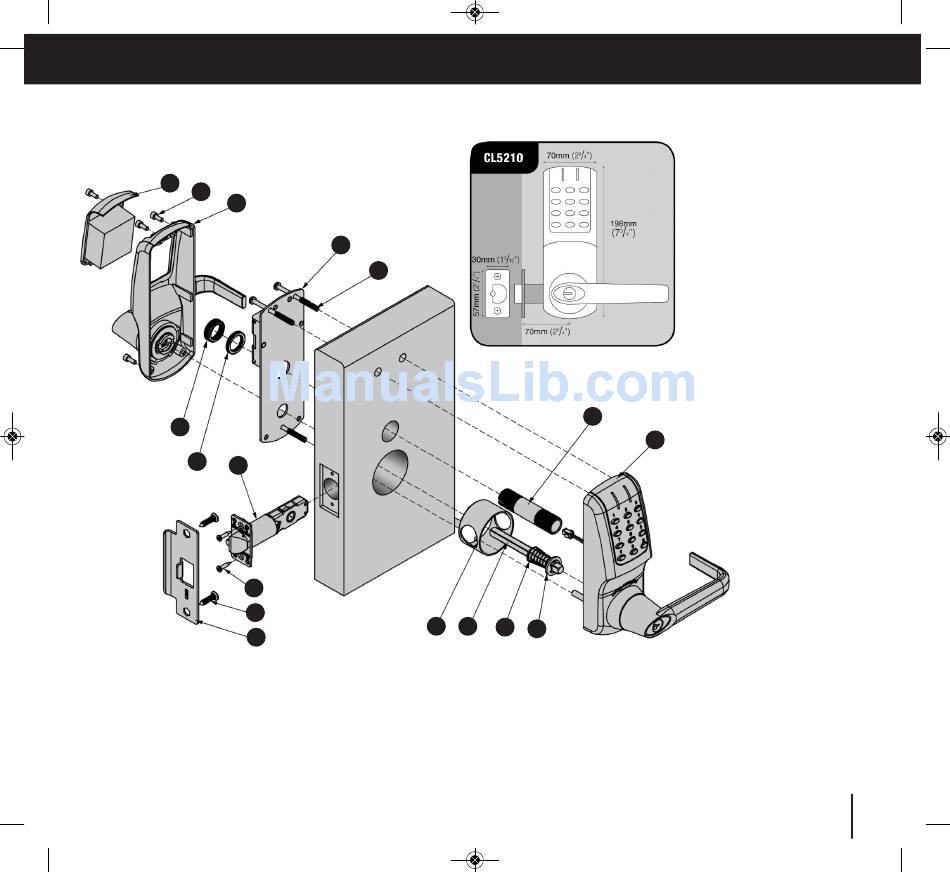

1 Washer
2 Spindle Spring
3 Spindle
4 Fire Cup
5 'T' Type Strike
6 Screw
14
13
8
7
6
5
7 Countersunk Head Screw
8 Latch
9 Ring Nut
10 Threaded Tube Cap
11 Front Plate
12 Threaded Cable Tube
12
4 3
2
1
13 Fixing Bolts x 3
14 Inside Plate
15 Back Plate
16 Fixing Bolts x 4
17 Battery Cover
CL5210 LATCH
FUNCTION
Outside handle turns freely
without operating the
latchbolt. When the code is
entered the Blue LED
flashes, and the handle will
retract the latchbolt. The
latch automatically locks
the door when closed.
The key will open the door
without the code.
11
3
