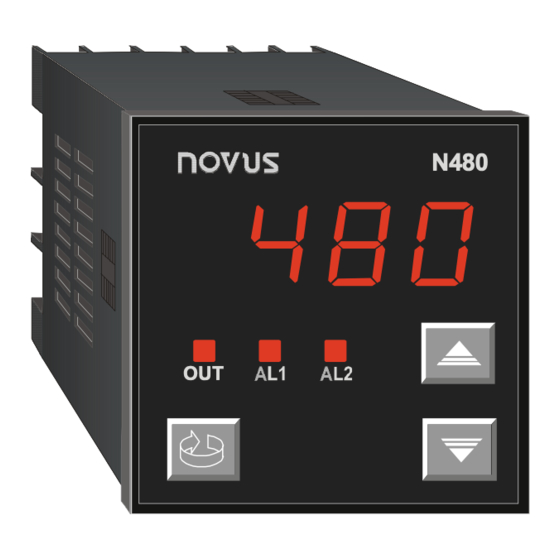

- Page 1 N480...
-
Page 2: Table Of Contents
N480 ÍNDICE 1. installation ............................3 panel assembly ..............................3 electrical connections............................3 2. specifications..........................3 general ................................3 temperature sensor input ...........................3 power ................................3 control output..............................3 alarm outputs..............................4 3. configuration and operation ......................4 parameters flow chart ............................4 operation level ..............................4 tuning and alarms level ............................4 configuration level..............................5... -
Page 3: Installation
N480 1. INSTALLATION 1.1 PANEL ASSEMBLY The controller should be installed in a panel cut out as specified in item 2.1. First remove the mounting clamp and insert the controller into the panel cut out. Place the unit into the panel cut-out and slide the mounting clamp from the rear to a firm grip at the panel. -
Page 4: Alarm Outputs
N480 Both outputs are available in the basic model and the desired main control output is user selected via keyboard (refer to “ Cntr Cntr “ prompt). The remaining output can then be used as an alarm output. Cntr Cntr In case of sensor break or failure an error "Erro... -
Page 5: Configuration Level
N480 DERIVATIVE TIME: Derivative time constant in seconds. This constant is not used when controller is set to ON/OFF action (Pb=0). derivative time CYCLE TIME: Pulse Width Modulation (PWM) period in seconds. This term is not used when controller is set to ON/OFF action (Pb=0). -
Page 6: Ramp To Soak Function Characteristics
N480 4. RAMP TO SOAK FUNCTION CHARACTERISTICS This function makes the process temperature rise gradually from the starting point (present PV) to the temperature value set in “ SP SP SP SP “ (Ramp). rAtE rAtE rAtE” prompt. The user defines the rate of rise in degrees per minute at the “rAtE When SP is reached the temperature is leveled at this point for 1 to 9999 minutes as programmed at the “... -
Page 7: Alarm Initial Blocking
N480 HIGH SPA1 Alarm ON differenti TEMPERATURE Negati SP + SPA1 SP SPA1 Alarm TEMPERATURE Positi SP + SPA1 differenti SPA1 Alarm ON al or TEMPERATURE Negati deviation SP - SPA1 SP + SPA1 SPA1 Alarm Alarm TEMPERATURE Positi SP - SPA1... - Page 8 N480 ISO 9001 FÁBRICA Porto Alegre: Rua: Álvaro Chaves, 155 – Floresta TEL: 51-3323 3600 FAX: 51-33233644 E-Mail: info@novus.com.br FILIAL São Paulo: Rua: José Augusto Penteado, 107 – V. Madalena TEL: 11-3675 0366 FAX: 11-3675 0377 E-Mail: sp@novus.com.br FILIAL Curitiba: Rua: Vereador Toaldo Túlio, 2235 –...
