Novus N120 Instructions Manual

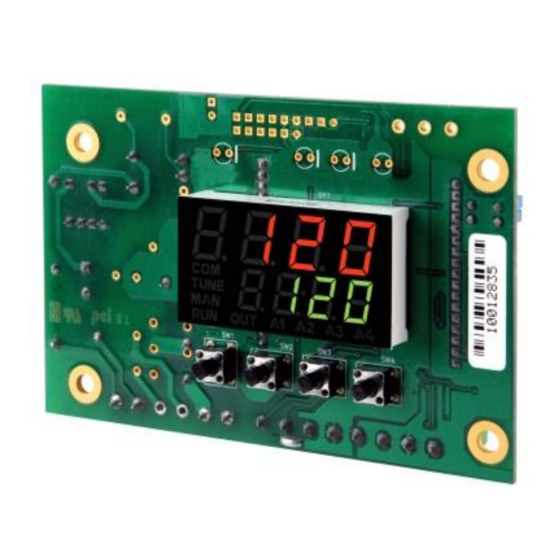

Controller N120
INSTRUCTIONS MANUAL – V1.0C
INTRODUCTION
The N120 is an extraordinarily versatile process controller. It holds in
one single instrument all the main features needed for the vast majority
of industrial processes. It accepts in a single model the majority of the
sensors and signals used in the industry and provides the main
output types required by usual applications.
The instrument setup is carried out through its frontal keypad without
any hardware change.
It is important that the users read carefully this manual before using
the controller. Verify if the release of this manual matches the
instrument version (the firmware version is shown when the controller
is energized). The N120 main characteristics are:
•
Multi-sensor universal input;
•
Protection for open sensor in any condition;
•
Relay and logic pulse control outputs available in the standard
model;
•
4-20 mA output (optional)
•
Self-tuning of PID parameters;
•
Up to two alarm outputs, with functions of minimum, maximum,
differential (deviation), open sensor and event;
•
Timer functions that can be associated to the alarms;
•
Retransmission of PV or SP in 0-20 mA or 4-20 mA (optional);
•
Digital input with 2 functions;
•
Programmable soft-start;
•
20 setpoint profile programs with 9 segments each, with the
ability to be linked together for a total of 180 segments;
•
Password for parameters protection;
•
Universal power supply: 100-240 Vac, ±10%..
CONFIGURATION / FEATURES
INPUT TYPE SELECTION
Select the input type (in parameter "tYPE
TYPE CODE
J Tc j Tc j Tc j Tc j Range: -110 to 950 ºC (-166 to 1742 ºF)
K Range: -150 to 1370 ºC (-238 to 2498 ºF)
Tc k Tc k Tc k Tc k
T Tc t Tc t Tc t Tc t Range: -160 to 400 ºC (-256 to 752 ºF)
Tc n Tc n
N Tc n Tc n Range: -270 to 1300 ºC (-454 to 2372 ºF)
R Tc r Tc r Tc r Tc r Range: -50 to 1760 ºC (-58 to 3200 ºF)
S Tc s Tc s Tc s Tc s Range: -50 to 1760 ºC (-58 to 3200 ºF)
B Tc b Tc b Range: 400 to 1800 ºC (752 to 3272 ºF)
Tc b Tc b
E Tc e Tc e Tc e Tc e Range:-90 to 730 ºC (-130 to 1346 ºF)
Pt Pt
Pt100 Pt Pt Range: -200 to 850 ºC (-328 to 1562 ºF)
0–50 mV L0. 5 0 L0. 5 0 L0. 5 0 L0. 5 0
L0. 5 L0. 5
0-5 Vdc L0. 5 L0. 5
Programmable indication from -1999 to 9999.
0-10 Vdc L0. 1 0 L0. 1 0 L0. 1 0 L0. 1 0
Table 1 - Input types
CONTROL OUTPUT
Either logic pulse (5 Vdc / 20 mA) or relay, software selectable.
NOVUS PRODUTOS ELETRÔNICOS LTDA. RS: (51) 3323-3600 SP: (11) 3097-8466 CP: (19) 3305-7999 PR: (41) 3244-0514
tYPE") from Table 1 below. tYPE tYPE
RANGE OF MEASUREMENT
Linear Signals
ALARM OUTPUTS
The N120 has two independent alarm outputs. They can be
configured to operate in nine distinct modes, as shown in Table 2.
SCREEN TYPE
Off Off Off Off Inoperative Output is not used as alarm.
Ierr Ierr Ierr Ierr
Open sensor Activated when the input signal of PV is
interrupted, out of the range limits or Pt100
(input Error)
in short-circuit.
Rs Rs Rs Rs
Event (ramp and Activated in a specific segment of program.
Soak)
t. e nd t. e nd
t. e nd t. e nd Timer alarm Signals when the timer expires.
Lo Lo Lo Lo Minimum value
(Low)
Ki Ki Ki Ki
Maximum value
(High)
Dif Dif Dif Dif
Differential
(diFerential)
SV - SPAn
alarme
Positive SPAn
Difl Difl Difl Difl Minimum
Differential
(diFerential
Low)
Difk Difk
Difk Difk Maximum
differential
SV SV + SPAn
(diFerential
Positive SPAn
High)
Table 2 – Alarm Functions
off off
off off
Inoperative
ierr ierr ierr ierr
(input Error). Activated when the input signal of PV is
interrupted, out of the range limits or Pt100 in short-
circuit.
Rs Rs Event (ramp and Soak). Activated in a specific
Rs Rs
segment of program. .
t. e nd t. e nd
t. e nd t. e nd
Timer end. Signals when the timer expires.
lo lo
lo lo
Minimum value (Low).
ki ki ki ki
Maximum value (High).
PV
dif dif dif dif
Differential (diFerential)
PV
SP - SPAx SP SP + SPAx
positive SPAx
ACTUATION
PV
SPAn
PV
SPAn
PV
SV + SPAn SV SV - SPAn
SV SV + SPAn
alarme
Negative SPAn
Positive SPAn Negative SPAn
PV
PV
SV - SPAn SV SV SV - SPAn
PV
SV + SPAn SV
Negative SPAn
PV
SPA1
SPA1
PV
SV + SPAx SV SV – SPAx
alarme
negative SPAx
PV
PV
