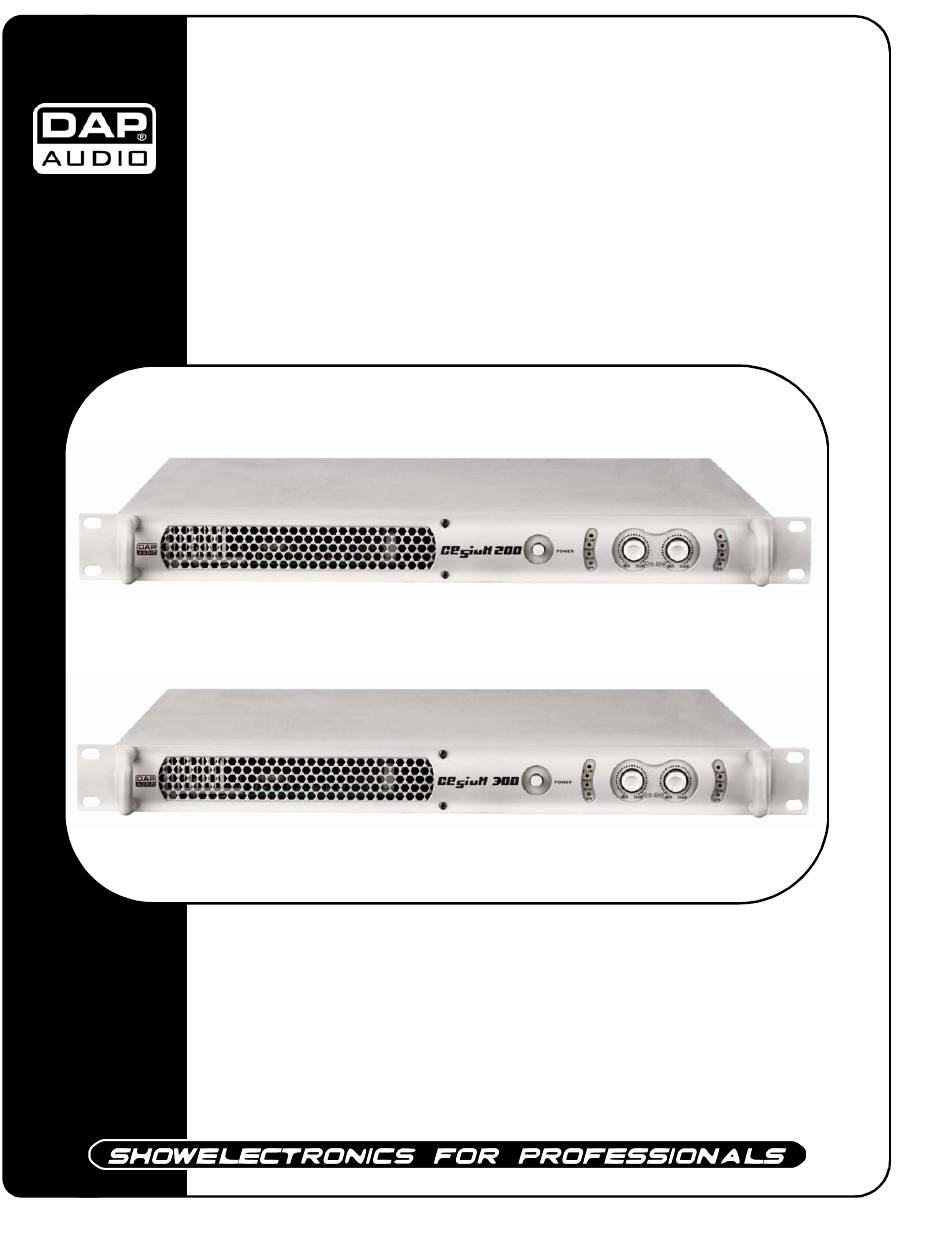

- Page 1 Cesium Cesium 200 ORDERCODE D4160 Cesium 300 ORDERCODE D4161...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio Cesium series bring excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
- Page 3 DAP Audio DAP Audio Cesium 200, 300 Product Guide Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview Front side..…………………………………………………………………………………..…… Overview Back side..…………………………………………………………………………………….…… Installation..............……………………………..………………………… Set Up and Operation..............……..…………………………….…… Connecting CESIUM 200 and 300………..………………………………………………………..….……. Maintenance………......…........………..………….…….………….….. Troubleshooting………......…........………..………….…….………….….. Product Specifications..............……………….…….………………….
-
Page 4: Safety Instructions
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
• Make sure that the power-cord is never crimped or damaged. Check the system and the power-cord from time to time. • Always operate the unit with the AC ground wire connected to the electrical system ground. • Connecting amplifier outputs to oscilloscopes or other test equipment, while the amplifier is in bridged mode, may damage both the amplifier and test equipment. - Page 6 Description of the device Features The Cesium 200 and 300 are professional amplifiers : Cesium 200 and 300 • 2x Channel in • 2x Speakon out • Built-in Clip Limiter • Switch-able entrance sensitivity: 0.77V, 1V and 1.4V • Parallel or stereo mode •...
- Page 7 In stereo mode, this potentiometer allows the adjustment of the channel 2 input level. (Right channel) In bridge mode, this potentiometer is disabled. 7. "PROTECTION" Indicator When this indicator lights, the power amplifier is in protection mode. Switch off the device and find out what the problem is.
-
Page 8: Installation
You can connect the Cesium in 2 different modes: Stereo and Parallel CONNECTING FOR CESIUM 200 and 300 : Stereo mode: In this mode, connect the 2 inputs CH1 and CH2 to your mixer's outputs. -
Page 9: Maintenance
Be sure to use a fuse of the same type and specification. See the product specification label for details. Troubleshooting Dap Audio Cesium 200 and 300 This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. -
Page 10: Product Specifications
Product Specifications MODEL CESIUM 200 CESIUM 300 8ohm Stereo Power 100W 4ohm Stereo Power 105W 150W Freq. Resp 20Hz-20KHz, (+0/ 0.3,1W/8ohm) -3dB@100KHz THD+N <0.05% <0.05% Slew Ratio 40V/µs 40V/µs DAMPING Factor >200 >200 S/N Ratio >95dB >95dB Input sensitivity 0.775V, 1V, 1.4V Input imped.(bal/unbal.) - Page 11 2004 Dap Audio.
