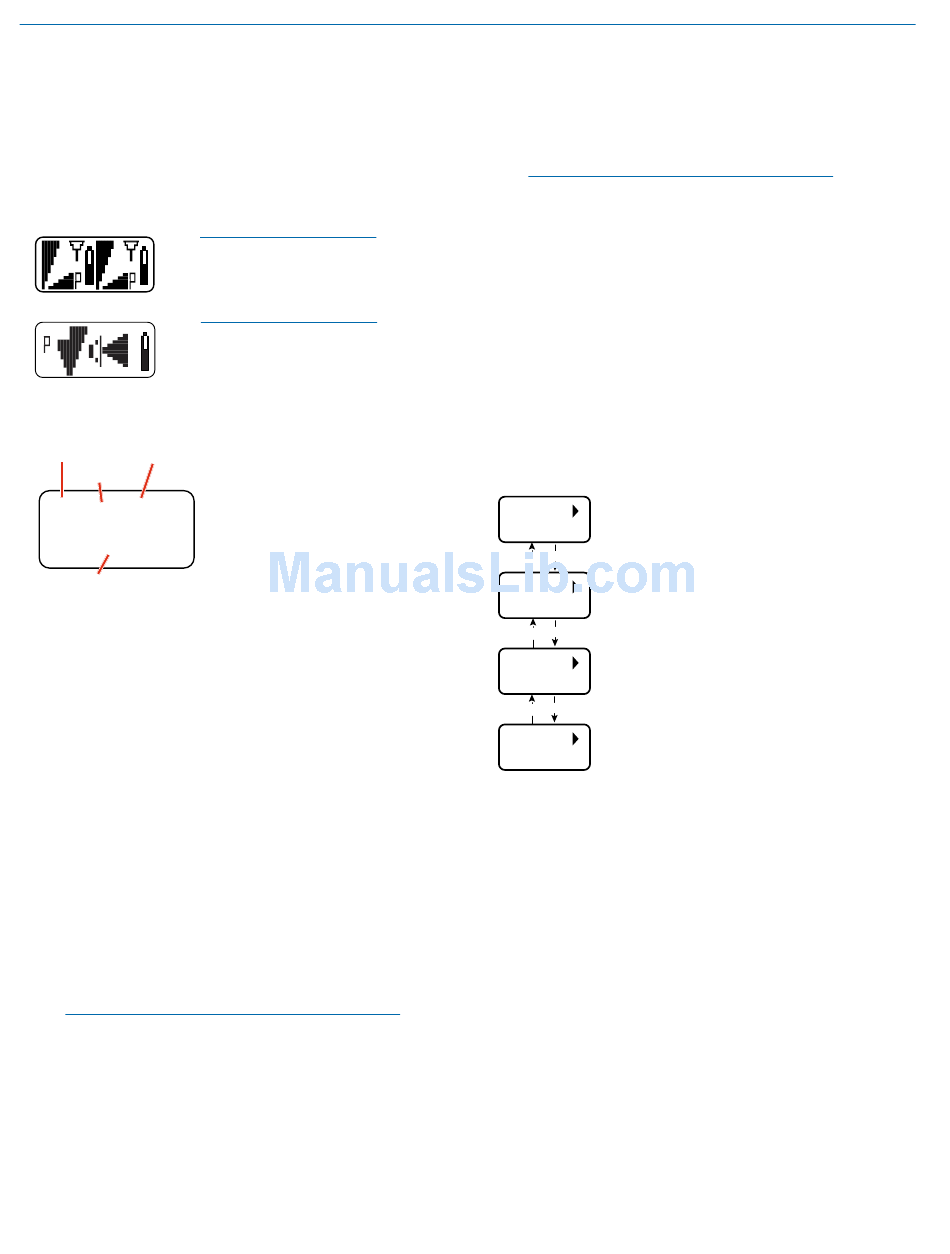

Main Window

The appearance of the LCD Main Window will change
according to which diversity mode is selected:
• SWITCH (2-channel mode) splits the screen to
indicate activity and levels on both receivers and
transmitters.
• RATIO combines the audio outputs of both receiv-
ers to deliver a single audio channel.

Frequency Screen

Receiver Freq in
hex
Block
1 24 : B7
632 . 700
Freq in MHz
that any transmitter with hex switches be set at B7 for
this frequency. Lectrosonics transmitters with LCD inter-
faces allow frequency to be set in MHz or hex settings.
Press the UP and DOWN buttons to change the fre-
quency of the receiver. When the tuning mode is set to
NORMAL, the UP and DOWN buttons tune in single
channel increments. In the group tuning modes, the UP
and DOWN buttons step through the frequencies stored
in the particular group. Refer to the menu item named
TUNING for details.

Setup Screens

From the Main Window, press MENU/SEL three times
to enter the setup screens. Press UP and/or DOWN to
scroll through the available items and press MENU/SEL
to enter the desired screen. For those items that allow
separate settings for each receiver, press MENU/SEL
repeatedly to toggle back and forth between Receiver 1
and Receiver 2, then press the UP and DOWN buttons
to select the value or option, then press BACK to return
to the previous screen.
SHORTCUT: Hold the MENU/SEL button in while
pressing the UP or DOWN arrow to jump in 16
channel increments (1.6 MHz steps).
20
With the DIV MODE set to
SWITCH, two audio channels
will be displayed.
With the DIV MODE set to
RATIO, a single audio channel
will be displayed.
Press MENU/SEL from the Main
Window once for Receiver 1 and
twice for Receiver 2. The
selected receiver is shown in
the upper left corner of the LCD.
In this example, the upper
screen denotes that receiver 1
is set at 632.700 MHz, requiring
Locking and Unlocking the
Front Panel Controls
The front panel controls can be LOCKED to prevent
accidental changes being made during operation and
handling.
Note: Whether locked or unlocked, the setting
persists when the unit is off and even when the
power is turned off.
From the Main Window, press and hold the UP and
DOWN arrows at the same time and observe the
display. The current state is displayed as LOCKED or
UNLOCKED, and numerals appear as a 3, 2, 1 count-
down takes place. When the countdown is complete the
state is reversed and the new state is displayed.

LCD Backlight Setup

With the power on, simultaneously press the UP but-
ton AND the POWER/BACK button. The unit will then
display the Backlight Options screen. Use the UP and
DOWN arrows to select the desired backlight operating
mode.
BKLIGHT
Remains on
ON
UP DOWN
BKLIGHT
Dims after 30 seconds
30 SEC
DOWN
UP
BKLIGHT
Dims after 5 minutes
5 MIN
DOWN
UP
Backlight turns OFF
BKLIGHT
and Remains OFF
OFF
