SRc5P and SRc Dual Receivers

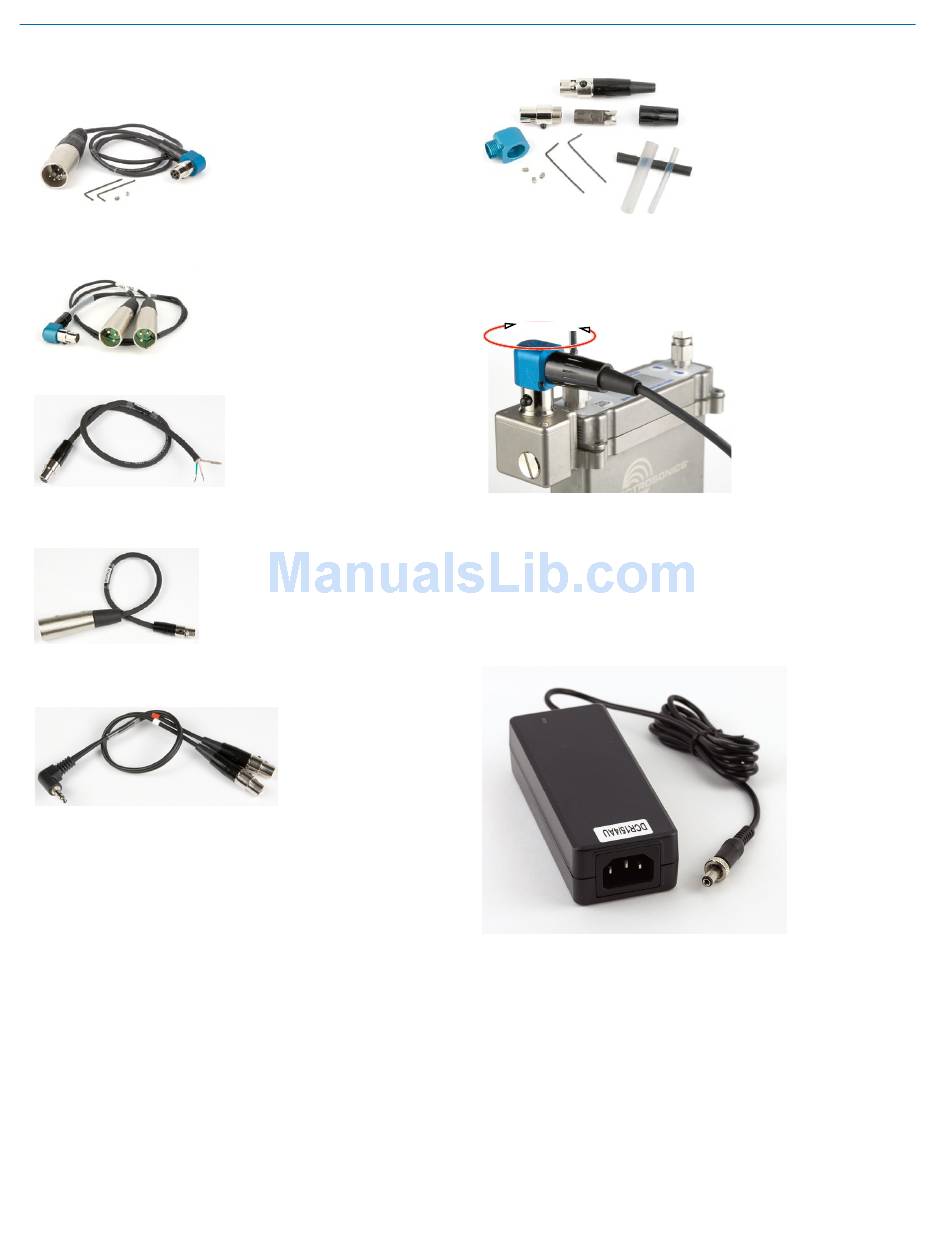

Audio Output Cables and Connectors

MCSR5PXLR5P
MCSR5PXLR2
MCSRPT
MCSRXLR
MCSRTRS
14
Right angle TA5F plug
to 5-pin XLR; balanced
outputs; 25 inches long.
For TA5M output jacks.
Right angle TA5F plug to
two 3-pin XLR; balanced
outputs; 20 inches long.
For TA5M output jacks.
12 inch long TA3 female to
stripped and tinned wires
for balanced output.
PIN 1: Shield
PIN 2: Audio (+) white
PIN 3: Audio (-) green
12 inch long TA3 female to
XLR male 3-pin for balanced
output.
PIN 1: Shield
PIN 2: Audio (+)
PIN 3: Audio (-)
Male 3.5 mm TRS plug
to two female TA3 (mini
XLR) connectors for
dual channel use.
RATPAC Adapter Kit
The 5-pin RATPAC right angle connector is designed for
the front panel output jack. The 3-pin version is de-
signed for the rear panel outputs on the receiver.
External Power Supply
DCR15/4AU
Power supply with a standard C14 inlet and locking
LZR coaxial output connector; 100-240 VAC in, 15 VDC
regulated output; 4A max.
Adapter kit to build either
a 3-pin or 5-pin TA Series
right angle connector.
Includes standard 5-pin
connector, modified 3-pin
insert and backshell,
aluminum right angle
housing, strain relief
tubing, set screws and
wrenches.
The connector can be
rotated during assembly
to exit the cable in the
desired direction. See
instructions included
with the RATPAC kit.
