How to capture clips

1 Connect the video and audio input sources from which you want to capture
clips to the corresponding inputs on your MXO2 hardware.

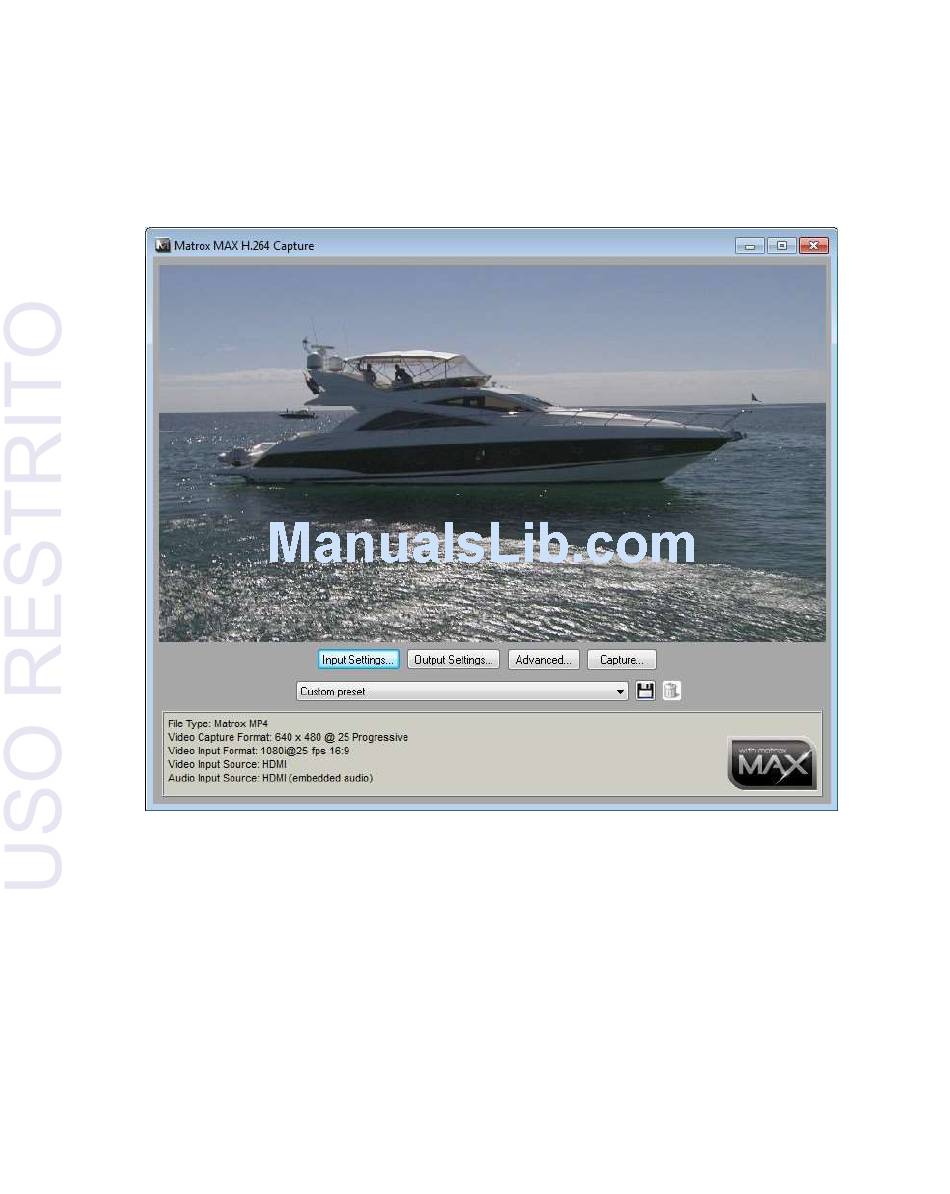

2 Choose Start > Programs > Matrox Mtx.utils> Matrox MAX H.264
Capture
.
Click Input Settings
3
capturing clips as explained in
Output Settings
4 Click
monitoring the source material that you're capturing as explained in
"Specifying your output settings"
5 Select a preset for the type of clips that you want to capture. The Matrox
presets available depend on the frame rate of your video input source.
Click the
6
preset and make any required changes as explained in
capture format settings"
to select your video and audio input settings for
"Specifying your input settings"
to select your video and audio output settings for
Advanced button to review the settings provided by your selected
on page 232.
on page 230.
"Specifying your
How to capture clips
227
on page 228.
