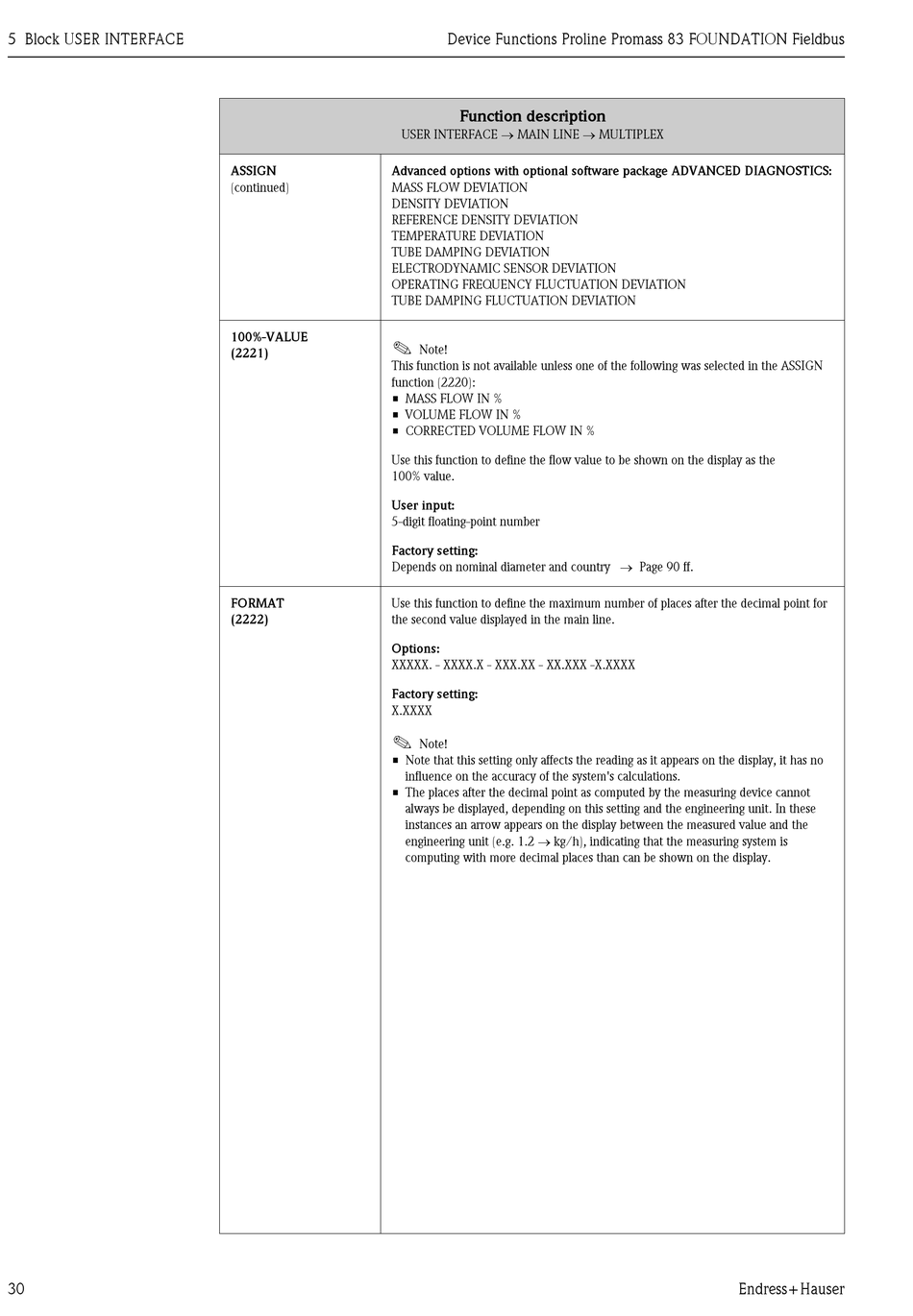

Endress+Hauser Proline Promass 83 Manual page 30

5 Block USER INTERFACE
30
USER INTERFACE → MAIN LINE → MULTIPLEX
ASSIGN Advanced options with optional software package ADVANCED DIAGNOSTICS:
(continued) MASS FLOW DEVIATION
DENSITY DEVIATION
REFERENCE DENSITY DEVIATION
TEMPERATURE DEVIATION
TUBE DAMPING DEVIATION
ELECTRODYNAMIC SENSOR DEVIATION
OPERATING FREQUENCY FLUCTUATION DEVIATION
TUBE DAMPING FLUCTUATION DEVIATION
100%-VALUE
!
(2221)
This function is not available unless one of the following was selected in the ASSIGN
function (2220):
• MASS FLOW IN %
• VOLUME FLOW IN %
• CORRECTED VOLUME FLOW IN %
Use this function to define the flow value to be shown on the display as the
100% value.
User input:
5-digit floating-point number
Factory setting:
Depends on nominal diameter and country → Page 90 ff.
FORMAT Use this function to define the maximum number of places after the decimal point for
(2222) the second value displayed in the main line.
Options:
XXXXX. - XXXX.X - XXX.XX - XX.XXX -X.XXXX
Factory setting:
X.XXXX
!
• Note that this setting only affects the reading as it appears on the display, it has no
• The places after the decimal point as computed by the measuring device cannot
Device Functions Proline Promass 83 FOUNDATION Fieldbus
Function description
Note!
Note!
influence on the accuracy of the system's calculations.
always be displayed, depending on this setting and the engineering unit. In these
instances an arrow appears on the display between the measured value and the
engineering unit (e.g. 1.2 → kg/h), indicating that the measuring system is
computing with more decimal places than can be shown on the display.
