User Manual
Ascom d81 DECT Handset

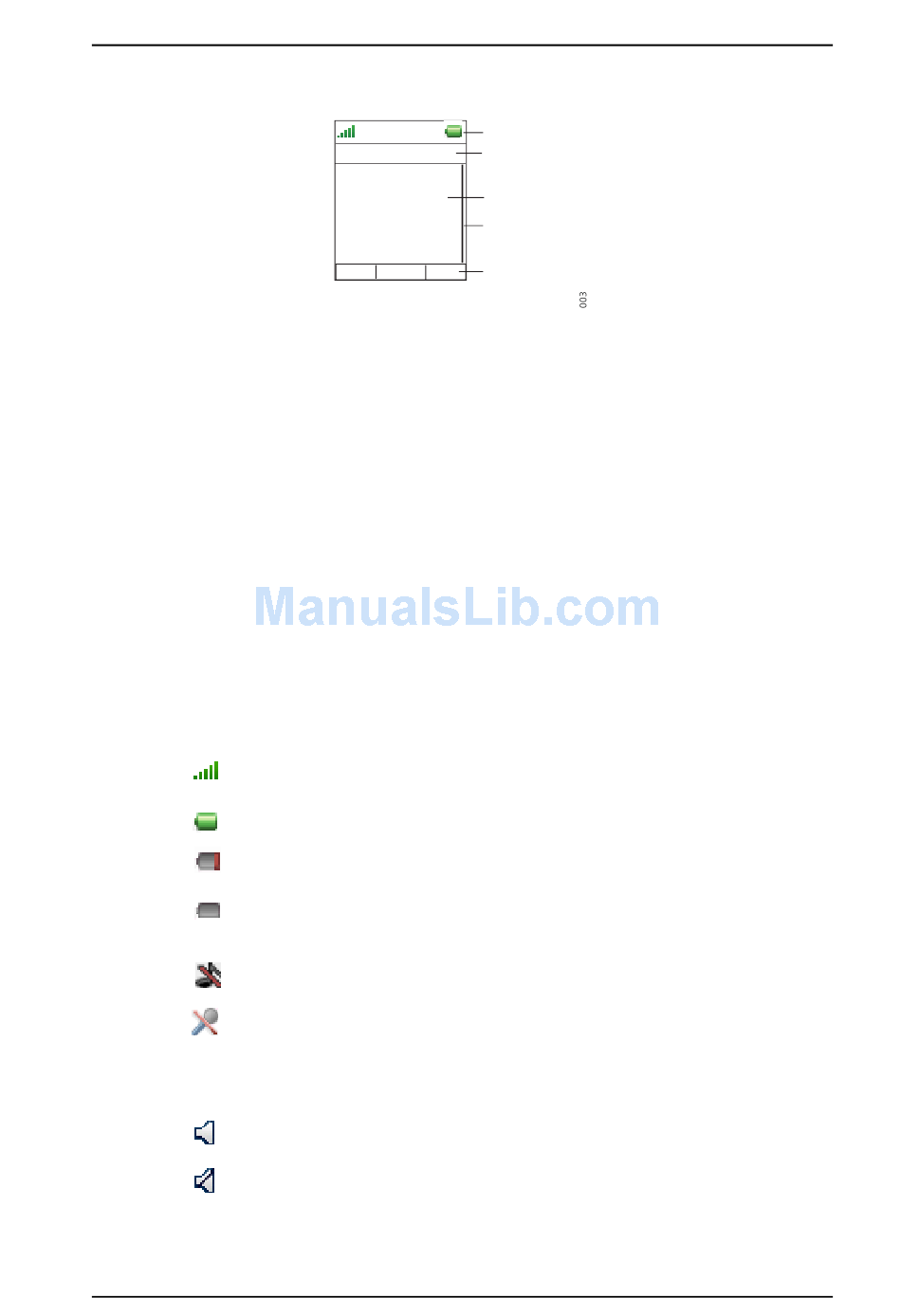

Figure 3. Example of a display configuration in idle mode.
The top row (Status bar) is used for icons which give the user information about signal
strength, missed call, new message, phone lock, key lock, sound off, time and battery
status. This row is always visible in all screens.
The next row (Header bar) displays the current date, headset connection, Bluetooth
connection, and system connection.
The next rows (Active area) are used for information such as the name of the system to
which the handset is connected to. A user identity provided from the system and/or an
Owner ID can also be displayed if configured in the Settings menu. This is also the area for
dialog window text. For example "missed calls" or to confirm an action.
The bottom row (Soft key bar) is used for Soft keys which can be used as short cuts for
functions in the handset. See
The (Scroll bar) is placed to the right of the "Active area". It becomes visible when a menu
screen has more than six menus, or if the complete text in a message cannot be displayed
on the screen simultaneously.
Icons
"Signal strength" icon is visible in the upper left corner. The staples
shown in display depends on the signal strength.
"Full battery" icon is displayed in upper right corner.
"Low battery warning" icon is shown when the battery has 10% or less
remaining capacity left.
"Empty battery warning" icon is flashing when the battery has 5% or
less remaining capacity left.
"Sound off" icon is displayed when the Sound off key or Mute button is
pressed.
"Microphone off" icon indicates a silenced microphone. It is displayed
after a long press on the Sound off key, Mute button during a call.
During a PTT call, the microphone is silenced when the PTT button is
released.
"Loudspeaking" icon is displayed in the soft key bar during a call.
Pressing this icon will turn on the loudspeaker.
"Loudspeaking off" icon is displayed after the soft key for Loudspeaking
icon has been pressed. Pressing this icon will turn off the loudspeaker.
26 April 2010/ Ver. B
Status bar
11:00
Header bar
05/12/2009
System A
Active area
Scroll bar
123456
Soft key bar
Menu
3.1 d81 DECT Handset on page 9.
TD 92644GB
13
