Range Extender Mode; Client Mode - TP-Link TL-WR902AC User Manual

Connect TL-WR902AC to the power and connect the Ethernet cable correctly, you can surf the
Internet by connecting your PC(s) to the router wirelessly.
On this mode, the wired port LAN/WAN works as LAN. The Pre-encryption function is opened by
default and the default password is the last unique eight numbers of each Router's MAC address.
1. Switch the mode of the router on AP/Rng Ext/Client.

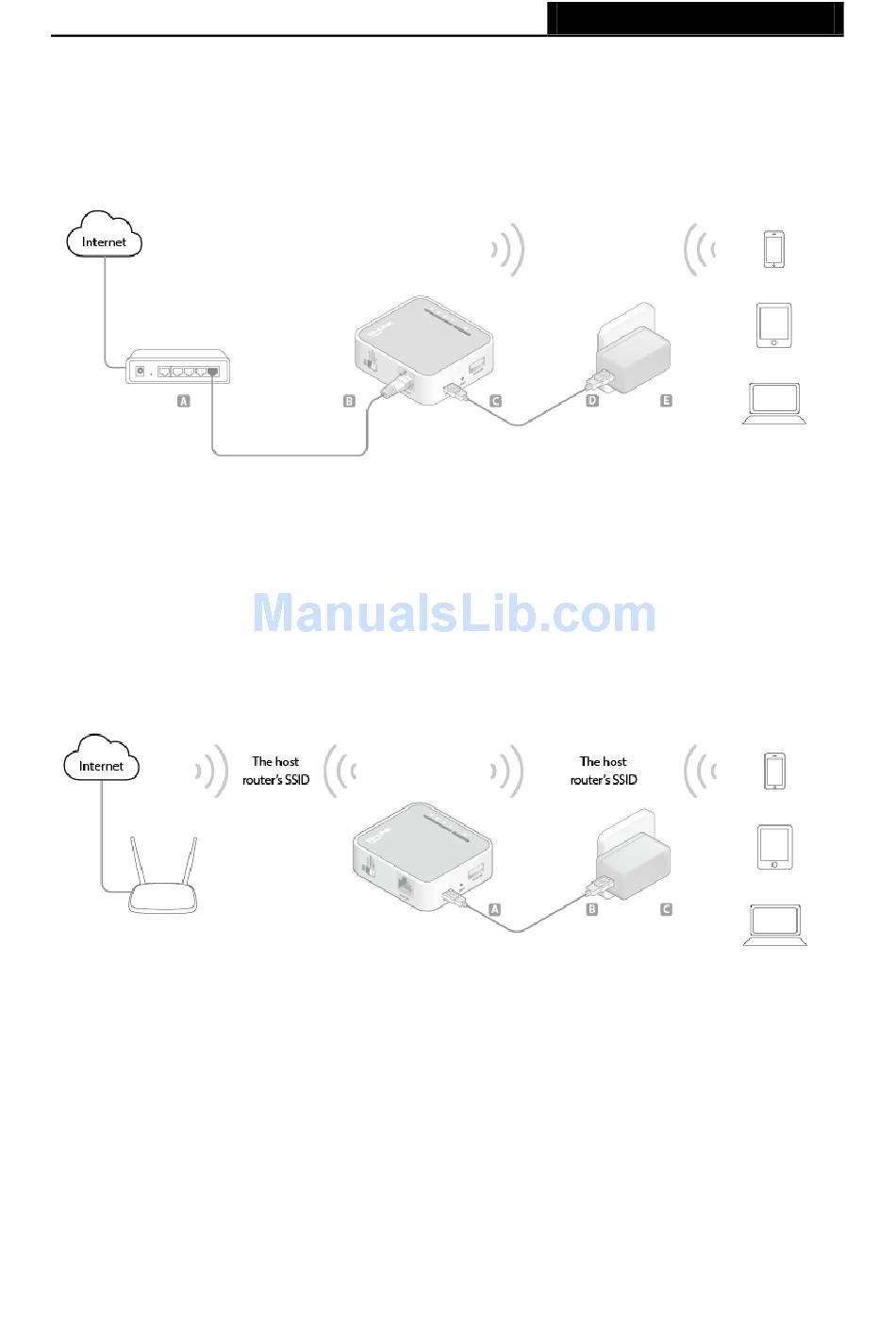

2. Connect the router according to the steps A to E in the diagram above.

2.3.4 Range Extender Mode

TL-WR902AC is used to extend the range of wireless signal of the existing AP or wireless router.
On this mode, the wired port LAN/WAN works as LAN. Computer could connect to the device by
either wired or wireless way.
1. Switch the mode of the router on AP/Rng Ext/Client.
2. Connect the router according to the steps A to C in the diagram above.

2.3.5 Client Mode

TL-WR902AC is used as a wireless network card to connect the wireless network signal or
wireless router.
On this mode, the wired port LAN/WAN works as LAN.
TL-WR902AC AC750 Wireless Travel Router
- 7 -
