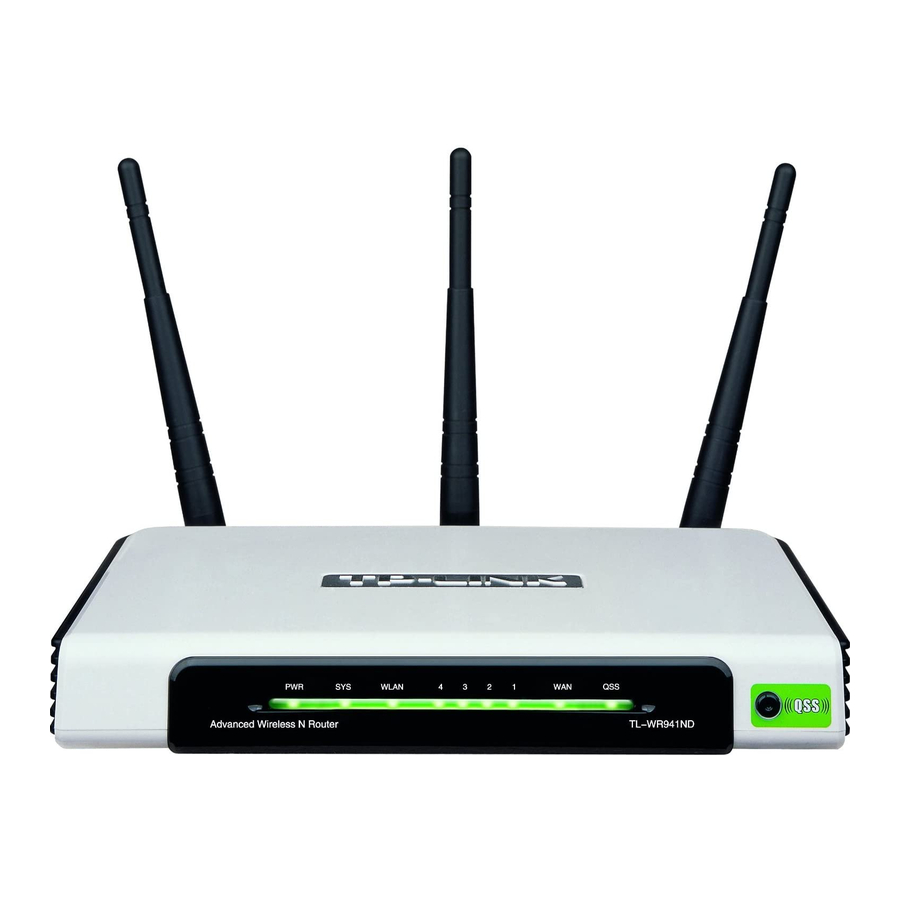

TP-Link TL-WR941ND Quick Installation Manual

Quick Installation Guide

300Mbps Wireless N Router
TL-WR940N/TL-WR941ND
MODEL NO.
2
Con guration for Windows with Setup Wizard
If you are using a MAC/Linux or a windows computer without a CD drive to run the mini CD, please refer to Appendix 1 for configuration.
Insert the TP-LINK Resource CD into the CD-ROM drive.
1
Select TL-WR941ND and click Easy Setup
2
Assistant.
7106504193 V4.0.1

Package Contents

TL-WR940N/TL-WR941ND Power Adapter
Ethernet Cable Resource CD
300Mbps Wireless N Router
MODEL NO. TL-WR940N/TL-WR941ND
QIG
Please choose your language and click START to
3
continue.
After con rming the hardware connection and the status
4
of LEDs, please click NEXT to continue.
1

Hardware Connection

WPS/RESET ON/OFF
To WAN port
To LAN port
3 2
Ethernet cable
1 Power o your modem.
Connect the WAN port on your router to the modem's LAN port with an Ethernet cable.
2
Connect your computer to one of the LAN ports labeled 1~4 on the router with an Ethernet cable.
3
4 Power on the modem and wait for one minute .
5 Plug the provided power adapter into the POWER jack on the back of the router and the other end to a standard electrical wall socket.
Press the ON/OFF button to power on the router.
1. Please confirm that the Wireless button (in the front panel) is ON so that client devices can connect to the router wirelessly.
2. The product model shown in this QIG is TL-WR941ND, as an example.
5 After the connectivity is checked successfully, please click
NEXT.
6 Select the connection type your ISP provides and click NEXT.
Here we take Dynamic IP for example.
Wall Socket
Wall Socket
Internet
Cable/DSL Modem
5
4
To the modem's LAN port
Ethernet cable
You can rename your wireless network on this page.
7
The default wireless name is TP-LINK_XXXXXX. Click
NEXT to continue.
You are recommended to select Most Security
8
(WPA2-PSK) to secure your wireless network.
The default wireless
password, the same
as the PIN code, is
printed on the label
at the bottom of the
Router.
(To be continued)
The Router is
pre-encrypted.
