TP-Link TL-WR940N Quick Installation Manual

Quick
Installation Guide

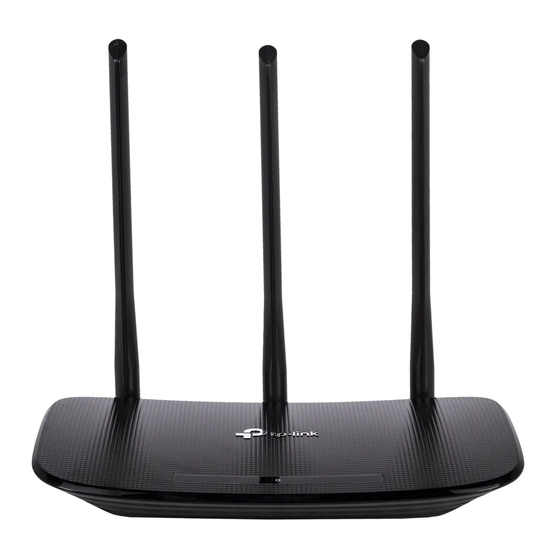

450Mbps Wireless N Router
TL-WR940N / TL-WR941ND
1. Connect the Hardware
1 Power off the modem,
and remove the backup
battery if any.
Power Off
INTERNET
Note: If your Internet comes via an Ethernet cable from the wall instead of any DSL/Cable/Satellite modems, please connect the Ethernet cable directly to the router's WAN port.
2. Configure the Router
1
Connect your computer to the router (Wired or Wireless).
Wired
2
Open a web browser on the computer and configure the router according to the following main clues.
a
Enter http://tplinkwifi.net in the address bar.
http://tplinkwifi.net
c
Select your WAN Connection Type, or click Auto-Detect
if you are unsure what your connection type is. Click Next
and follow the instructions to continue.
Quick Setup-WAN Connection Type
Auto-Detect
Dynamic IP (Most Common Cases)
Static IP
PPPoE/Russian PPPoE
L2TP/Russian L2TP
PPTP/Russian PPTP
Back
2 Connect the modem to the Internet
port on your router using an Ethernet
cable.
Ethernet cable
Type in admin for both the user name and password
and click Login.
Note: If the login window does not appear, please refer to FAQ->Q1.
Copyright © 2014 TP-LINK Technologies Co., Ltd. All rights reserved.
d
Verify or change the wireless network settings, and click Next.
Note: You may customize your wireless network name and password.
If you do so, please note down the new ones.
Quick Setup- Wireless
Wireless Network Name:
Wireless Security:
Wireless Password:
Next
Typical Connection
3 Power on the modem,
wait for 2 minutes and
then power on the router.
INTERNET
Wireless
Connect wirelessly by using
the default network name
Or
(SSID) and password
printed on the product label
at the bottom of the router.
admin
admin
Login
TP-LINK_XXXX
XXXXXXXX
Back Next
INTERNET
Wireless N Router
Modem
4
Power On
INTERNET
Power
On
Power On
b
Click Next to continue the Quick Setup.
Quick Setup
To continue, please click the Next button.
To exit, please click the Exit button.
Exit
e
Click Finish to complete the setup.
Quick Setup-Finish
Congratulations!
Back Finish
Check the following LEDs to
ensure the hardware connection
is correct.
Wireless Internet
On On
Next
Enjoy!
Now your wired and
wireless devices can
connect to the Internet !
