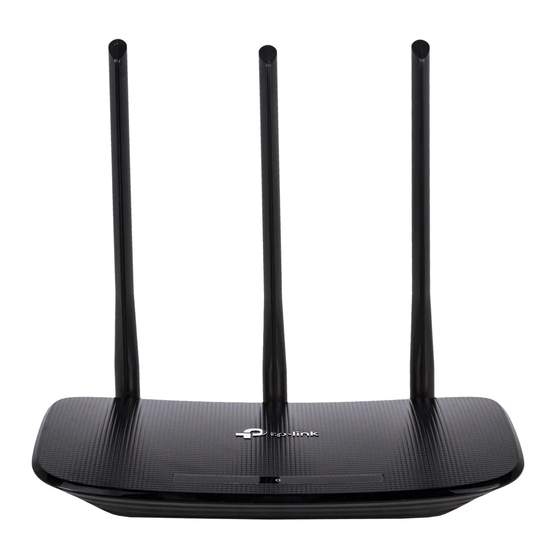

TP-Link TL-WR940N Quick Installation Manual
Hide thumbs Also See for TL-WR940N:

Advertisement

Quick Installation Guide

300Mbps Wireless N Router
Please select your preferred con guration method:
Method 1 >> Con guration via CD Setup Wizard
For Windows users only
Method 2 >> Con guration via Web-based Quick Setup Wizard
For Mac OS/Linux users or Windows users who cannot run mini CD
TL-WR940N/TL-WR941ND
MODEL NO.
Method 1 >> Con guration via CD Setup Wizard
This method is only for Windows users who can run the mini CD.
Insert the TP-LINK Resource CD into the CD-ROM drive.
1
Select TL-WR941ND and click Easy Setup
2
Assistant.
7106504456 V4.1.0

Package Contents

TL-WR940N/TL-WR941ND
Power Adapter
Ethernet Cable
Resource CD
300Mbps Wireless N Router
Please select your preferred con guration method:
Method 1 >> Con guration via CD Setup Wizard
For Windows users only
Method 2 >> Con guration via Web-based Quick Setup Wizard
For Mac OS/Linux users or Windows users who cannot run mini CD
MODEL NO.
TL-WR940N/TL-WR941ND
QIG
Select your language from the drop-down menu.
3
Click START and the Easy Setup Assistant will
guide you step by step to set up the Router.
Follow the instructions until you see the screen
4
below. Click FINISH to complete the setup.
You can click WEB management interface for more
advanced settings.
1

Hardware Connection

WPS/RESET ON/OFF
To WAN port
To LAN port
3
2
Ethernet cable
1
Power o your modem.
Connect the WAN port on your router to the modem's LAN port with an Ethernet cable.
2
Connect your computer to one of the LAN ports labeled 1~4 on the router with an Ethernet cable.
3
4
Power on the modem and wait for one minute .
5
Plug the provided power adapter into the POWER jack on the back of the router and the other end to a standard electrical wall socket.
Press the ON/OFF button to power on the router.
1. Please confirm that the WLAN light is ON so that client devices can connect to the router wirelessly. Press the Wireless button
(in the front panel) for more than 2 seconds to turn on or turn off the wireless function.
2. The product model shown in this QIG is TL-WR941ND, as an example.
Method 2 >> Con guration via Web-based Quick Setup Wizard
This method is for Mac OS/Linux users or Windows users who cannot run the mini CD.
Open your browser and type http://tplinklogin.net in the
1
address eld, then use the user name admin and password
admin to log in.
If the login window fails to pop up or you cannot access the
management page after the login window, please refer to
Troubleshooting-2.
Click Quick Setup in the main menu and click Next.
2
Wall Socket
Wall Socket
Internet
Cable/DSL Modem
5
4
To the modem's LAN port
Ethernet cable
The Router will automatically detect the Internet
connection. If the Internet is available, the Router will
direct you to Step 5; otherwise, you need to continue
with Step 3.
Select Auto-Detect to detect the Internet connection type
3
and click Next. (The Dynamic IP is the suitable connection
type for most cases, so we take it as an example in the
following.)
(To be continued...)
