Summary of Contents for Riva RC 4602HD
-
Page 1: Quick Installation Guide

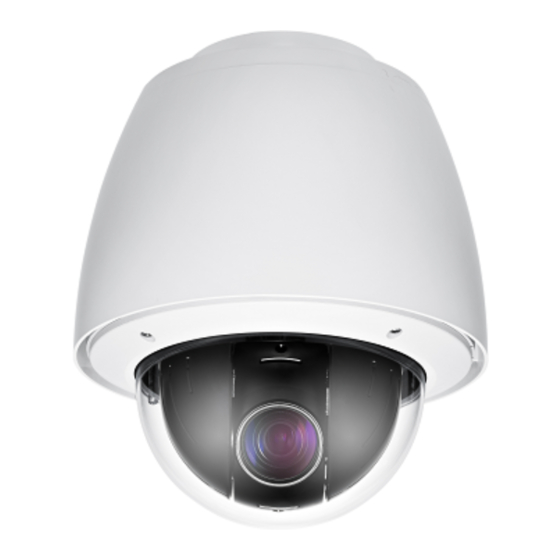

RC4602 Ver1.1 Quick Installation Guide RC 4602HD This manual provides instructions for quick installation and basic configuration of your IP device. www.rivatech.de... - Page 2 RC4602 Ver1.1 Step1. Connect cables to IP device Connect required cables to the device including the power cable and LAN cable. To see the correct positions of all connectors, refer to the following image below. PCB Top View LAN Cable ③...
- Page 3 RC4602 Ver1.1 Step2. Install IP device Secure three screws camera’s main body as three unit holders with metal rings attached in the end. 2) Connect all necessary cables to a PCB board in a cover shield before conjoining the shield to a camera’s main body. 3) Under the PCB board has a 32-pin connector which...
-
Page 4: Step4. Set Up Network Environment
RC4602 Ver1.1 Step3. Set the lens position The device is 360° rotating camera and fully controlled by web user interface. Once the unit’s installation is complete and connected properly, please refer to IPXIPN Web User’s Manual for the device’s camera configuration instructions. Step4. -
Page 5: Custom Ip Environment
RC4602 Ver1.1 Custom IP Environment IPAdminTool and the manual are provided on www.rivatech.de homepage. IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. To modify the device’s default IP address for customized network area;... - Page 6 RC4602 Ver1.1 3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device.
- Page 7 RC4602 Ver1.1 Step5. View video on web page Once the device’s proper IP address has been identified, type the URL in a web browser to access the camera. At first time access, installation window may pop up. The default root / pass username and password is 1.
-
Page 8: Resetting To The Factory Default Settings
User ID: root Password: pass More Information To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys Online Help”, which is available on www.rivatech.de homepage. www.rivatech.de... -
Page 9: Hexadecimal-Decimal Conversion Table
RC4602 Ver1.1 Hexadecimal-Decimal Conversion Table Refer to the following table when you convert the MAC address of your device to IP address. www.rivatech.de... - Page 10 RC4602 Ver1.1 www.rivatech.de...
