13. REMoTE CoNTRoL

All amplifier functions, including signal routing, output configuration, channel equalization and delay can
be controlled via K-Framework software.
To download your free K-Framework software and K-Framework User Guide, please navigate to the
K-array website http://www.k-array.com/software_download
Connect you computer to the USB input of the amplifier using a USB cable.
The amplifier features also 4-pins phoenix connector, for remote control of the amplifier via RS485
protocol. We recommend to use the K-USB accessory as a USB to serial converter. The K-USB allows you
to use a XLR cable or RJ45 cable to connect the computer to the amplifier. To connect the XLR or RJ45
cable to the phoenix connector, please follow the scheme below:
1: Ground
2: Data A-
3: Data B+
RS485 connection
15

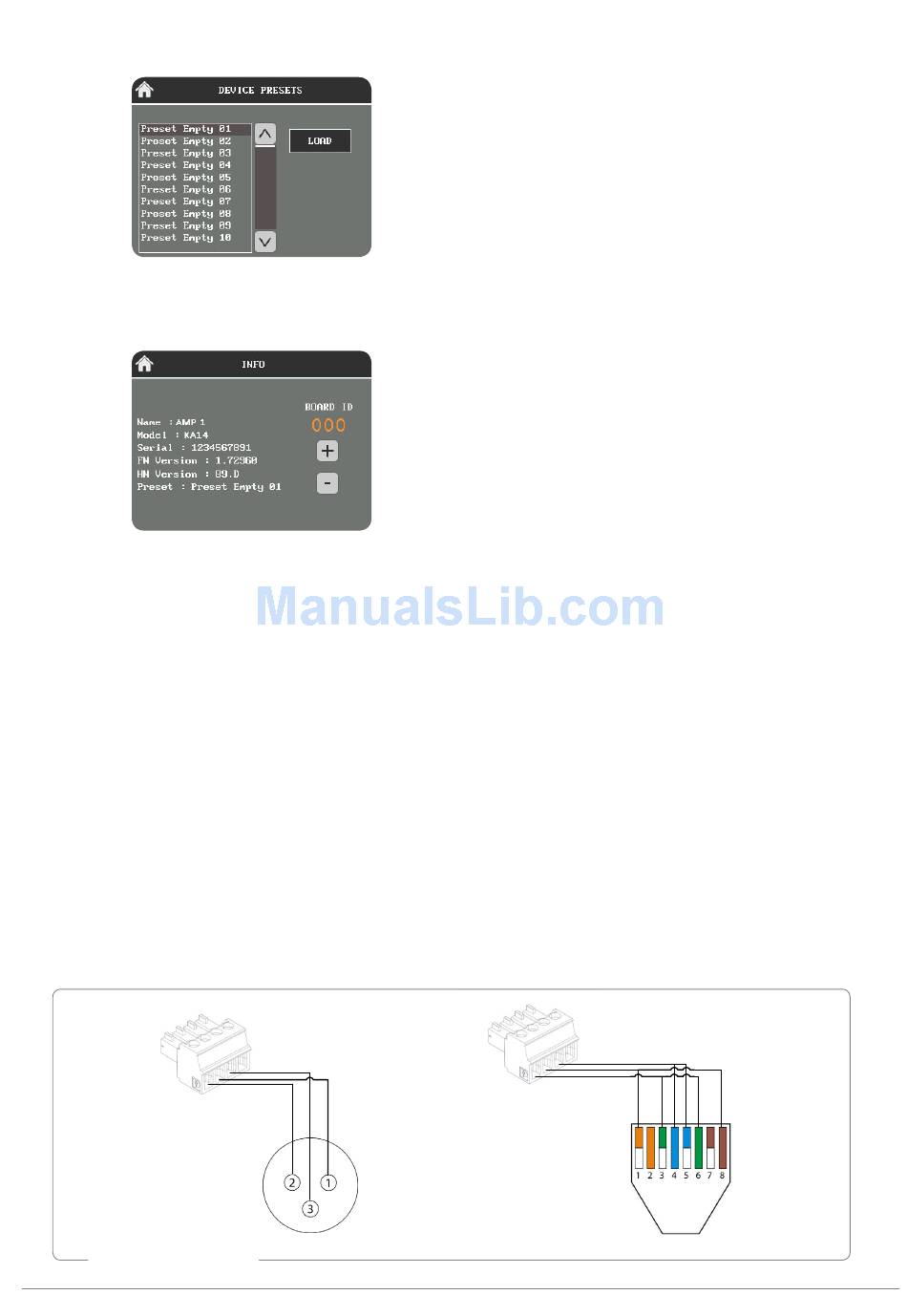

The Preset page allows users to load presets stored
on-board.
The Info page contains information about the
current software and firmware, and the Board ID
of the amplifier. When connecting the amplifier in
a K-framework network, please
devices in the network have different ID numbers.
Ver. 1.2
make sure that all
