12. ToUCh SCREEN fUNCTIoNS

The main functions of the onboard DSP can be managed with the integrated touch screen. Functions are
grouped into six pages, shown as icons on the Home page.

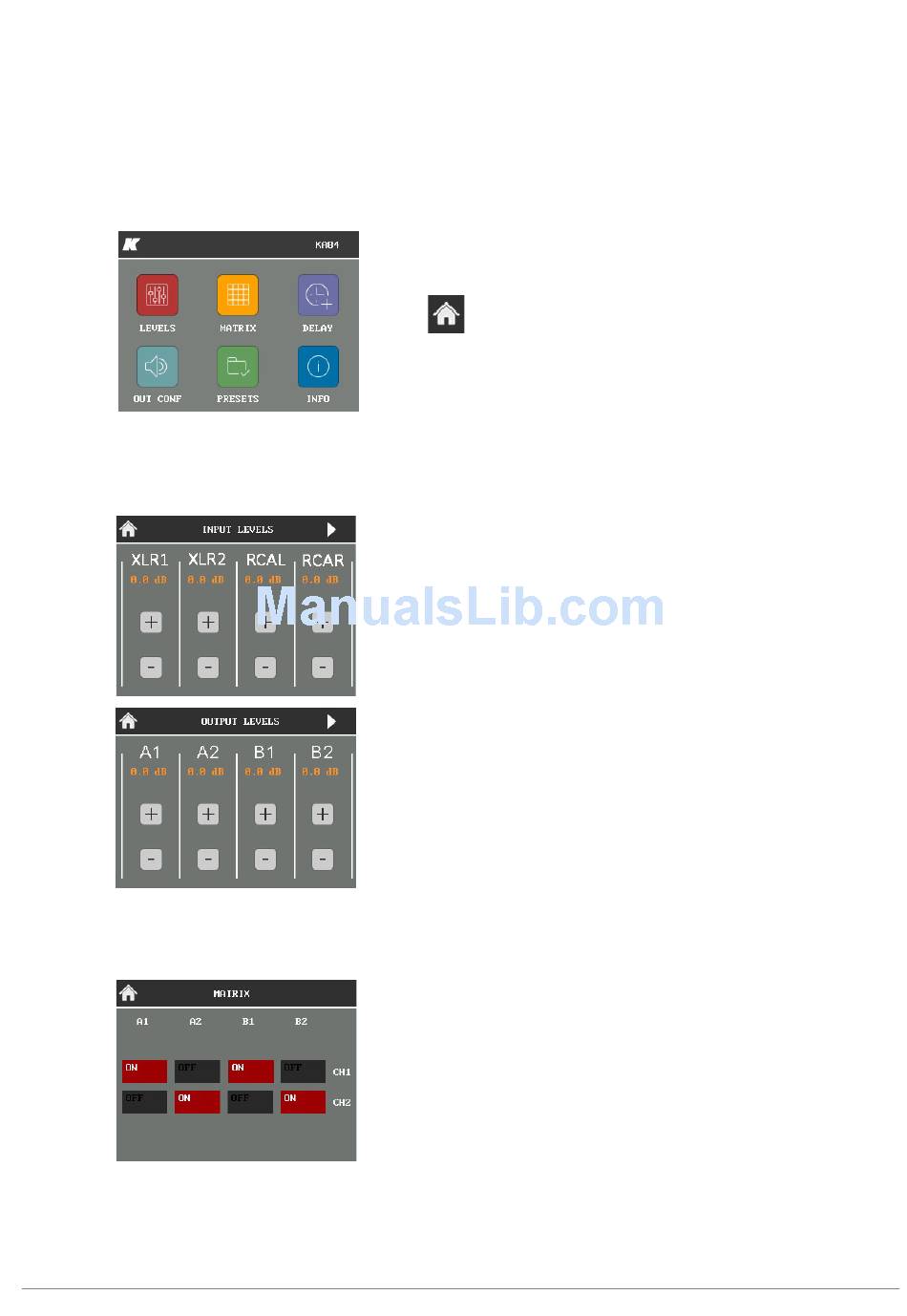

hoME PAGE
LEvELS
MATRIX
13
To reach the homepage from any other page,
touch the Home button.
The Levels page allows users to independently manage
the amplitude of the XLR and RCA input channels and all
the four output channels.
Click the arrow button on the top right corner to switch
between Input levels page and Output levels page .
The Matrix page allow users to manage the routing of the
two input channels to the four output channels.
Remember that, by default, the XLR 1 and RCA L physical
inputs are routed to the CH1 input channel, while the
XLR 2 and RCA R physical inputs are routed to the CH2
input channel (see Chapter 12). If you would like to
change these settings, connect a computer running the
K-framework software and follow the instructions you
find in the K-Framework User Guide .
