KA14
DELAY
CoNfIGURATIoN
Warning: If you are using speakers with selectable impedance, pay
14
attention to set the value indicated in the Configuration page!

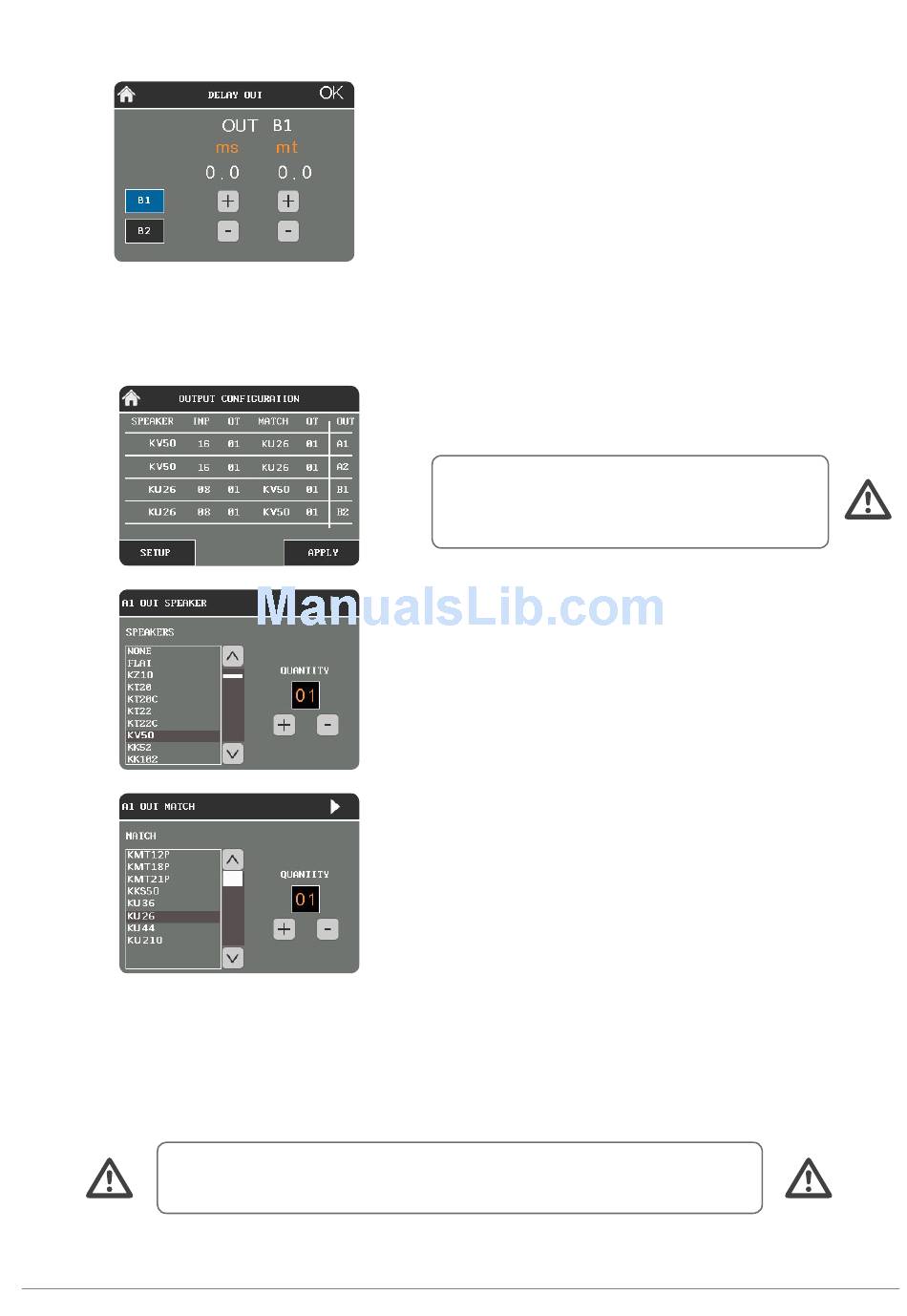

The Delay page allows users to independently set the
delays for the B1 and B2 output channels (up to 6 m).
The delays are available on these outputs because they
are often used to realign the subwoofers (connected
to the B1 and B2 outputs) with the mid-high speakers
(connected to the A1 and A2 outputs).
Before connecting the speakers to the amplifier, follow
the instructions below.
Warning. Failure to follow these instructions
could result in serious damage to the
speakers connected to the amplifier!
Go to the Configuration page and press the SETUP
button. Insert the model and the number of speakers
connected to Output A1 (one KV50 in the example on
the left). Press the arrow button on the top right corner.
Insert the model and the number of speakers you want
to match to the previous ones. For example, if you have
one KV50 mid-high array connected to the A1 output
and a KU26 sub connected to another output (or to
another amplifier) select KU26 to the A1 Out Match page
and the DSP will automatically compute the crossover
setting to obtain a perfect match between the speakers.
Press the arrow button on the top right corner. Repeat
Step 2 and 3 for all other outputs. At the end
will return to the main Configuration page . Press APPLY
to load all settings. The DSP will automatically adjust
the parameters on each output channel to match the
requirement for the speakers connected.
Ver. 1.2
you
