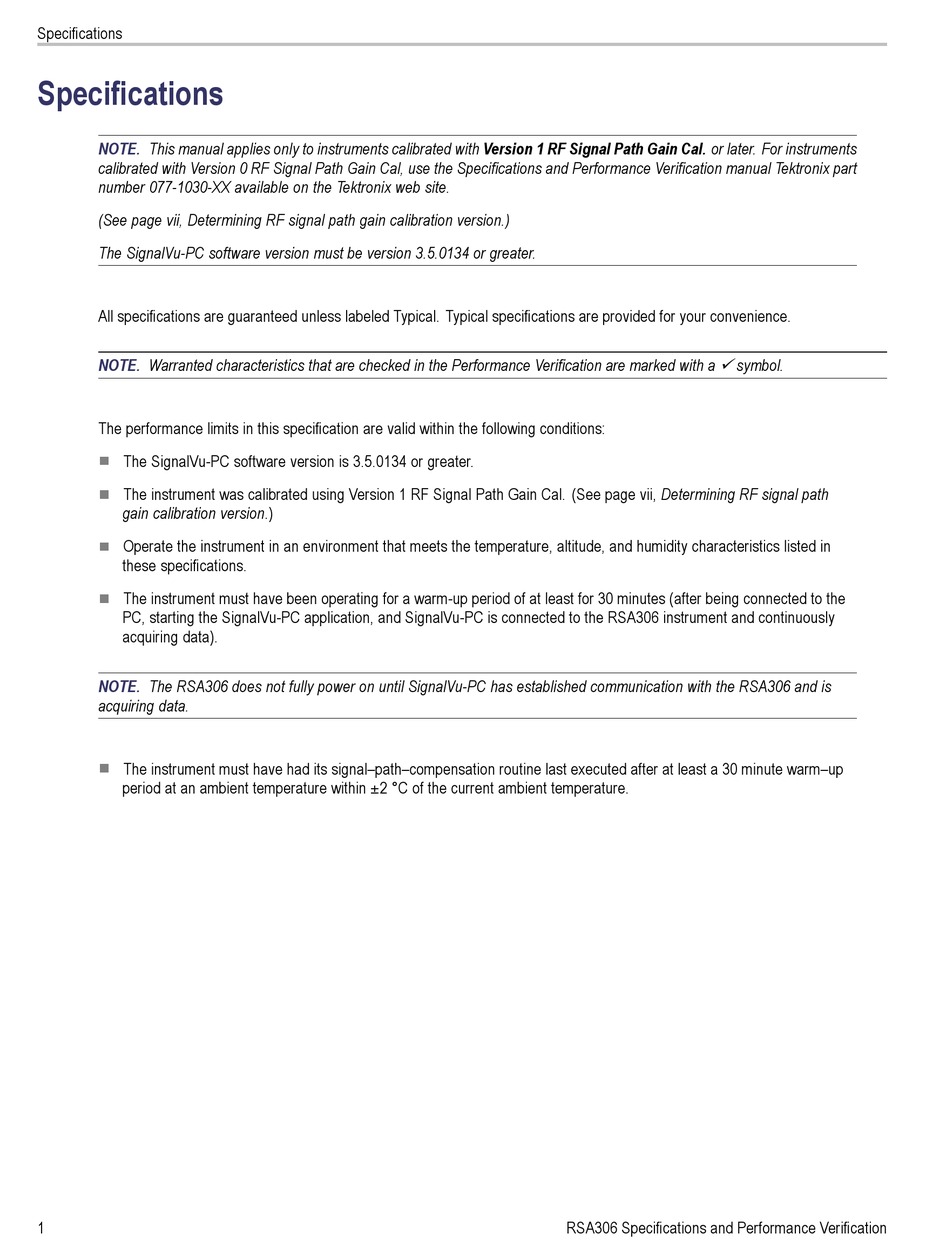

Specifications
Specifications
NOTE. This manual applies only to instruments calibrated with Version 1 RF Signal Path Gain Cal. or later. For instruments
calibrated with Version 0 RF Signal Path Gain Cal, use the Specifications and Performance Verification manual Tektronix part
number 077-1030-XX available on the Tektronix web site.
(See page vii, Determining RF signal path gain calibration version.)
The SignalVu-PC software version must be version 3.5.0134 or greater.
All specifications are guaranteed unless labeled Typical. Typical specifications are provided for your convenience.
NOTE. Warranted characteristics that are checked in the Performance Verification are marked with a
The performance limits in this specification are valid within the following conditions:
The SignalVu-PC software version is 3.5.0134 or greater.
The instrument was calibrated using Version 1 RF Signal Path Gain Cal. (See page vii, Determining RF signal path
gain calibration version.)
Operate the instrument in an environment that meets the temperature, altitude, and humidity characteristics listed in
these specifications.
The instrument must have been operating for a warm-up period of at least for 30 minutes (after being connected to the
PC, starting the SignalVu-PC application, and SignalVu-PC is connected to the RSA306 instrument and continuously
acquiring data).
NOTE. The RSA306 does not fully power on until SignalVu-PC has established communication with the RSA306 and is
acquiring data.
The instrument must have had its signal–path–compensation routine last executed after at least a 30 minute warm–up
period at an ambient temperature within ±2 °C of the current ambient temperature.
1
 symbol.
