Panasonic PN28058 Operation Manual For Cli

Layer 2 switching hub
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

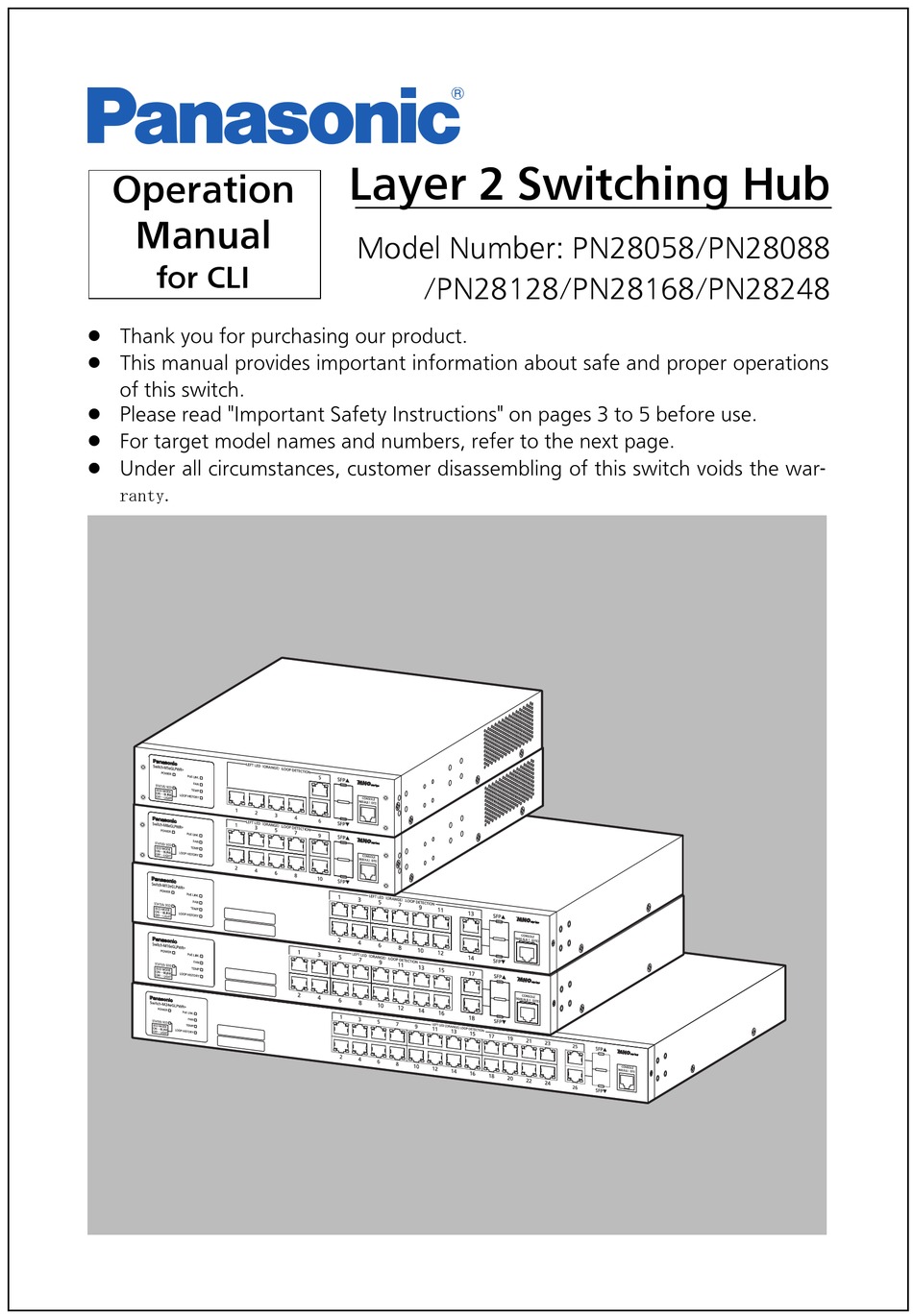

Operation
Manual
for CLI
Thank you for purchasing our product.
This manual provides important information about safe and proper operations
of this switch.
Please read "Important Safety Instructions" on pages 3 to 5 before use.
For target model names and numbers, refer to the next page.
Under all circumstances, customer disassembling of this switch voids the war -
ranty.
Layer 2 Switching Hub
Model Number: PN28058/PN28088
/PN28128/PN28168/PN28248

Advertisement

Table of Contents
loading

Related Manuals for Panasonic PN28058

Summary of Contents for Panasonic PN28058

  • Page 1 Layer 2 Switching Hub Operation Manual Model Number: PN28058/PN28088 for CLI /PN28128/PN28168/PN28248  Thank you for purchasing our product.  This manual provides important information about safe and proper operations of this switch.  Please read "Important Safety Instructions" on pages 3 to 5 before use.
  • Page 2 The target model for this Operation Manual is as follows. Model name Model number Firmware version Switch-M5eGLPWR+ PN28058-ID 1.0.0.02 and higher PN28058-TH PN28058-MY PN28058-SG Switch-M8eGLPWR+ PN28088-ID 1.0.0.02 and higher PN28088-TH PN28088-MY PN28088-SG Switch-M12eGLPWR+ PN28128-ID 1.0.0.02 and higher PN28128-TH PN28128-MY PN28128-SG...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Please Follow the Instructions This chapter contains important safety instructions for preventing bodily injury and/or property damage. You are required to follow them. ■Severity of bodily injury and/or property damage, which could result from incor - rect use of the switch, are explained below. This symbol indicates a potential hazard that could result in serious injury or death.
  • Page 4 ●Do not please this Switching Hub in harsh environment(such as near water, high humid, and/or high dust). Deviation could lead to fire, electric shock, and/or equipment failure. ●Do not place this Switching Hub under direct sunlight and/or high tem - perature.
  • Page 5 ●Use the bundled power cord (AC 100 - 240V specifications). Deviation could lead to electric shock, malfunction, and/or equipment failure.The warranty does not cover any problems resulting from the use of any power cord other than the one supplied. ●Unplug the power cord in case of equipment failure. Deviation such as keeping connected for a long time could lead to fire.

  • Page 6: Basic Instructions For The Use Of This Product

    Basic Instructions for the Use of This Product ●For inspection and/or repair, consult the retailer. ●Use commercial power supply from a wall socket, which is close and easily acces - sible to this Switching Hub. ●Unplug the power cord when installing or moving this Switching Hub. ●Unplug the power cord when cleaning this Switching Hub.
  • Page 7 ●When stacking Switching Hubs, leave a minimum of 20 mm space between them. 1. Panasonic will not be liable for any damage resulting from the operation not in accordance with this operation manual, or loss of communications, which may or may not be caused by failure and/or malfunction of this device.

  • Page 8: Table Of Contents

    Table of Contents Important Safety Instructions ........... 3 Basic Instructions for the Use of This Product ........6 Command Hierarchy ............10 Displaying Basic Information ..........13 Basic Switch Configuration ..........14 3.1. System Administration Configuration ........14 3.2. IP Address Configuration ..........16 3.3.
  • Page 9 Appendix.B. Easy IP Address Setup Function ........73 Appendix.C. Troubleshooting ............ 74 Appendix.D. After-sales Service ..........75...

  • Page 10: Command Hierarchy

    1. Command Hierarchy There are four hierarchical levels in the command hierarchy. (1) User mode: The User mode is the mode right after login. Only limited operations are avail - able. (2) Privileged mode: The Privileged mode allows to check the status of this switch and manipulate the configuration file.
  • Page 11 M8eGLPWR+# ･･････････････････････ Privileged mode M8eGLPWR+# configure ････････････ Privileged mode ⇒ Global configuration mode M8eGLPWR+(config)# ･･････････････ Global configuration mode interface command ・ The interface command enables to move from Global configuration mode to Interface configuration mode. M8eGLPWR+(config)# ･･････････････ Global configuration mode M8eGLPWR+(config)# interface vlan1 Global configuration mode ⇒...
  • Page 12 Re-entry assist ・ Entering the up arrow key displays a command that was entered immediately before. Candidate assist command ・ Entering a command followed by a question mark (?) displays candidates of suc - ceeding arguments. M8eGLPWR+# configure M8eGLPWR+(config)# ip address A.B.C.D - IP address (e.g.

  • Page 13: Displaying Basic Information

    2. Displaying Basic Information Enter "show sys-info" in "Privileged mode" to view the basic information of this switch as shown in Fig. 2-1. Basic information display command Privileged mode show sys-info M8eGLPWR+# show sys-info System up for : xxxday(s), xxhr(s), xxmin(s), xxsec(s) Boot / Runtime Code Version: x.x.x.xx / x.x.x.xx Hardware Information Version...

  • Page 14: Basic Switch Configuration

    3. Basic Switch Configuration 3.1. System Administration Configuration Configure the host name, installation location and contact information in "Global configuration mode." Confirm the configuration information by entering "show sys-info" in "Privileged mode." Host name configuration command Global configuration mode hostname <hostname> Host name delete command Global configuration mode no hostname...
  • Page 15 Example: Configuration example of the host name as PoESW-1, installation loca - tion as Office-2F, and contact information as Manager M8eGLPWR+> M8eGLPWR+> enable M8eGLPWR+# configure M8eGLPWR+(config)# hostname PoESW-1 PoESW-1(config)# snmp-server location Office-2F PoESW-1(config)# snmp-server contact Manager PoESW-1(config)# end PoESW-1# show sys-info System up for : 000day(s), 00hr(s), 00min(s), 00sec(s) Boot / Runtime Code Version: x.x.x.xx / x.x.x.xx...

  • Page 16: Ip Address Configuration

    3.2. IP Address Configuration Configure the IP address settings of this switch in "Interface configuration mode." Confirm the configuration information by entering "show ip conf" in "Privileged mode." IP address configuration command Global configuration mode ip address <ip-address> <mask> [<default-gateway>] Default gateway configuration command Global configuration mode ip default-gateway <ip-address>...
  • Page 17 Example 2. Configuration example of DHCP client M8eGLPWR+> enable M8eGLPWR+# configure M8eGLPWR+(config)# ip address dhcp M8eGLPWR+(config)# end M8eGLPWR+# show ip conf MAC Address : xx:xx:xx:xx:xx:xx IP Address : 0.0.0.0 Subnet Mask : 0.0.0.0 Default Gateway : 0.0.0.0 DHCP Mode : Enabled M8eGLPWR+# Fig.

  • Page 18: Snmp Configuration

    3.3. SNMP Configuration Configure the SNMP agent setting in "Global configuration mode." Confirm the configuration information by entering "show snmp" in "Privileged mode." SNMP enable command Global configuration mode snmp-server agent SNMP disable command Global configuration mode no snmp-server agent SNMP administration (read only or read/write configuration) command Global configuration mode snmp-server community <index>...
  • Page 19 SNMP trap (temperature detection) temperature configuration command Global configuration mode snmp-server enable traps temperature-threshold < temperature > SNMP trap (ddm) enable command Global configuration mode snmp-server enable traps ddm SNMP trap (ddm) disable command Global configuration mode no snmp-server enable traps ddm SNMP display command Privileged mode show snmp...

  • Page 20: Show Snmp

    M8eGLPWR+# show snmp SNMP Agent: Enabled SNMP Manager List: Status Privilege IP Address Community ---- -------- ----------- --------------- ---------------------------- Enabled Read-Write 192.168.1.200 private Enabled Read-Only 192.168.1.200 public Disabled Read-Only 0.0.0.0 Disabled Read-Only 0.0.0.0 Disabled Read-Only 0.0.0.0 Disabled Read-Only 0.0.0.0 Disabled Read-Only 0.0.0.0 Disabled...

  • Page 21: Port Configuration

    3.4. Port Configuration Configure port settings in "Interface configuration mode." Confirm the configura - tion information by entering "show interface info" in "Privileged mode." Port status enable command Interface configuration mode no shutdown Port status disable command Interface configuration mode shutdown Port mode configuration command Interface configuration mode...
  • Page 22 MNO series power saving mode display command Privileged mode show line configuration Module information display command Interface configuration mode getport Example 1: Configuration example of port speed and flow control M8eGLPWR+> enable M8eGLPWR+# configure M8eGLPWR+(config)# interface gi0/1 M8eGLPWR+(config-if)# speed-duplex 100-full M8eGLPWR+(config-if)# flow-control M8eGLPWR+(config-if)# end M8eGLPWR+# show interface info...
  • Page 23 Example 2: Configuration example of port name, jumbo frame, and EAP packet M8eGLPWR+> enable M8eGLPWR+# configure M8eGLPWR+(config)# jumbo M8eGLPWR+(config)# interface gi0/1 M8eGLPWR+(config-if)# name Gi0/1 M8eGLPWR+(config-if)# eap-forward M8eGLPWR+(config-if)# end M8eGLPWR+# show interface name Global Jumbo Status: Enabled Port Trunk Type Link Port Name EAP Pkt FW ---- ----- ----------- ---- ---------------...

  • Page 24: Access Condition Configuration

    3.5. Access Condition Configuration Configure access conditions to the switch in "Global configuration mode." Confirm the configuration information by entering "show terminal length" in "Privileged mode." Console timeout configuration command Global configuration mode console inactivity-timer <minutes> Console configuration display command Privileged mode show console Telnet server timeout configuration command...

  • Page 25: Show Console

    M8eGLPWR+> enable M8eGLPWR+# configure M8eGLPWR+(config)# console inactivity-timer 10 M8eGLPWR+(config)# end M8eGLPWR+# show console Console UI Idle Timeout: 10 Min. Console --------- Active M8eGLPWR+# configure M8eGLPWR+(config)# telnet-server inactivity-timer 10 M8eGLPWR+(config)# telnet-server 1 192.168.0.100 255.255.255.255 M8eGLPWR+(config)# telnet-server access-limitation enable M8eGLPWR+(config)# end M8eGLPWR+# show telnet-server Telnet UI Idle Timeout: 10 Min.
  • Page 26 M8eGLPWR+> enable M8eGLPWR+# configure M8eGLPWR+(config)# crypto key generate rsa M8eGLPWR+(config)# ip ssh time-out 1 M8eGLPWR+(config)# ip ssh authentication-timeout 60 M8eGLPWR+(config)# end M8eGLPWR+# show ip ssh SSH UI Idle Timeout: 1 Min. SSH Auth. Idle Timeout: 60 Sec. SSH Auth. Retries Time: SSH Server: Enabled(SSH) SSH Server key:...
  • Page 27 SNMP enable command Global configuration mode snmp-server agent SNMP disable command Global configuration mode no snmp-server agent User name and password configuration command Global configuration mode username <new username> * After entering the user name, enter the old password and the new password (twice.) M8eGLPWR+>...

  • Page 28: Mac Address Table Display And Registration Configuration

    MAC Address Table Display and Registra - 3.6. tion Configuration Configuration of the forwarding database (FDB: a list where MAC addresses required for FDB packet translation are memorized/recorded is done in "Global Configuration Mode." The content of FDB is displayed in "Privileged Mode." In addi - tion, static MAC addresses can be added or deleted.
  • Page 29 M8eGLPWR+> enable M8eGLPWR+# show mac-address-table static MAC Address Port VLAN ID ----------------- ------ ------- 00:00:00:00:00:01 M8eGLPWR+# show mac-address-table mac MAC Address Port ----------------- ---- 00:00:00:00:00:01 xx:xx:xx:xx:xx:xx M8eGLPWR+# M8eGLPWR+# show mac-address-table interface fa0/1 MAC Address Port ----------------- ---- 00:00:00:00:00:01 M8eGLPWR+# show mac-address-table multicast VLAN ID Group MAC address Group members ------- ----------------- -------------------------------------------------- M8eGLPWR+#...

  • Page 30: Sntp Configuration

    3.7. SNTP Configuration Configure time synchronization by SNTP in"Global configuration mode." Confirm the configuration information by entering "show sntp" in "Privileged mode." SNTP server IP address configuration command Global configuration mode sntp server <ip-address> SNTP time acquisition interval configuration command Global configuration mode sntp poll-interval <min>...

  • Page 31: Arp Table Display And Registration Configuration

    ARP Table Display and Registration Configu - 3.8. ration Display and configure the ARP table in "Global configuration mode." ARP aging time configuration command Global configuration mode arp timeout <value> ARP (static) configuration command Global configuration mode arp <ip-address> <MAC address> ARP (by MAC) display command Privileged mode show arp sort MAC...

  • Page 32: Lldp Configuration

    3.9. LLDP Configuration Configure LLDP in "Global configuration mode" or "Interface configuration mode." Confirm the configuration information by entering "show lldp status" in "Privileged mode." LLDP enable command Global configuration mode lldp enable LLDP disable command Global configuration mode no lldp enable LLDP transmission configuration command Interface lldp admin-status { both | rx-only | tx-only | disable }...

  • Page 33: Show Lldp Neighbor

    M8eGLPWR+> enable M8eGLPWR+# show lldp status LLDP Status : Enabled Port Admin Status Port Desc Sys Name Sys Desc Sys Cap Mgmt Addr ---- ------------ --------- -------- -------- -------- --------- Both Disabled Disabled Disabled Disabled Disabled Both Disabled Disabled Disabled Disabled Disabled Both Disabled Disabled Disabled Disabled Disabled...

  • Page 34: Advanced Switch Configuration

    4. Advanced Switch Configuration 4.1. VLAN Configuration Configure VLAN in "Global configuration mode" or "Interface configuration mode." Confirm the configuration information by entering "show vlan all" in "Privileged mode." VLAN creation configuration command Global configuration mode interface vlan<vlan-id> VLAN delete command Global configuration mode no interface vlan<vlan-id>...

  • Page 35: Show Vlan

    M8eGLPWR+> enable M8eGLPWR+# show vlan all Internet Mansion : Disabled Uplink : Total VLANs : 3 VLAN Name Type Mgmt Ports ---- ------------------------------ --------- ---- ---------------------------- Permanent UP Gi1, Gi2, Gi3, Gi4, Gi5 Gi6, Gi7, Gi8, Gi9, Gi10 Static DOWN Gi1, Gi2 Static DOWN Gi3, Gi4 M8eGLPWR+#...

  • Page 36: Link Aggregation Configuration

    4.2. Link Aggregation Configuration Configure the link aggregation in "Global configuration mode" or "Interface config - uration mode." Link aggregation configuration command lacp <LACP-key> <1-2 or 1,2,3 or 1,2,3-5> {Active | Pas - Global configuration mode sive | Manual} Link aggregation configuration delete command Global configuration mode no lacp <LACP-key>...

  • Page 37: Port Monitoring Configuration

    4.3. Port Monitoring Configuration Configure port monitoring settings in "Interface configuration mode." Confirm the configuration information by entering "show monitor" in "Privileged mode." Port monitoring configuration command Interface configuration mode port monitor <monitored port> direction {rx|tx|both} Port monitoring configuration disable command Interface configuration mode no port monitor Monitoring configuration information display command...

  • Page 38: Spanning Tree Configuration

    4.4. Spanning Tree Configuration Configure the spanning tree in "Global configuration mode" or "Interface configu - ration mode." Spanning tree enable command Global configuration mode spanning-tree rst enable Spanning tree disable command Global configuration mode no spanning-tree rst enable Spanning tree priority configuration command Global configuration mode spanning-tree rst priority <0x0000-0xF000>...
  • Page 39 M8eGLPWR+> enable M8eGLPWR+# show spanning-tree rst config Global RSTP Status: Enabled Protocol Version : RSTP Root Port Time Since Topology Change : 0 Sec. Root Path Cost Topology Change Count Designated Root : 8000 xxxxxxxxxxxx Bridge ID : 8000 xxxxxxxxxxxx Hello Time : 2 Sec.

  • Page 40: Qos (Quality Of Service) Configuration

    4.5. QoS (Quality of Service) Configuration Configure QoS settings in "Global configuration mode." Display the basic informa - tion by entering "show mls qos" in "Privileged mode." QoS enable command Global configuration mode mls qos QoS disable command Global configuration mode no mls qos DiffServ enable command Global configuration mode...

  • Page 41: Show Mls Qos

    M8eGLPWR+> enable M8eGLPWR+# configure M8eGLPWR+(config)# mls qos M8eGLPWR+(config)# end M8eGLPWR+# show mls qos Quality of Service Status: Enabled M8eGLPWR+# show priority-queue cos-map Priority Traffic Class -------- ------------- 0: Lowest 3: Highest M8eGLPWR+# Fig. 4-6 Display of the QoS configuration (show mls qos) (show priority-queue cos-map)
  • Page 42 M8eGLPWR+> enable M8eGLPWR+# configure M8eGLPWR+(config)# priority-queue diffserv-map 63 3 M8eGLPWR+(config)# priority-queue diffserv-map 62 3 M8eGLPWR+(config)# priority-queue diffserv-map 0 1 M8eGLPWR+(config)# mls diffserv M8eGLPWR+(config)# end M8eGLPWR+# show mls diffServ Diffserv Status: Enabled M8eGLPWR+# show priority-queue diffserv-map Diffserv Status : Enabled 0 : Lowest 3 : Highest DSCP Priority DSCP Priority DSCP Priority DSCP Priority DSCP Priority ----- -------- ----- -------- ----- -------- ----- -------- ----- -------- M8eGLPWR+#...

  • Page 43: Bandwidth Control Configuration

    4.6. Bandwidth Control Configuration Configure bandwidth control settings in "Interface configuration mode." Display the basic information by entering "show egress-rate-limit" in "Privileged mode." Bandwidth control configuration command Interface configuration mode egress-rate-limit [<unit(1Mbps/unit)>] Bandwidth control enable command Interface configuration mode egress-rate-limit Bandwidth control disable command Interface configuration mode no egress-rate-limit...

  • Page 44: Ieee802.1X Port-Based Authentication Configuration

    IEEE802.1X Port-Based Authentication Con - 4.7. figuration Configure IEEE802.1X in "Global configuration mode" and "Interface configuration mode." Display the basic information by entering "show dot1x <1-2 or 1,2,3 or 1,2,3-5>" in "Privileged mode." NAS ID configuration command Global configuration mode dot1x nas-id <NASID>...

  • Page 45: Show Dot1X

    M8eGLPWR+> enable M8eGLPWR+# configure M8eGLPWR+(config-if)# interface gi0/2 M8eGLPWR+(config-if)# dot1x port-control auto M8eGLPWR+(config-if)# dot1x re-authentication M8eGLPWR+(config-if)# dot1x re-auth-timer local M8eGLPWR+(config-if)# end M8eGLPWR+# show dot1x 1-2 NAS ID : Nas1 Port No Port Status : Authorized Port Control : Force Authorized Transmission Period : 30 seconds Supplicant Timeout...

  • Page 46: Igmp Snooping Configuration

    4.8. IGMP Snooping Configuration Configure IGMP snooping in "Global configuration mode" and "Interface configura - tion mode." IGMP snooping enable command Global configuration mode ip igmp snooping enable IGMP snooping disable command Global configuration mode no ip igmp snooping enable IGMP snooping aging time configuration command Global configuration mode ip igmp snooping aging-time {router|host} <sec>...
  • Page 47 IGMP snooping configuration display command Privileged mode show ip igmp snooping conf IGMP snooping leave mode configuration display command Privileged mode show ip igmp snooping mrouter IGMP snooping router port display command Privileged mode show ip igmp snooping mrouter IGMP snooping VLAN filter configuration display command Privileged mode show ip igmp snooping vlan-filter-table If the VLAN function is disabled when you enable the IGMP snooping func -...
  • Page 48 M8eGLPWR+> enable M8eGLPWR+# configure M8eGLPWR+(config)# interface fa0/1 M8eGLPWR+(config-if)# ip igmp snooping immediate-leave M8eGLPWR+(config-if)# end M8eGLPWR+# show ip igmp snooping leave-mode Leave Delay Time : 5 sec Port Mode ------ ------------ Immediate Normal Normal Normal Normal Normal Normal Normal Normal Normal M8eGLPWR+# Fig.

  • Page 49: Poe Power Supply Function Configuration

    4.9. PoE Power Supply Function Configuration Configure PoE in "Global configuration mode" and "Interface configuration mode." Configuration command for a supply method in case of overload peth disconnection-method {next-port | low-prior - Global configuration mode ity} PoE supply capacity threshold configuration command for SNMP trap sendout Global configuration mode peth usage-threshold <percent>...

  • Page 50: Poe Scheduler Configuration

    4.9.1. PoE Scheduler Configuration Configure PoE scheduler settings in "Global configuration mode." PoE scheduler enable command Global configuration mode peth schedule enable PoE scheduler disable command Global configuration mode no peth schedule enable Port list configuration command Global configuration mode peth schedule portlist <Index>...
  • Page 51 Date list display command Privileged mode show peth schedule datelist <datelist Index> Date list schedule configuration display command Privileged mode show peth schedule datelist configuration S24GPWR# show peth schedule PoE Schedule Global Status : Enabled Sorting Method : By Index PoE Schedule: Total Entries : 6 Index Name...
  • Page 52 S24GPWR# show peth schedule configuration-by-port 1 Selected Port Number : 1 PoE Schedule: Total Entries : 6 Index Class. Date Time Action Status ----- ------- ------------------------------------ ----- ------ -------- 1 Daily 20:00 Enabled 2 Daily 07:00 Enabled 3 Weekly Sat, Sun 01:00 OFF/ON Enabled 4 Monthly...
  • Page 53 S24GPWR# show peth schedule datelist 1 Date List Index : 1 Year : 2014 Date: Month ------ ------------------------------------------------------------------- 1,13 15,23 3,24 Fig. 4-18 Display of the date list configuration (show peth schedule datelist 1) S24GPWR# show peth schedule datelist configuration Total Entries : 2 Index Date List...

  • Page 54: Storm Control Configuration

    4.10. Storm Control Configuration Configure storm control settings in "Interface configuration mode." Confirm the configuration information by entering "show storm-control" in "Privileged mode." Storm control (broadcast) enable command Interface configuration mode storm-control broadcast Storm control (broadcast) disable command Interface configuration mode no storm-control broadcast Storm control (multicast) enable command Interface configuration mode...

  • Page 55: Ring Protocol Configuration

    4.11. Ring Protocol Configuration Configure the ring protocol in "Ring configuration mode." Display the basic infor - mation by entering "show rrp status <Domain Name>" in "Privileged mode." Ring protocol enable command Global configuration mode enable rrp status Ring protocol disable command Global configuration mode no enable rrp status RRP domain creation configuration command...
  • Page 56 M8eGLPWR+> enable M8eGLPWR+# configure M8eGLPWR+(config)# rrp domain ring-1 M8eGLPWR+(config-rrp)# rrp type master M8eGLPWR+(config-rrp)# primary port 9 M8eGLPWR+(config-rrp)# secondary port 10 M8eGLPWR+(config-rrp)# control vlan1000 M8eGLPWR+(config-rrp)# data vlan1 M8eGLPWR+(config-rrp)# rrp type master M8eGLPWR+(config-rrp)# exit M8eGLPWR+(config)# enable rrp status M8eGLPWR+(config)# end M8eGLPWR+# show rrp status ring-1 RRP Domain Name : ring-1 RRP Node Type...

  • Page 57: Line Configuration

    4.12. Line Configuration Configure the Loop detection and blocking function and MNO series power saving mode settings in "Interface configuration mode." 4.12.1. Loop Detection and Blocking Configuration Enable or disable the Loop detection and blocking function and configure the auto-recovery setting in "Interface configuration mode." Confirm the loop history by entering "show line loopback history"...
  • Page 58 M8eGLPWR+> enable M8eGLPWR+# configuration M8eGLPWR+(config)# line loopback enable M8eGLPWR+(config)# interface gi0/1 M8eGLPWR+(config-if)# line loopback M8eGLPWR+(config-if)# end M8eGLPWR+# show line loopback configuration Global Loop Detection Status: Enabled Port Trunk Link State Loop Detect Recovery Recovery Time ---- ----- ---- ----------- ------------- ----------- -------------- Forwarding Enabled Enabled...

  • Page 59: Displaying And Configuring Sfp Module Status Check Function

    4.13. Displaying and Configuring SFP module status check function View the system log in "Privileged mode" and configure the SFP module status check function setting in "Interface configuration mode". SFP module status display command Privileged mode show ddm port <port-list>n Rx-power upper threshold (alarm) configuration command Interface configuration mode ddm limit rx-power high-alarm {auto | <value>}...
  • Page 60 Current upper threshold (alarm) configuration command Interface configuration mode ddm limit bias high-alarm {auto | <value>} Current upper threshold (warning) configuration command Interface configuration mode ddm limit bias high-warning {auto | <value>} Current lower threshold (alarm) configuration command Interface configuration mode ddm limit bias low-alarm {auto | <value>} Current lower threshold (warning) configuration command Interface configuration mode...

  • Page 61: Displaying Statistic Information

    5. Displaying Statistic Information Display the packet counter statistic information in "Privileged mode." Statistic information (traffic) display command Privileged mode show interface counters <interface port> {since-reset | since-up} Statistic information (error) display command Privileged mode show interface counters errors <interface port> M8eGLPWR+# show interface counters gi0/1 Elapsed Time Since System Reset: 000:01:51:06 Total RX Bytes...

  • Page 62: Transferring Configuration Files

    6. Transferring Configuration Files You can transfer the configuration information of the switch to the TFTP server or obtain the information from the TFTP server in "Privileged mode." Configuration file upload command Privileged mode copy running-config tftp <ip-address> <filename> Configuration file download command Privileged mode copy tftp <ip-address>...

  • Page 63: Firmware Upgrade

    7. Firmware Upgrade You can upgrade the firmware version of the switch in "Privileged mode." Firmware upgrade execution command Privileged mode copy tftp <ip-address> <filename> image M8eGLPWR+> enable M8eGLPWR+# copy tftp 192.168.1.1 PN28088_NEW.rom image Downloading Image From Remote Server. (Press CTRL-C to quit downloading) Receive 134233 bytes Fig.

  • Page 64: Reboot

    8. Reboot You can reboot the switch in "Privileged mode." As a runtime option, select the reboot type from normal, restore to factory default settings, and restore to factory default settings except IP address. Reboot command Privileged mode reboot {normal | default | default-except-IP} M8eGLPWR+>...

  • Page 65: Exception Handler

    9. Exception Handler Configure reboot types and execute reboot in "Global configuration mode." Exception handler enable command Global configuration mode exception-handler enable Exception handler disable command Global configuration mode no exception-handler enable Exception handler configuration command Global configuration mode exception-handler mode { debug-message | system-reboot | both } Exception handler configuration display command Privileged mode...

  • Page 66: Ping Execution

    10. Ping Execution Ping can be used to verify communications. Ping command All modes ping <ip-address> Ping (number of echo requests) command All modes ping <ip-address> [-n <count>] Ping (timeout) command All modes ping <ip-address> [-w <timeout(sec)>] M8eGLPWR+> ping 192.168.1.1 Type Ctrl-C to abort.

  • Page 67: Displaying And Configuring The System Log

    11. Displaying and Configuring the System Log View the system log in "Privileged mode" and configure the system log setting in "Global configuration mode." System log display command Privileged mode show syslog [conf | tail <1-1024>] System log clear command Global configuration mode syslog clear System log enable command...

  • Page 68: Show Syslog

    M8eGLPWR+# show syslog Entry Time(YYYY/MM/DD HH:MM:SS) Event ----- ------------------------- ------------------------------------------- 2001/01/01 00:00:29 Reboot: Factory Default 2001/01/01 00:05:47 Login from console 2001/01/01 00:06:16 Configuration changed 2001/01/01 00:00:24 Switch start 2001/01/01 00:00:56 Login from console 2001/01/01 00:01:03 Set IP address <192.168.0.1> 2001/01/01 00:02:25 Runtime code changes 2001/01/01 00:03:33 Reboot: Normal...

  • Page 69: Saving Configuration Information

    12. Saving Configuration Information Save the configuration information in "Privileged mode." Configuration save command Privileged mode copy running-config startup-config M8eGLPWR+> enable M8eGLPWR+# copy running-config startup-config Please wait a minute. Save current state to startup config successfully!! M8eGLPWR+# Fig. 12-1 Saving the configuration information (copy running-config startup-config)

  • Page 70: Displaying Configuration Information

    13. Displaying Configuration Information View the configuration information in "Privileged mode." Configuration information display command Privileged mode show running-config Saved configuration information display command Privileged mode show startup-config M8eGLPWR+> enable M8eGLPWR+# show running-config Building Configuration... Current Configuration: ! -- start of configuration -- ! -- Software Version : x.x.x.xx -- enable config...

  • Page 71: Obtaining Technical Support Information

    14. Obtaining Technical Support Infor - mation Technical support information can be obtained in the "Privileged mode." This infor - mation is useful if obtained in advance before inquiry. Because the display content is very long, we recommend to set terminal length to "0"...

  • Page 72: Appendix.a. Specifications

    Appendix.A. Specifications Refer to "Operation Manual for Menu Interface" for your switching hub to read the specifications.
  • Page 73 The following are points to note when using the easy IP address setup function. [Known compatible software] Panasonic Corporation "Easy IP Setup" V3.01/V4.00/V4.24R00 Panasonic System Networks Co., Ltd. "Easy Config" Ver3.10R00 Panasonic Eco Solutions Networks Co., Ltd. "ZEQUOASSIST" Ver. 2.0.3.0 [User-settable items] * IP address, subnet mask, and default gateway * System name * This item can be configured only with the software "Easy Config."...
  • Page 74 Appendix.C.Troubleshooting If you find any problems, please take the following steps to check. ◆ LED ■ The POWER LED (Power) is not lit. ● Check if the power cord is disconnected. Please confirm that the power cord is securely connected to the power port ●...
  • Page 75 Appendix.D.After-sales Service 1. Warranty card A warranty card is included in the operating instructions (paper) provided with this switch. Be sure to confirm that the date of purchase, dealer (company) name, etc., have been entered in the warranty card and then receive it from the shop.
  • Page 76 (* You can check the version on the screen described in section 4.4 of the Operation Manual - Menu Interface.) © Panasonic Eco Solutions Networks Co., Ltd. 2015-2017 Panasonic Eco Solutions Networks Co., Ltd. 2-12-7, Higashi-Shimbashi, Minato-ku, Tokyo Japan, 105-0021 URL: http://panasonic.co.jp/es/pesnw/english/...

This manual is also suitable for:

Pn28088Pn28128Pn28168Pn28248
