Table 2. Intel® Xeon® Processor Scalable Family W/ Integrated Intel® Omni-Path Fabric - Features Table - Intel R2000WF Configuration Manual

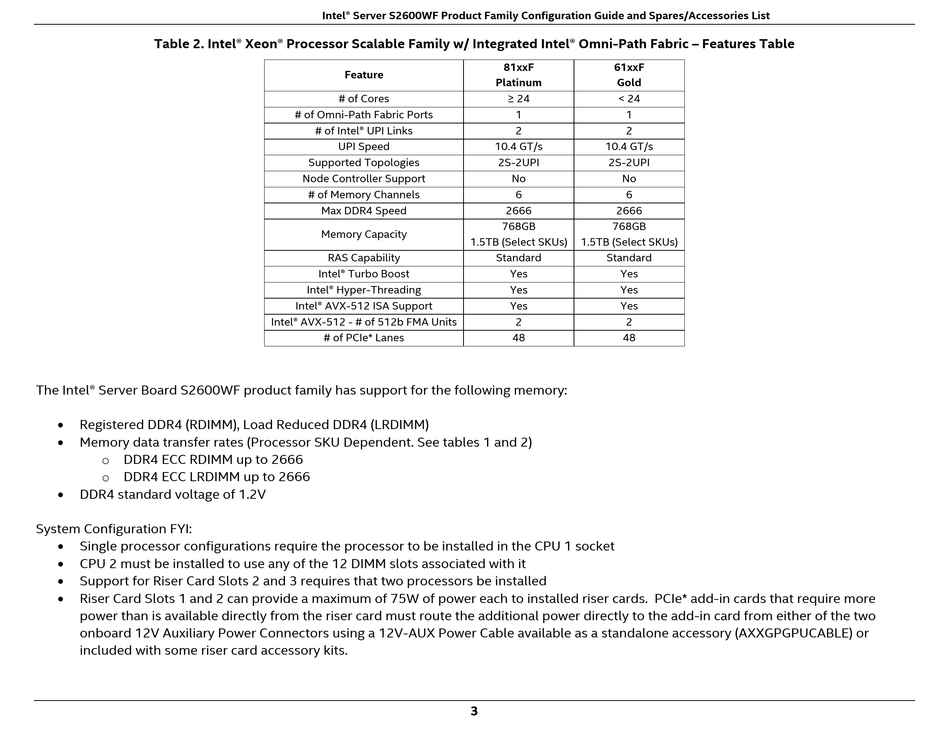

Table 2. Intel® Xeon® Processor Scalable Family w/ Integrated Intel® Omni-Path Fabric – Features Table
The Intel® Server Board S2600WF product family has support for the following memory:
 Registered DDR4 (RDIMM), Load Reduced DDR4 (LRDIMM)
 Memory data transfer rates (Processor SKU Dependent. See tables 1 and 2)
o DDR4 ECC RDIMM up to 2666
o DDR4 ECC LRDIMM up to 2666
 DDR4 standard voltage of 1.2V
System Configuration FYI:
 Single processor configurations require the processor to be installed in the CPU 1 socket
 CPU 2 must be installed to use any of the 12 DIMM slots associated with it
 Support for Riser Card Slots 2 and 3 requires that two processors be installed
 Riser Card Slots 1 and 2 can provide a maximum of 75W of power each to installed riser cards. PCIe* add-in cards that require more
power than is available directly from the riser card must route the additional power directly to the add-in card from either of the two
onboard 12V Auxiliary Power Connectors using a 12V-AUX Power Cable available as a standalone accessory (AXXGPGPUCABLE) or
included with some riser card accessory kits.
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Feature
# of Cores
# of Omni-Path Fabric Ports
# of Intel® UPI Links
UPI Speed
Supported Topologies
Node Controller Support
# of Memory Channels
Max DDR4 Speed
Memory Capacity
RAS Capability
Intel® Turbo Boost
Intel® Hyper-Threading
Intel® AVX-512 ISA Support
Intel® AVX-512 - # of 512b FMA Units
# of PCIe* Lanes
81xxF 61xxF
Platinum Gold
≥ 24 < 24
1 1
2 2
10.4 GT/s 10.4 GT/s
2S-2UPI 2S-2UPI
No No
6 6
2666 2666
768GB 768GB
1.5TB (Select SKUs) 1.5TB (Select SKUs)
Standard Standard
Yes Yes
Yes Yes
Yes Yes
2 2
48 48
3
