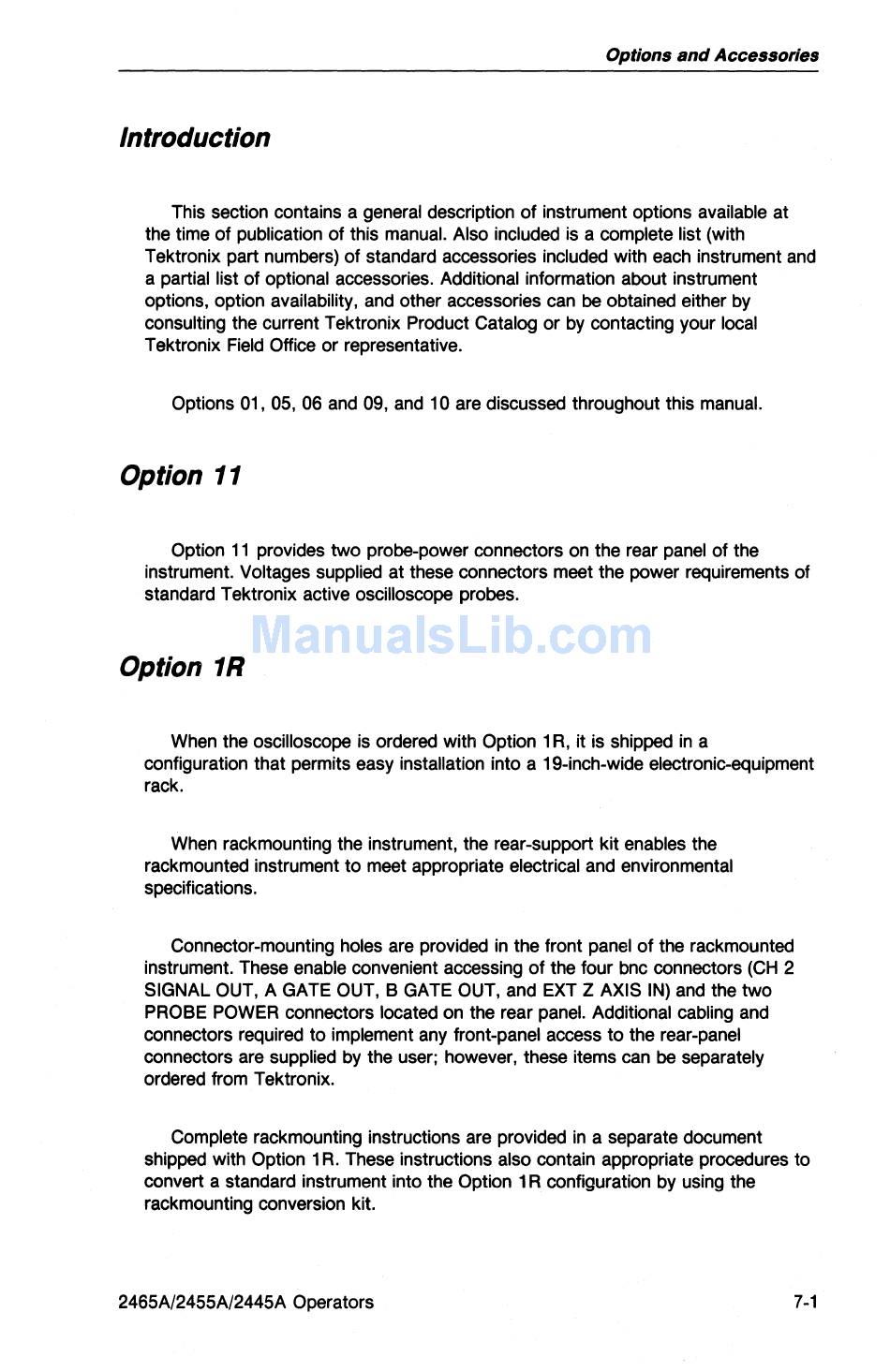

Options and Accessories
Introduction
This section contains a general description of instrument options available at
the time of publication of this manual. Also included is a complete list (with
Tektronix part numbers) of standard accessories included with each instrument and
a partial list of optional accessories. Additional information about instrument
options, option availability, and other accessories can be obtained either by
consulting the current Tektronix Product Catalog or by contacting your local
Tektronix Field Office or representative.
Options 01, 05, 06 and 09, and 10 are discussed throughout this manual.
Option 11
Option 11 provides two probe-power connectors on the rear panel of the
instrument. Voltages supplied at these connectors meet the power requirements of
standard Tektronix active oscilloscope probes.
Option 1R
When the oscilloscope is ordered with Option 1 R, it is shipped in a
configuration that permits easy installation into a 19-inch-wide electronic-equipment
rack.
When rack mounting the instrument, the rear-support kit enables the
rackmounted instrument to meet appropriate electrical and environmental
specifications.
Connector-mounting holes are provided in the front panel of the rackmounted
instrument. These enable convenient accessing of the four bnc connectors (CH 2
SIGNAL OUT, A GATE OUT, B GATE OUT, and EXT Z AXIS IN) and the two
PROBE POWER connectors located on the rear panel. Additional cabling and
connectors required to implement any front-panel access to the rear-panel
connectors are supplied by the user; however, these items can be separately
ordered from Tektronix.
Complete rackmounting instructions are provided in a separate document
shipped with Option 1 R. These instructions also contain appropriate procedures to
convert a standard instrument into the Option 1 R configuration by using the
rackmounting conversion kit.
2465A/2455A/2445A Operators
7-1
