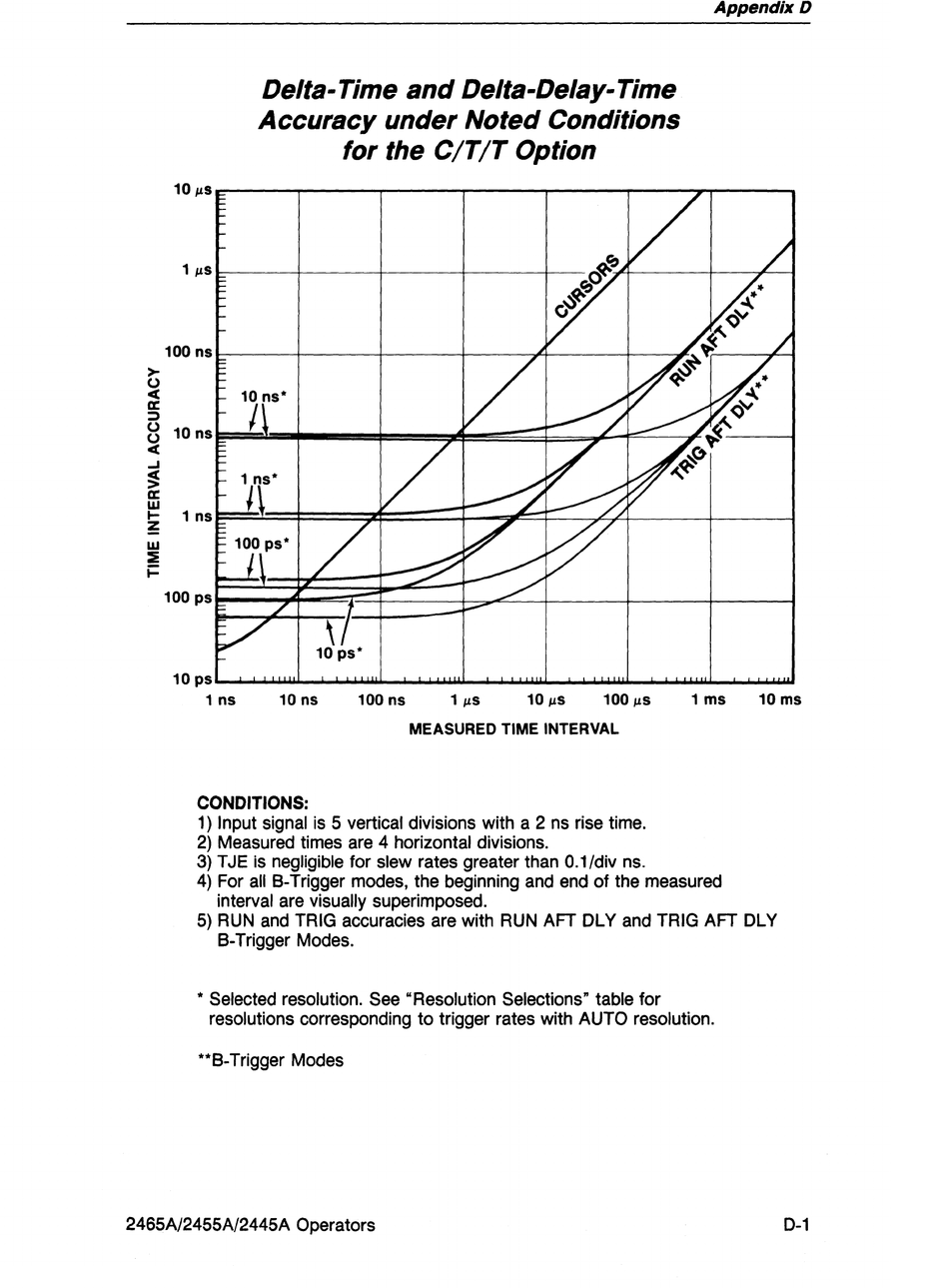

Delta- Time and Delta-Delay- Time
Accuracy under Noted Conditions
for the C/T/T Option
Appendix 0
10ps~~~~~~~~~~~~~.w~~~~~~~~~~~
1
ns 10 ns 100 ns 100
ILS
1 ms 10 ms
MEASURED TIME INTERVAL
CONDITIONS:
1) Input signal is 5 vertical divisions with a 2 ns rise time.
2) Measured times are 4 horizontal divisions.
3) T JE is negligible for slew rates greater than O.1/div ns.
4) For all B-Trigger modes, the beginning and end of the measured
interval are visually superimposed.
5) RUN and TRIG accuracies are with RUN AFT OL Y and TRIG AFT OL Y
B-Trigger Modes.
, Selected resolution. See "Resolution Selections' table for
resolutions corresponding to trigger rates with AUTO resolution.
"B-Trigger Modes
2465A/2455A12445A Operators 0-1
